Products > Truck Mounted Crane > Knuckle Boom Crane > K1080

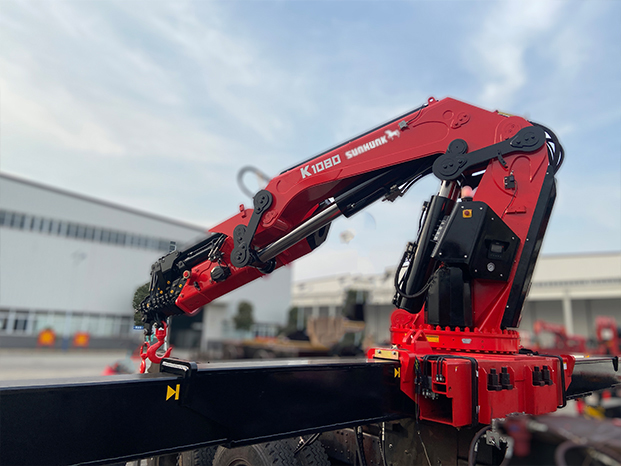

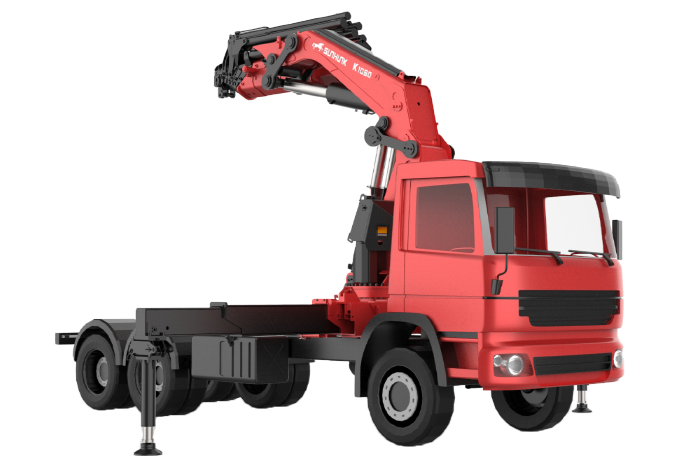

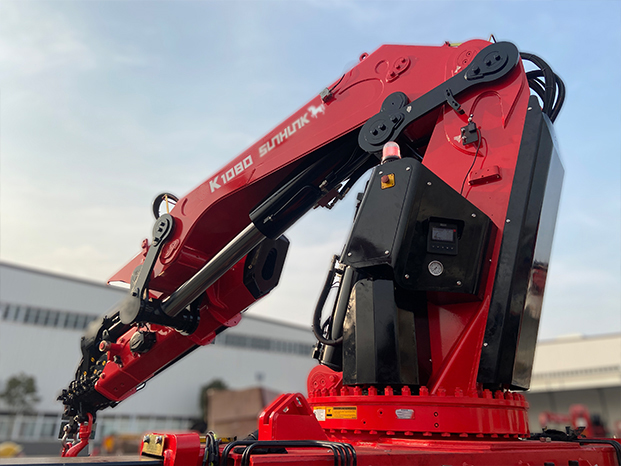

K1080
Knuckle Boom Crane
Max. Lifting Capacity
40000kg
Rated Lifting Moment
108t.m
Max. Working Radius
20.1m
  • Characteristic
  • Parameter
Professional Handling & Industry Customization


1.Equipped with renowned European remote control systems and CAN bus electro-hydraulic proportional valves, achieving world-class control standards with rapid response—ideal for ultra-high-precision lifting operations.


2.Features single-plate bending technology for the boom, ensuring robust and reliable performance.


3.Dual imported slewing reducers provide efficient, stable, and powerful slewing performance.


4.Constructed using high-strength steel, featuring a compact structure and optimized lightweight design.


5.An advanced hydraulic system delivers excellent boom telescoping speed, anti-shake technology, compound movement capability, and proportional control functions.


6.Verified by reliability tests three times stricter than the industry standard, ensuring superior durability.

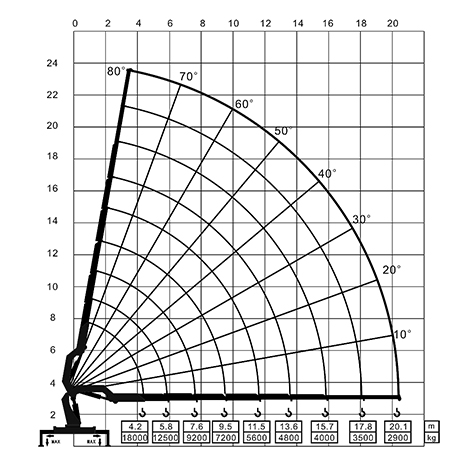

Product Parameters
Key Parameter
Max. Lifting Capacity
Rated Lifting Moment
Max. Working Radius
Max. Lifting Height
Boom Sections
Max. Elevation Angle
Slewing Angle
Outrigger Span
System Flow Rate
Crane Dead Weight
Rated System Pressure
Parameter Value
40000kg
108t.m
20.1m
23.8m
8
77°
Continuous
8570mm
110L/min
9800/9648kg
33
