Fitted with a jib, can your crane take more jobs and boost profits? Can it reach places that were previously out of range?

SUNHUNK Jib Series — FJ30 / FJ40 / FJ60. Help you reach farther, lift heavier loads and broaden your business scope!

SUNHUNK Jib Series

These are the scenarios where our jibs deliver outstanding performance.

Tight space for equipment relocation and positioning inside low-rise workshops? Main boom cannot reach rooftop AC units or solar panels during renovation of old residential buildings?

FJ30: Lightweight & Efficient, the Flexible ChoiceSpecifications: Rated lifting moment 390 kN·m, Max lifting capacity 10031 kg, Max working radius 13.12 m, Luffing angle 21°~193°, Self-weight only 2650 kg. Application scenarios: Municipal engineering, equipment installation, small & medium factory construction, residential renovation, rooftop equipment hoisting.

Scattered working points for bridge inspection, billboard installation and streetlight maintenance? Negative-angle operation required for lowering reinforcement cages and pipelines in deep foundation pits?

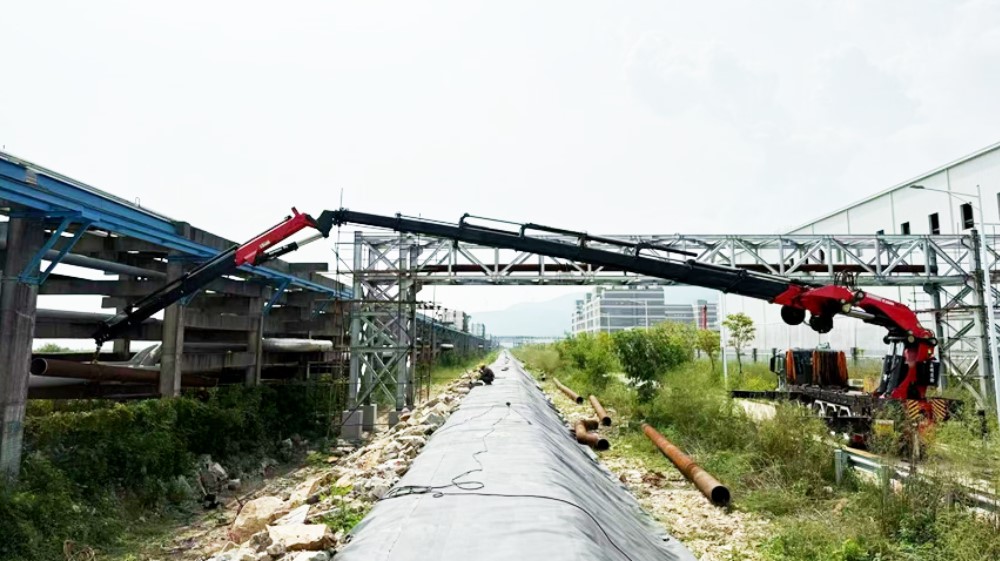

FJ40: Balanced All-Rounder, the WorkhorseSpecifications: Rated lifting moment 500 kN·m, Max lifting capacity 9200 kg, Max working radius 17.42 m, Luffing angle 15°~190°, Self-weight 3600 kg. Application scenarios: Foundation pit hoisting, indoor operation in low workshops, under-bridge inspection, pipeline laying. Supports negative-angle lifting, balancing long reach and heavy load capacity.

Long-distance heavy lifting for large infrastructure, high-rise facade maintenance and heavy equipment handling at ports? This heavy-duty jib is your solid solution.

FJ60: Heavy-Duty Long Jib, Flagship ModelSpecifications: Rated lifting moment 600 kN·m, Max lifting capacity 15000 kg, Max working radius 23.4 m, Luffing angle 15°~195°, Self-weight 5700 kg. Application scenarios: Large-scale infrastructure, high-rise building maintenance, long-distance heavy equipment hoisting, wind power maintenance, port logistics. An extra 23.4 m reach; the main boom plus jib covers a wider working envelope.

Solid Technical Strength

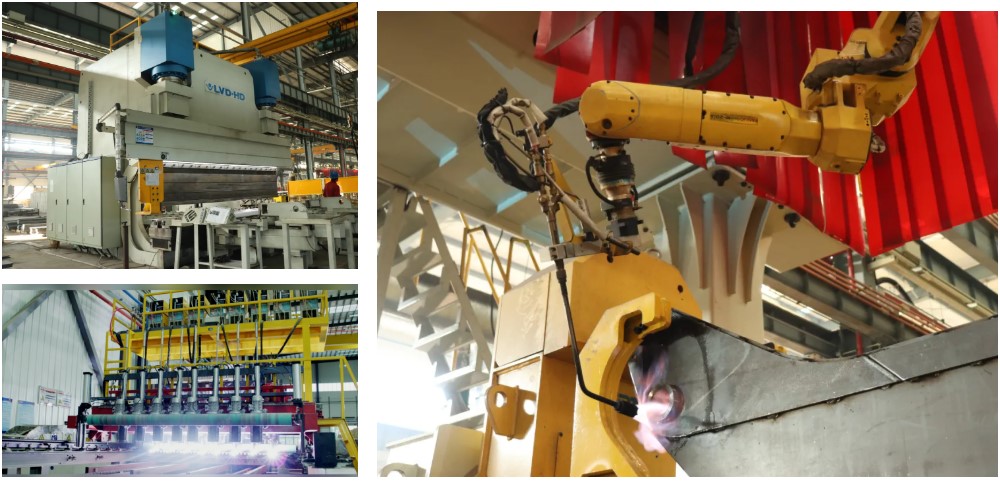

Hexagonal single-plate bending technology with only one weld seam on the whole plate for robust structure; high-strength steel adopted to reduce self-weight and improve net lifting capacity; standard load moment limiter for real-time monitoring to guarantee safety; four-link luffing mechanism for smooth and stable movements; quick-fit design, no auxiliary equipment needed for fast relocation.

SUNHUNK truck-mounted crane: Fast operation, stable lifting!

You are welcome to visit the SUNHUNK booth at bauma CHINA for on-site demonstration!

A sneak peek: SUNHUNK will launch a brand-new jib-equipped model making its world premiere at this bauma CHINA in Shanghai!

How big is it? How powerful is it? Which models and working conditions is it compatible with?

Stay tuned! We will bring you the latest release, live coverage and technical details as soon as available!
