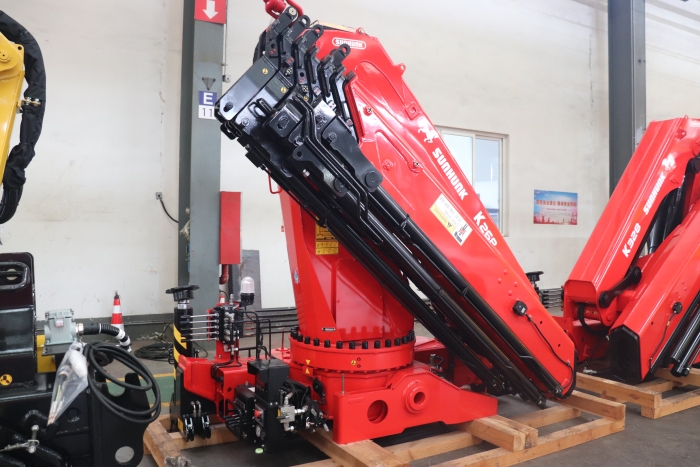

K268 — The Versatile Performer for Urban and Rural Applications

• Rated lifting moment: 23.8 t·m

• Maximum lifting capacity: 11,000 kg (optional 4‑section or 6‑section boom)

• Maximum lifting height: 20.6 m (6‑section boom configuration)

• Operating weight: approximately 4 tons, compatible with mainstream truck chassis in Central AmericaPerformance Advantages:

• Compact and Flexible: Featuring a knuckle‑boom structure, it enables extensive operation in confined spaces.

  With a maximum elevation angle of 85° and continuous rotation, it easily adapts to complex working conditions.

• Multi‑Functional: Compatible with a wide range of attachments including grapples and clamps,

  serving construction, farm loading and other scenarios — achieving true multi‑purpose capability.

• High Reliability: Key hydraulic components sourced from international brands.

  Operating pressure: 30 MPa, system flow: 50 L/min, ensuring smooth and durable performance.

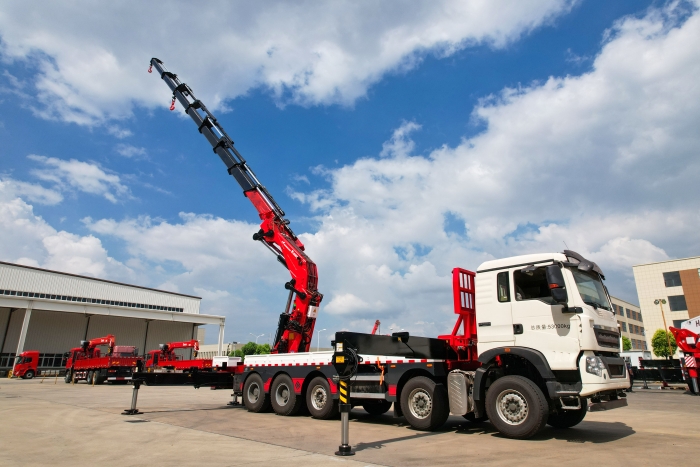

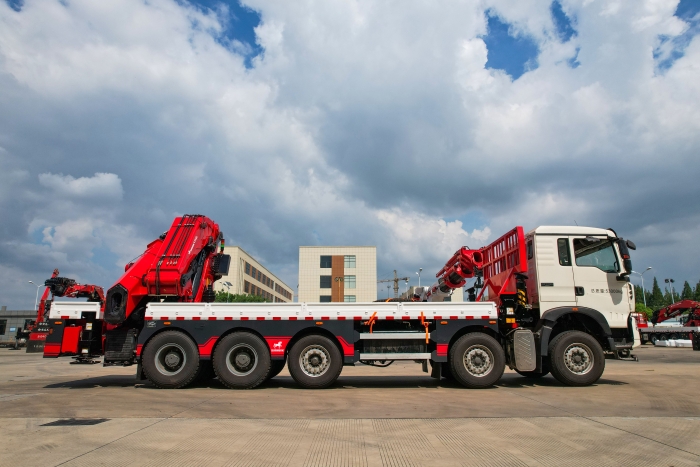

K1680 — The Robust Solution for Large‑Scale Infrastructure Projects

• Rated lifting moment: 120 t·m

• Maximum lifting capacity: 30,000 kg

• 8‑section main boom, maximum boom length: 18.5 m

• Maximum lifting height: 22.2 m

• Operating weight: 14.5 tons

• Dual‑Pump Combined Flow Technology: System flow reaches up to 115+50 L/min,enabling fast operation under light loads and stable performance under heavy loads, significantly improving efficiency.

• Extra‑Wide Outrigger Span: Outrigger span of 8180 mm with K‑type outrigger design ensures exceptional stability even under long‑reach and heavy‑load lifting.

• European Design Philosophy: Structure optimized via finite element analysis,with a high proportion of high‑strength steel.

• It achieves lightweight design while maintaining structural strength, enhancing driving safety.

Quality and Service — Remote Support

• Strict Pre‑Delivery Testing: Every unit undergoes 72 consecutive hours of full‑load commissioning

  to guarantee stable performance of core components.

• Remote Expert Diagnosis: A dedicated Spanish‑speaking service team provides 24/7 online guidance

  via WhatsApp and WeChat video.

  Up to 80% of common issues can be resolved remotely.
