Products > Refrigerated Truck > Medium & heavy duty > Meat-hanging

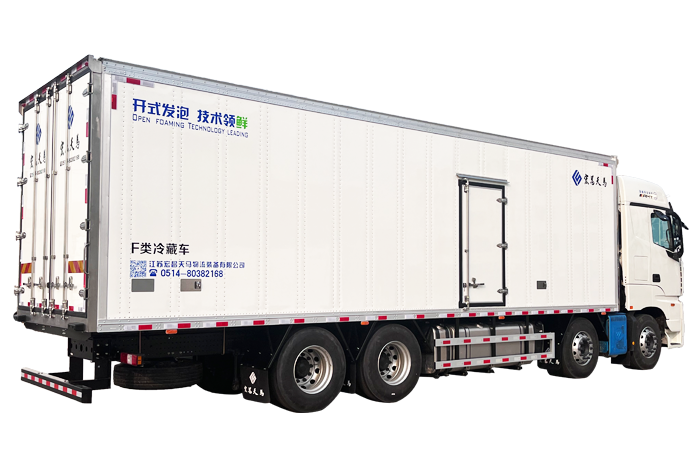

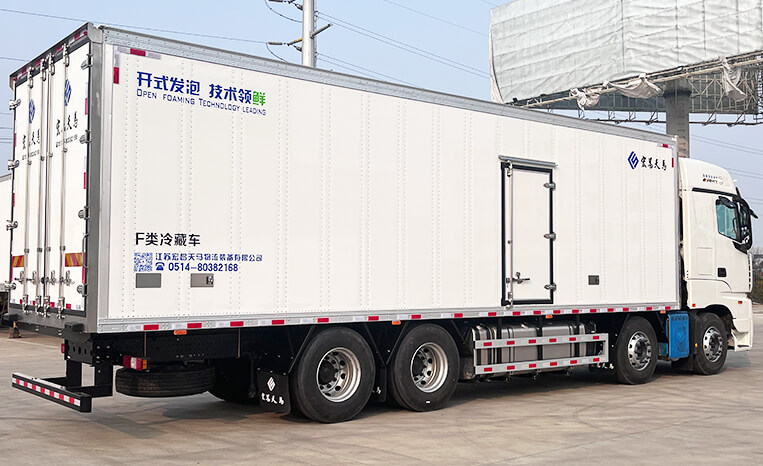

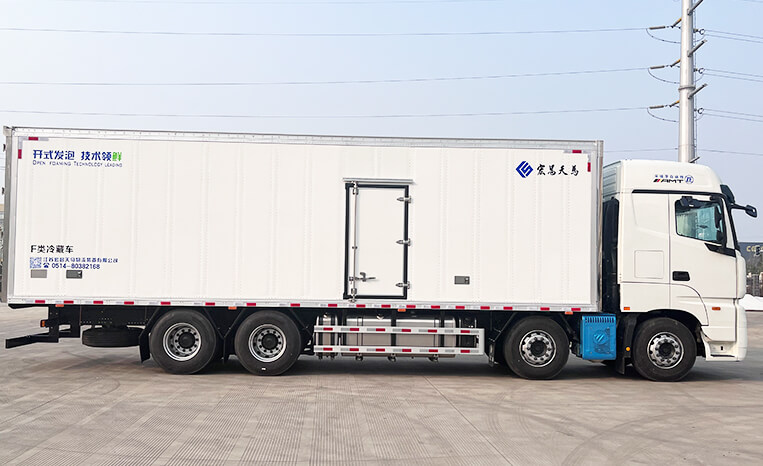

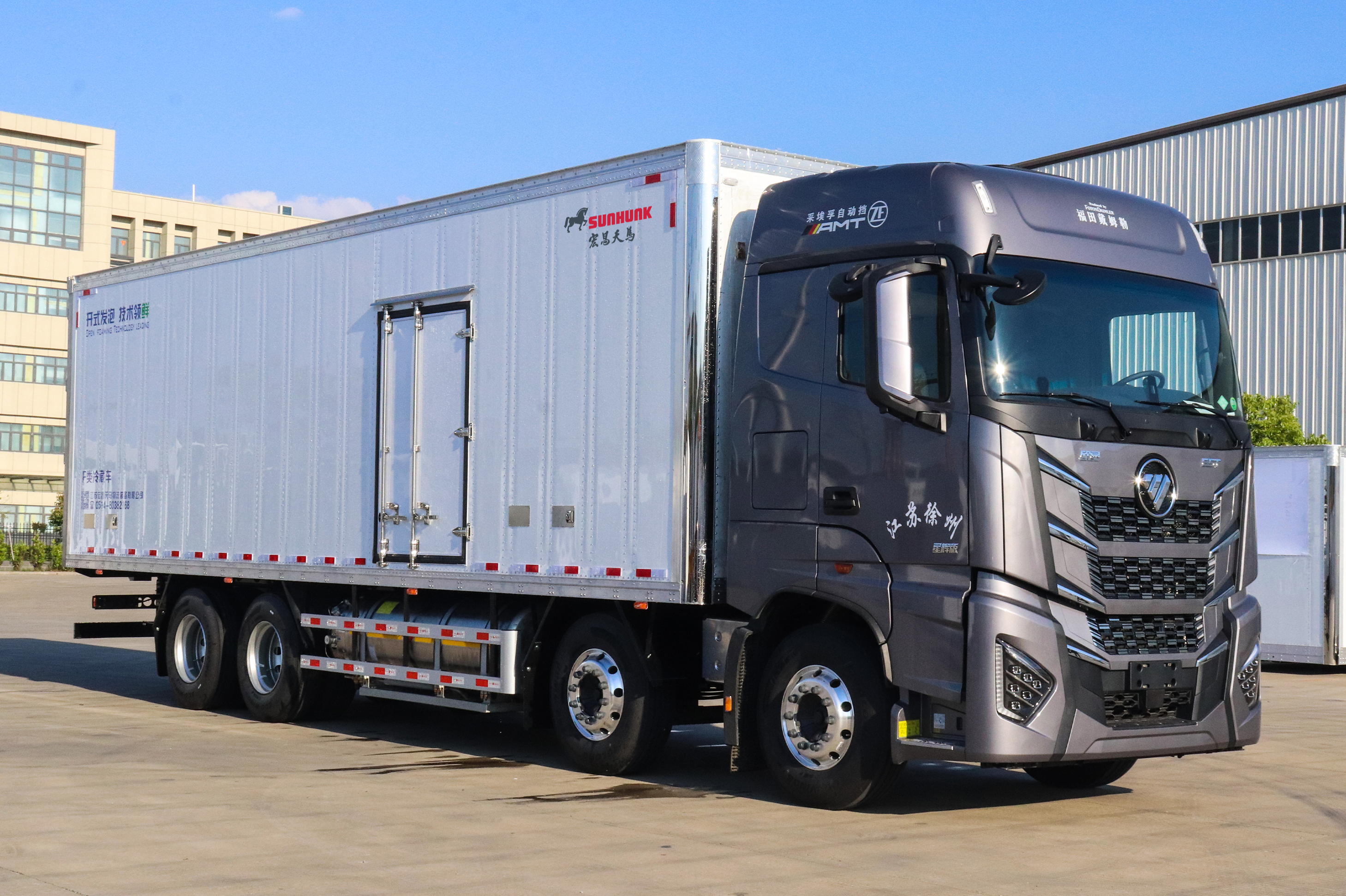

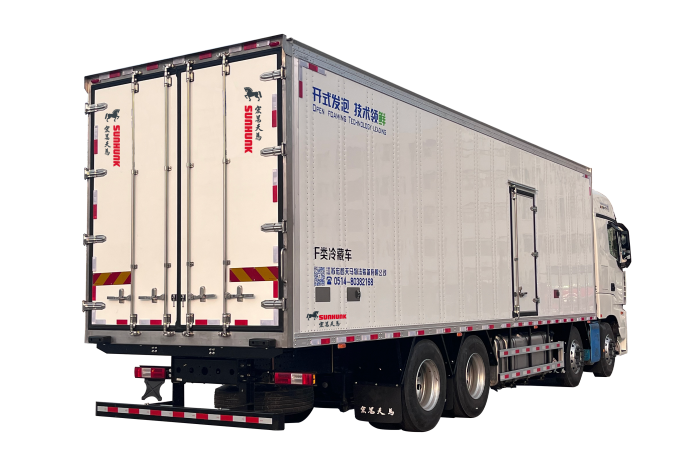

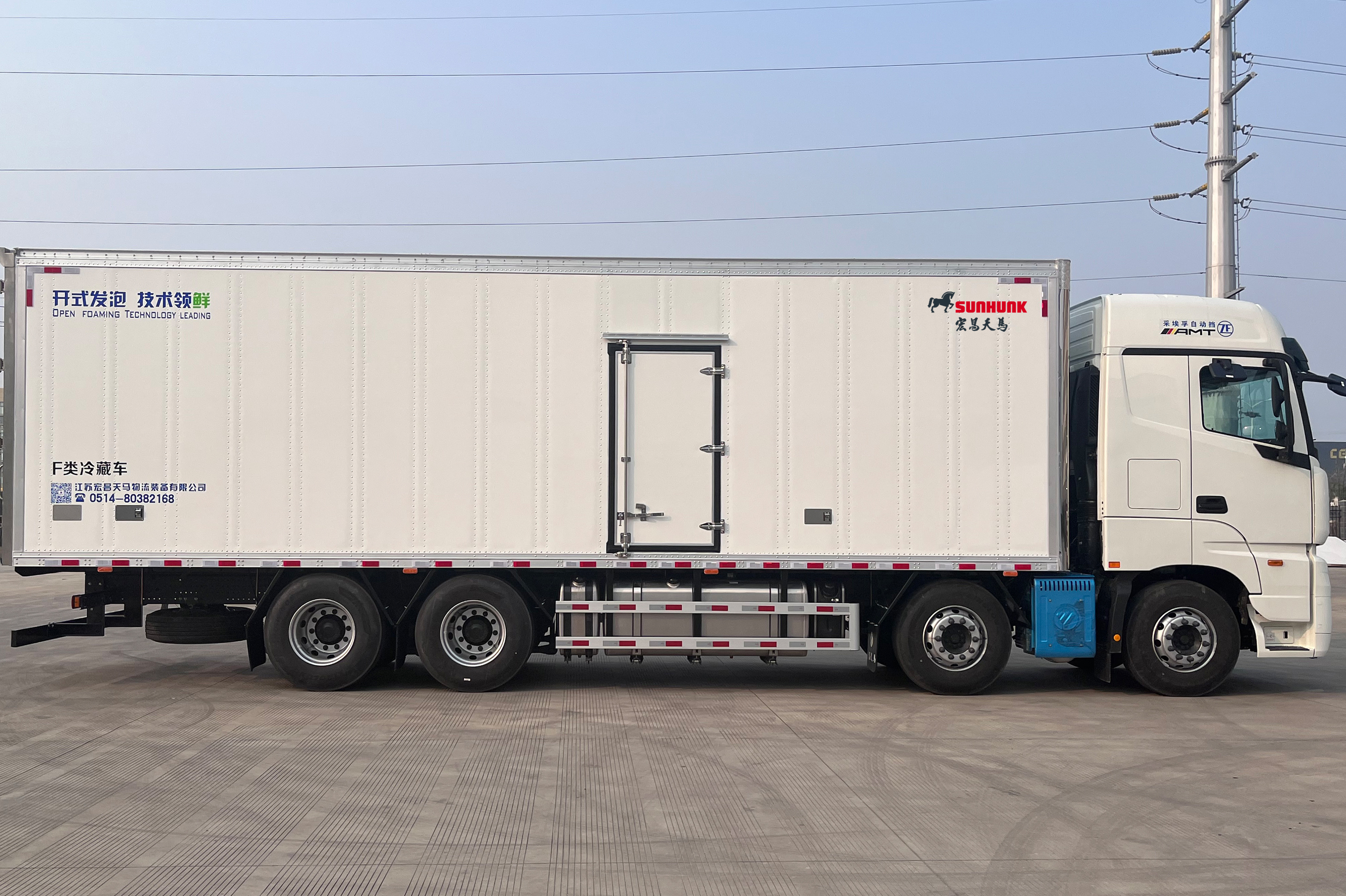

Meat-hanging
Medium & heavy duty
Process Standard
Foaming Process
Inner/Outer Skin Material
Food-grade Thermoplastic/Pre-painted Metallic Sheet
Insulation Material
Polyurethane
Applicable Working Conditions
  • Characteristic
  • Parameter
High Insulation

Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

High Strength

The body structure adopts a riveting process, and the inside of the compartment plate adopts a steel frame loading structure with high tensile strength. The floor uses a T6-level high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

High Aesthetics

Using pre-painted metal panels, the overall appearance is bright and upscale, improving corporate image.

Lightweighting

The body weight of the container is more than 500 kg lighter than a steel box, helping to carry more goods or save fuel.

Cold Air Circulation

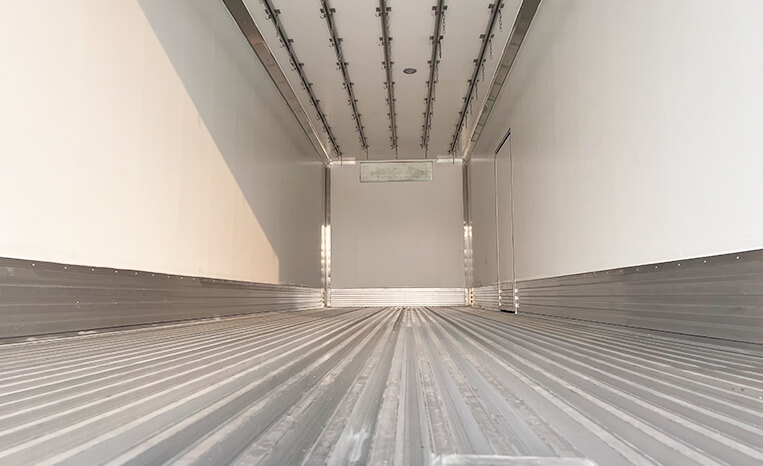

The floor uses a Great Wall-type ventilation guide rail, in combination with vertical ventilation slots on the side plates and ventilation bars on the door panels, for efficient air circulation inside the container and uniform temperature distribution, safer for transporting fruits, vegetables, and flowers.

Product Parameters
Key Parameter
Process Standard
Inner/Outer Skin Material
Insulation Material
Vehicle Standard
Insulation Panel Top (mm)
Insulation Panel Sides (mm)
Insulation Panel Front (mm)
Insulation Panel Back (mm)
Insulation Panel Bottom (mm)
Outer Skin
Bottom Skin Material
Bottom Sub-frame
Bottom Drainage Hole
Rear Door Frame and Hardware
Wear Plate
Floor Configuration
Medical Curtain
Medical Ventilation Structure

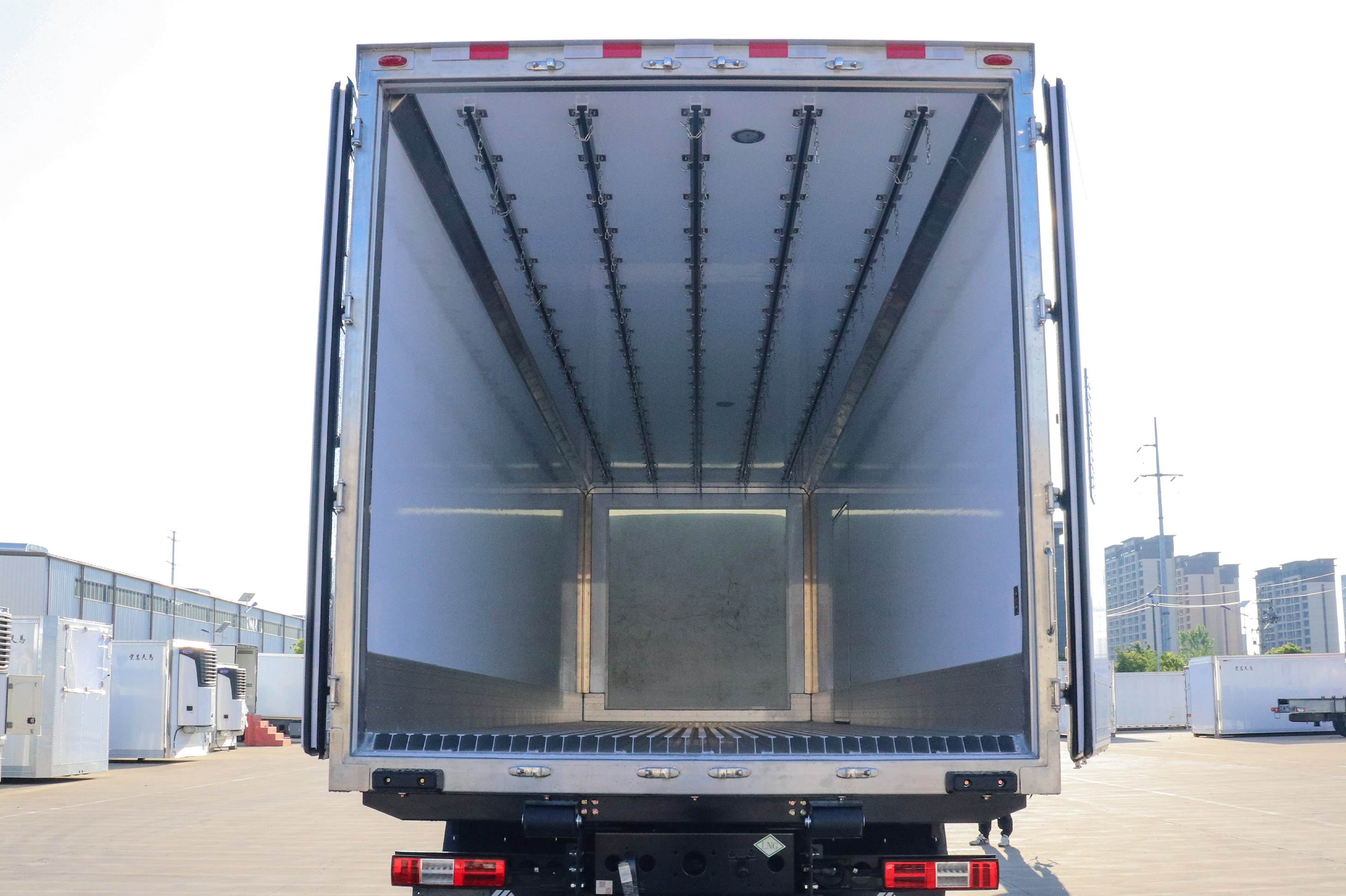

Meat Sliding Track
Seafood Pre- embedding
Parameter Value
Foaming Process
Food-grade Thermoplastic/Pre-painted Metallic Sheet
Polyurethane
refrigerated truck for hanging meat
100
80
80
80
115 (including 35mm Castle-Type Aluminum Guide)
Pre-painted Aluminum Sheet
Thermoplastic Sheet
 High-Strength Steel
SUNHUNK Standard Configuration, 2 at the Front or 2 at Both Ends
304 Stainless Steel
High-Strength Aluminum Profile (Approximately 300mm High)
Castle-Type Aluminum Guide (Approximately 35mm)
empty
empty
Five Sliding Track
empty
