Products > Truck Mounted Crane > High Performance Crane > H3480

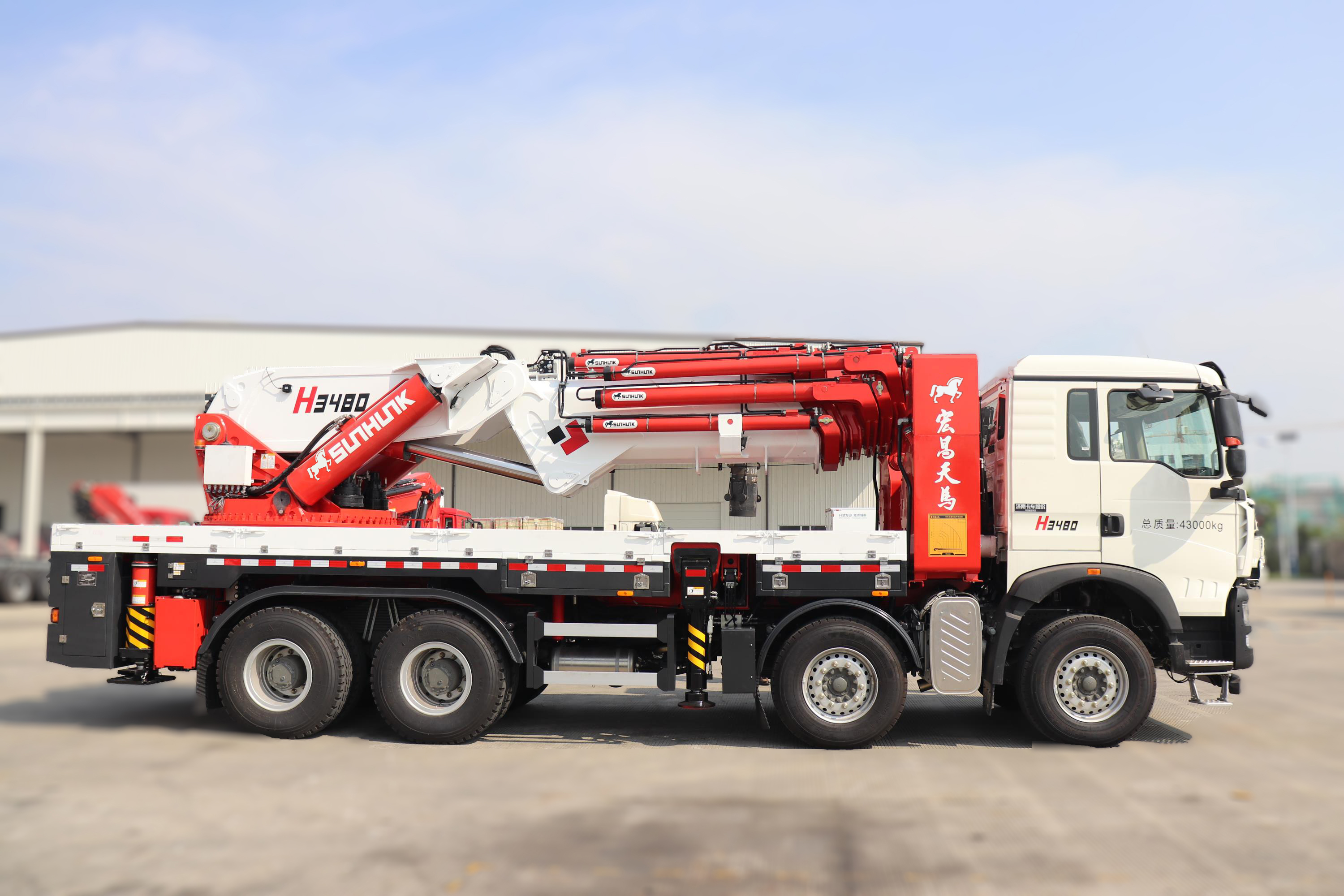

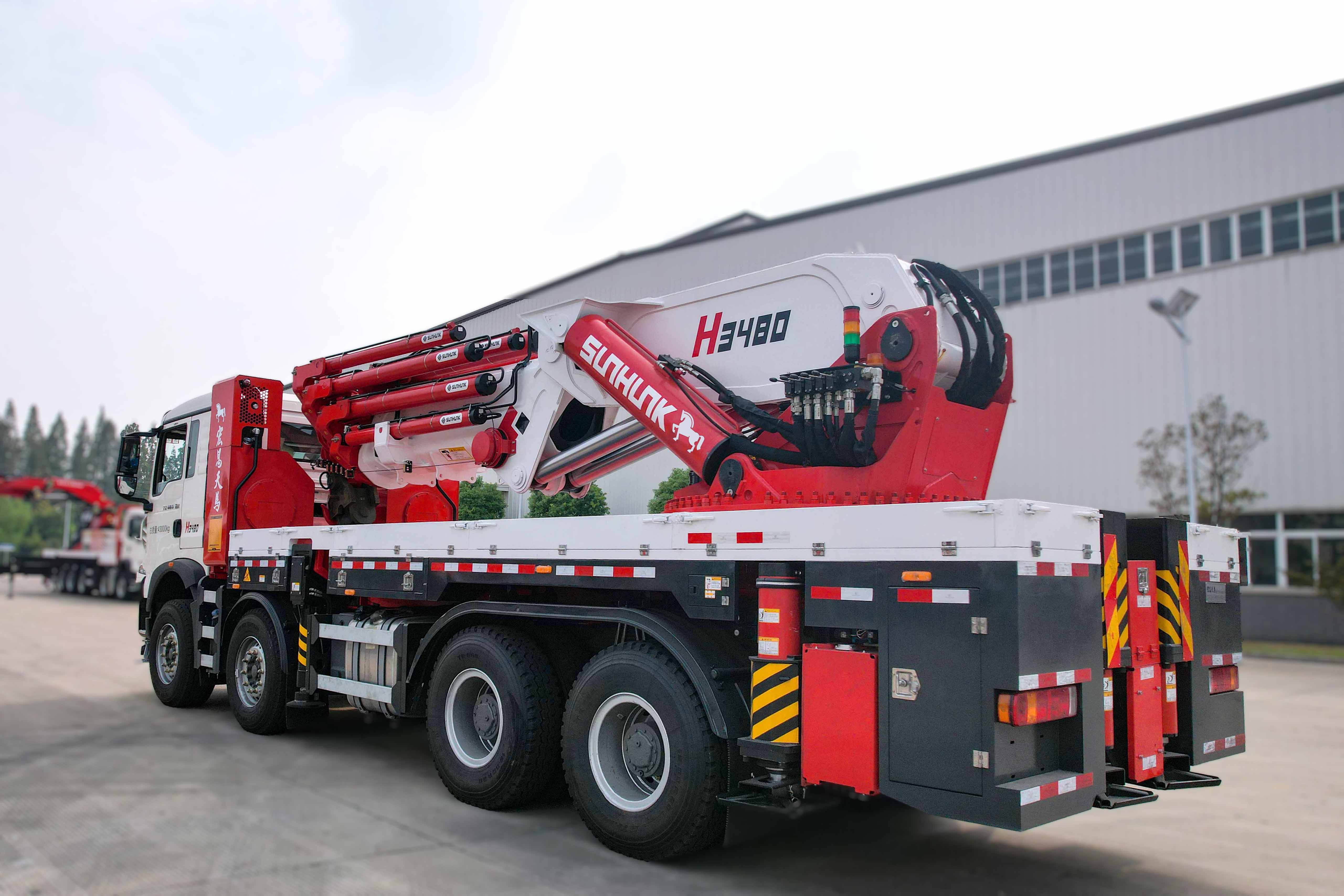

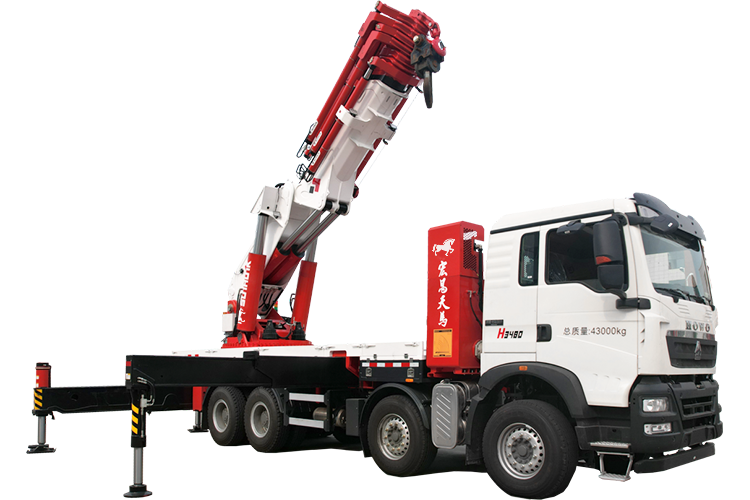

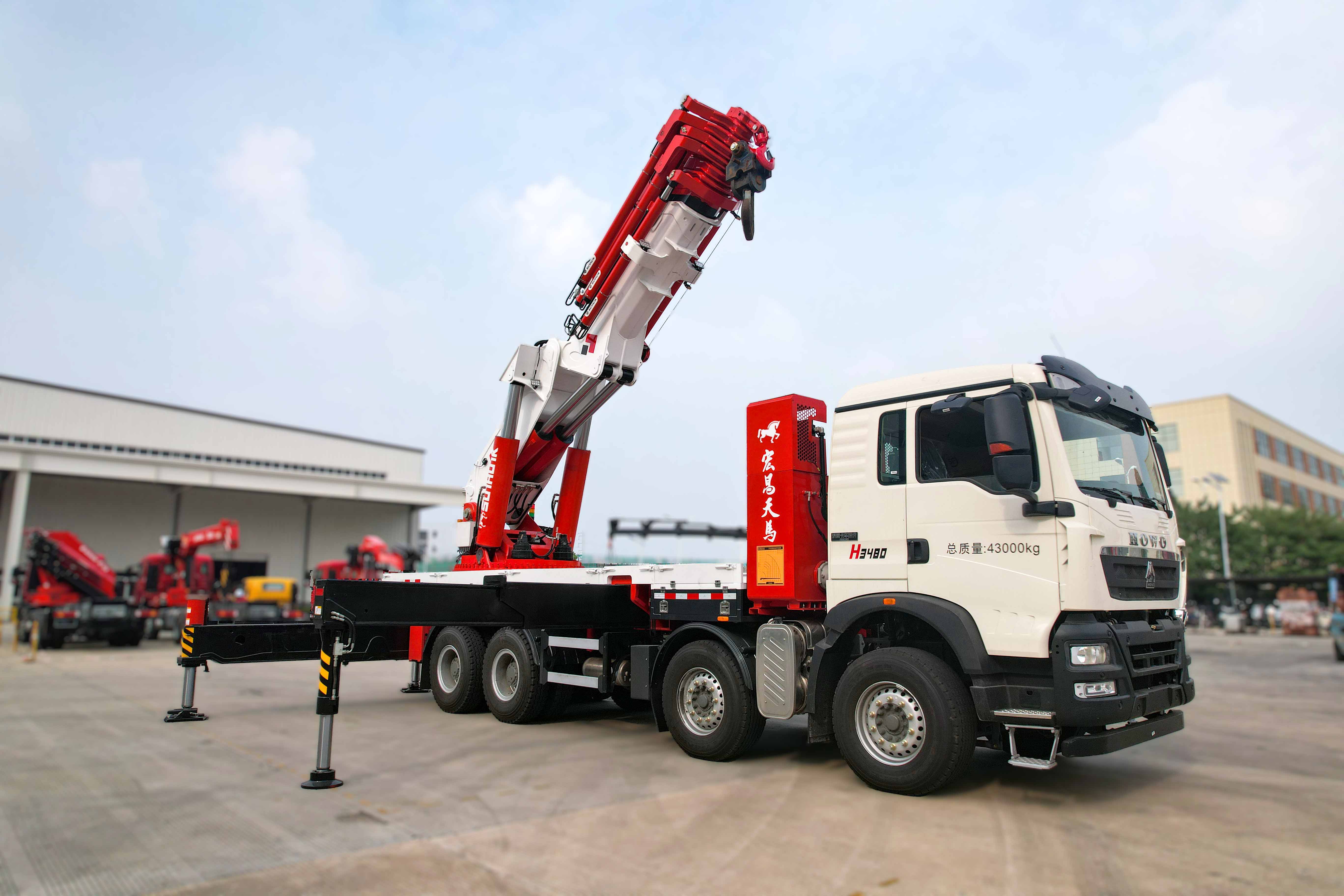

H3480
High Performance Crane
Rated load
80000
Rated lifting capacity
348
Max. working range
21.3
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
Hongchang Tianma has the shortest wheelbase and largest tonnage

1. High quality hydraulic key components enhance product competitiveness;


2. Multiple optional configurations (winch, adjustable goose head arm, manual arm) to

meet personalized customization needs;


3. Compact structure, using high-strength steel, lighter weight of the whole machine;


4. The entire vehicle is equipped with electronic control operation, and the wireless

remote control system is standard for getting on and off the vehicle, making the operation more convenient;



5. Equipped with large-span dual stage hydraulic telescopic support legs as standard, ensuring operational stability;

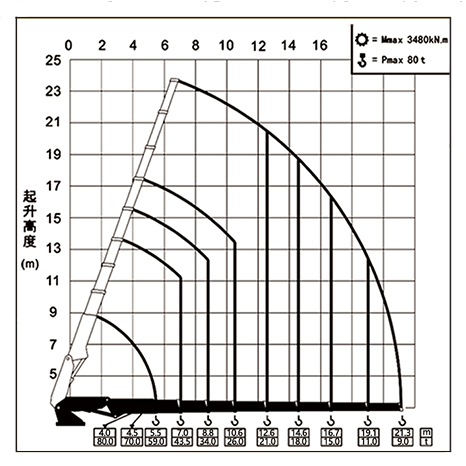

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
80000
348
21.3
23.8
8
75
360
8190/7858
115+50
44000(整车)
33
Engineering Cases
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library, the glass is 15*2.6 meters and weighs 12 tons. It needs to be lifted up from the side and then rotated to transport the glass to a height of 22.3 meters. The super-long boom and remote control precise operation perfectly fit the installation of the library glass. Before using the SUNHUNK 4500 and 6680, four 15-meter by 4-meter glass panes were lifted with two truck cranes. Only one glass could be lifted per day, which was unsafe. However, after using these two machines, work efficiency was greatly improved, and the safety factor was also increased.
Narrow Cave Rescue
Narrow Cave Rescue
In a narrow cave rescue operation, a truck crane is unable to enter the narrow entrance of the cave to carry out the rescue operation. The SUNHUNK 4500, with a height of only 3.5 meters and powerful lifting capacity, is capable of easily completing the rescue mission in this situation.
Workshop crane installation
Workshop crane installation
In a workshop crane installation, due to the limited height of the workshop, a truck crane is unable to lift the load. The owner then arranges two large-tonnage SUNHUNK cranes to work together and complete this lifting task.
Installation of 800-ton Pressing Machine
Installation of 800-ton Pressing Machine
Due to limited space in the workshop and the precise positioning required for the installation of the equipment, the SUNHUNK  large-tonnage crane successfully completed the lifting task with its powerful lifting capacity and excellent precision operation.
