Products > Truck Mounted Crane > High Performance Crane > H3880

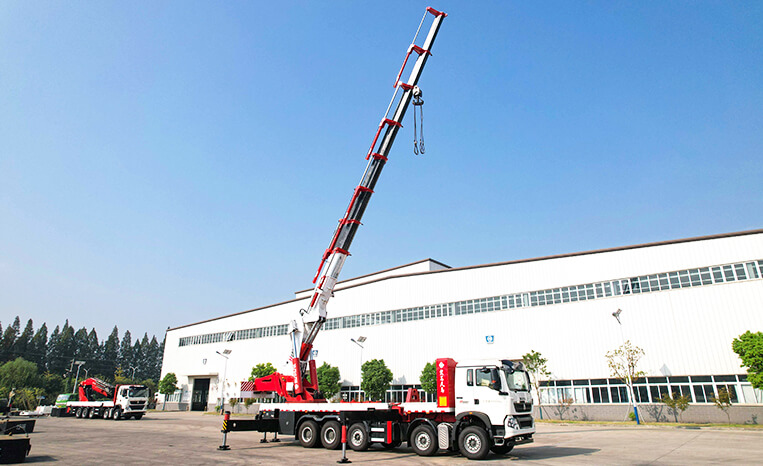

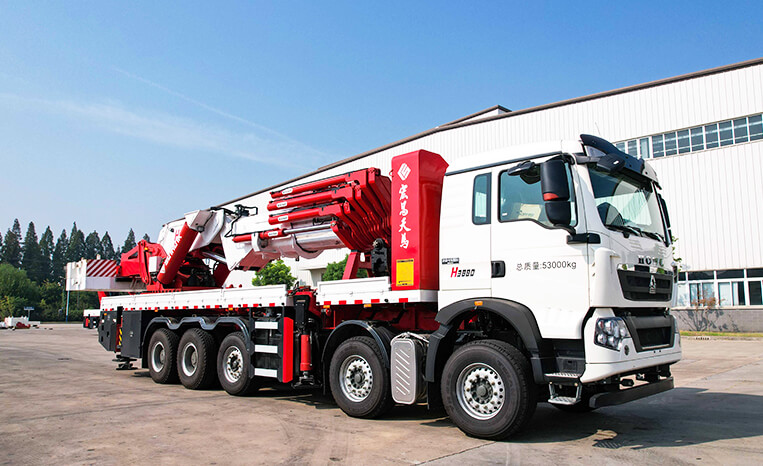

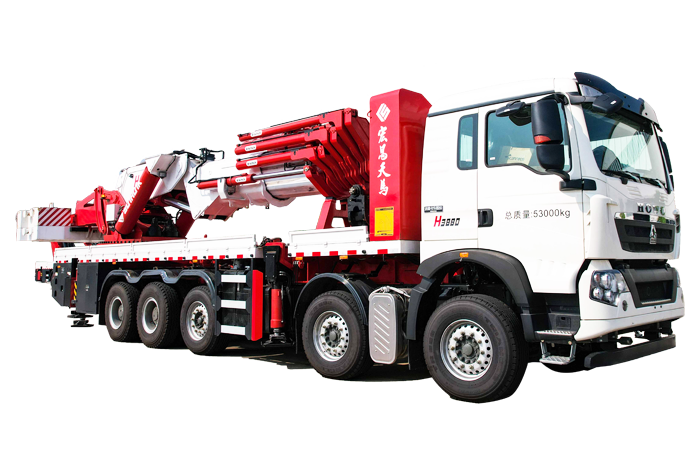

H3880
High Performance Crane
Rated load（kg）
90000
Rated lifting capacity（t.m）
388
Max. working range（m）
19.6
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
产品优势


1、轴荷、总重符合新法规要求，行驶成本经济；


2、3.55m最低行驶高度，轻松进入老旧厂房；


3、最多选配到十节伸缩臂，满足大幅度作业需求；


4、标配无线遥控支腿操纵，作业更加便利;


5、具备自主知识产权的智能化安全控制系统，扩展性更广：全车遥控、超载保护、防倾翻、负载称重……

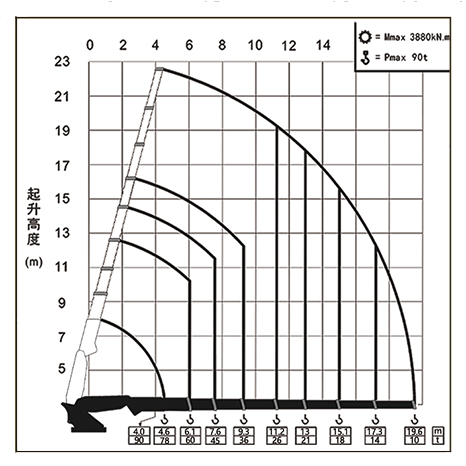

Product Parameters
Key Parameter
Rated load（kg）
Rated lifting capacity（t.m）
Max. working range（m）
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
90000
388
19.6
22.7
8
75
360
8170/7840
115+50
53000(整车)
33
Engineering Cases
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library, the glass is 15*2.6 meters and weighs 12 tons. It needs to be lifted up from the side and then rotated to transport the glass to a height of 22.3 meters. The super-long boom and remote control precise operation perfectly fit the installation of the library glass. Before using the SUNHUNK 4500 and 6680, four 15-meter by 4-meter glass panes were lifted with two truck cranes. Only one glass could be lifted per day, which was unsafe. However, after using these two machines, work efficiency was greatly improved, and the safety factor was also increased.
Narrow Cave Rescue
Narrow Cave Rescue
In a narrow cave rescue operation, a truck crane is unable to enter the narrow entrance of the cave to carry out the rescue operation. The SUNHUNK 4500, with a height of only 3.5 meters and powerful lifting capacity, is capable of easily completing the rescue mission in this situation.
Workshop crane installation
Workshop crane installation
In a workshop crane installation, due to the limited height of the workshop, a truck crane is unable to lift the load. The owner then arranges two large-tonnage SUNHUNK cranes to work together and complete this lifting task.
Installation of 800-ton Pressing Machine
Installation of 800-ton Pressing Machine
Due to limited space in the workshop and the precise positioning required for the installation of the equipment, the SUNHUNK  large-tonnage crane successfully completed the lifting task with its powerful lifting capacity and excellent precision operation.
