Products > Truck Mounted Crane > Stiff Boom Crane > S1804

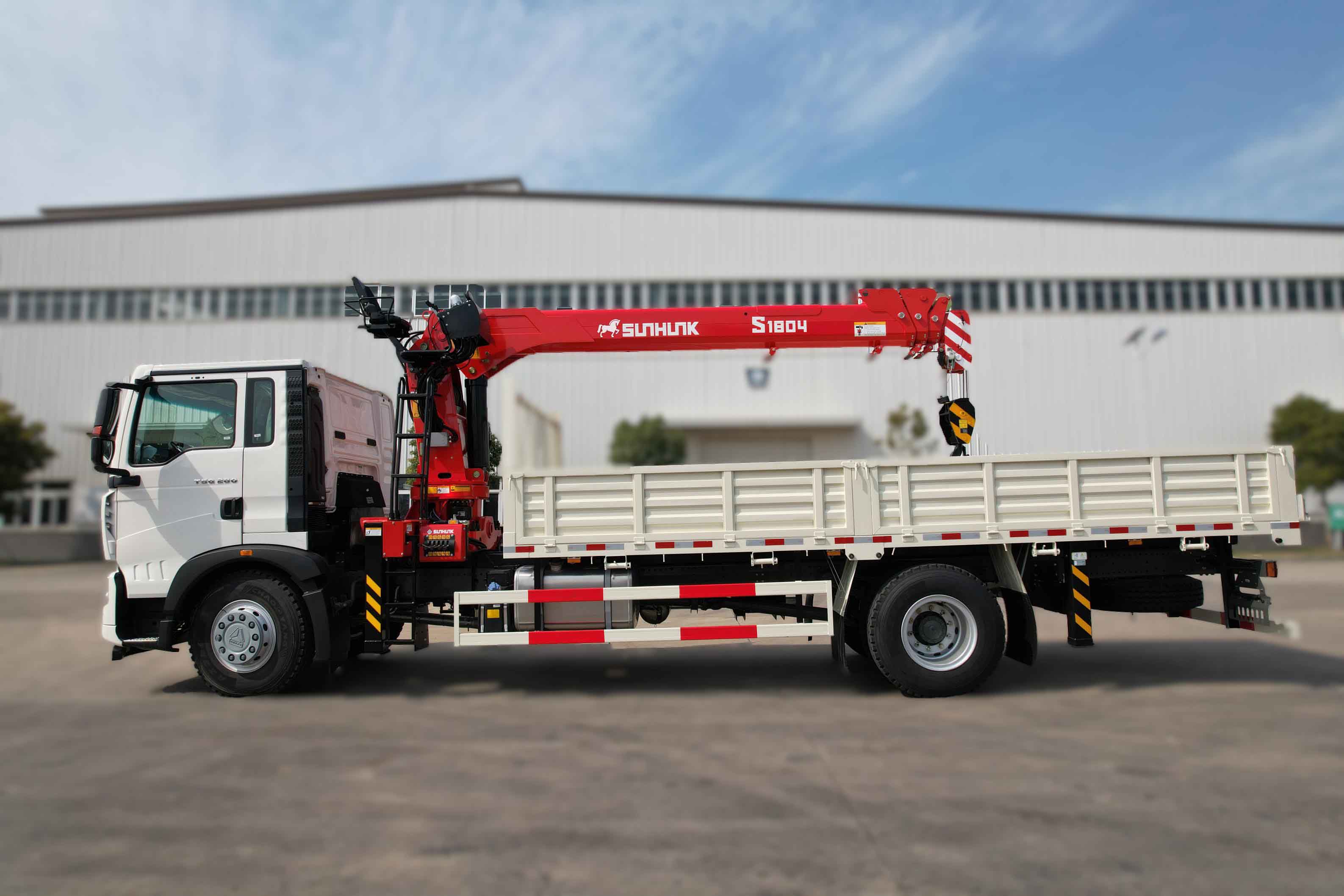

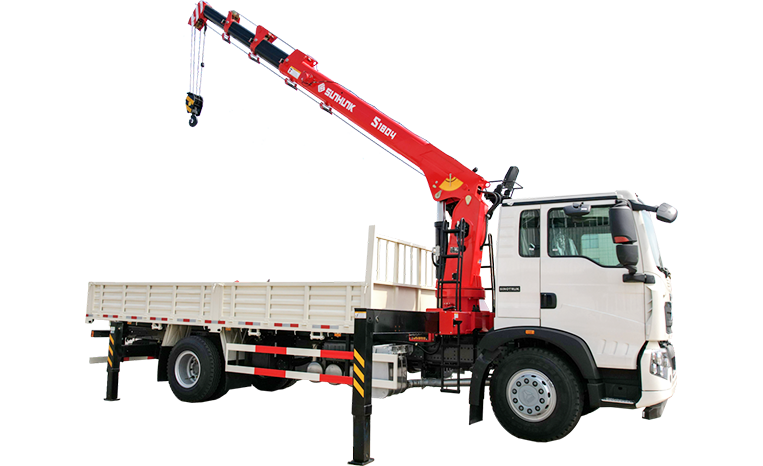

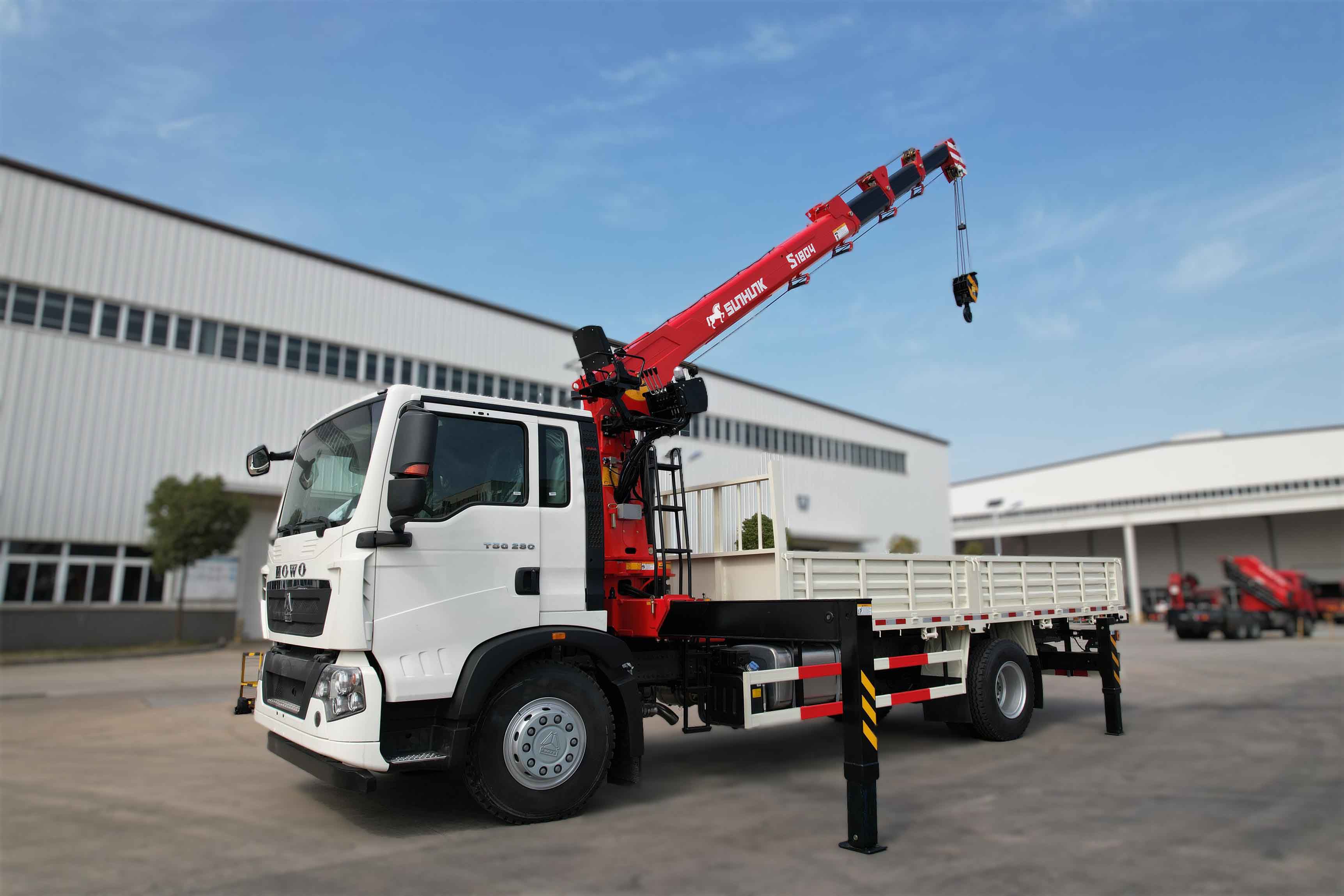

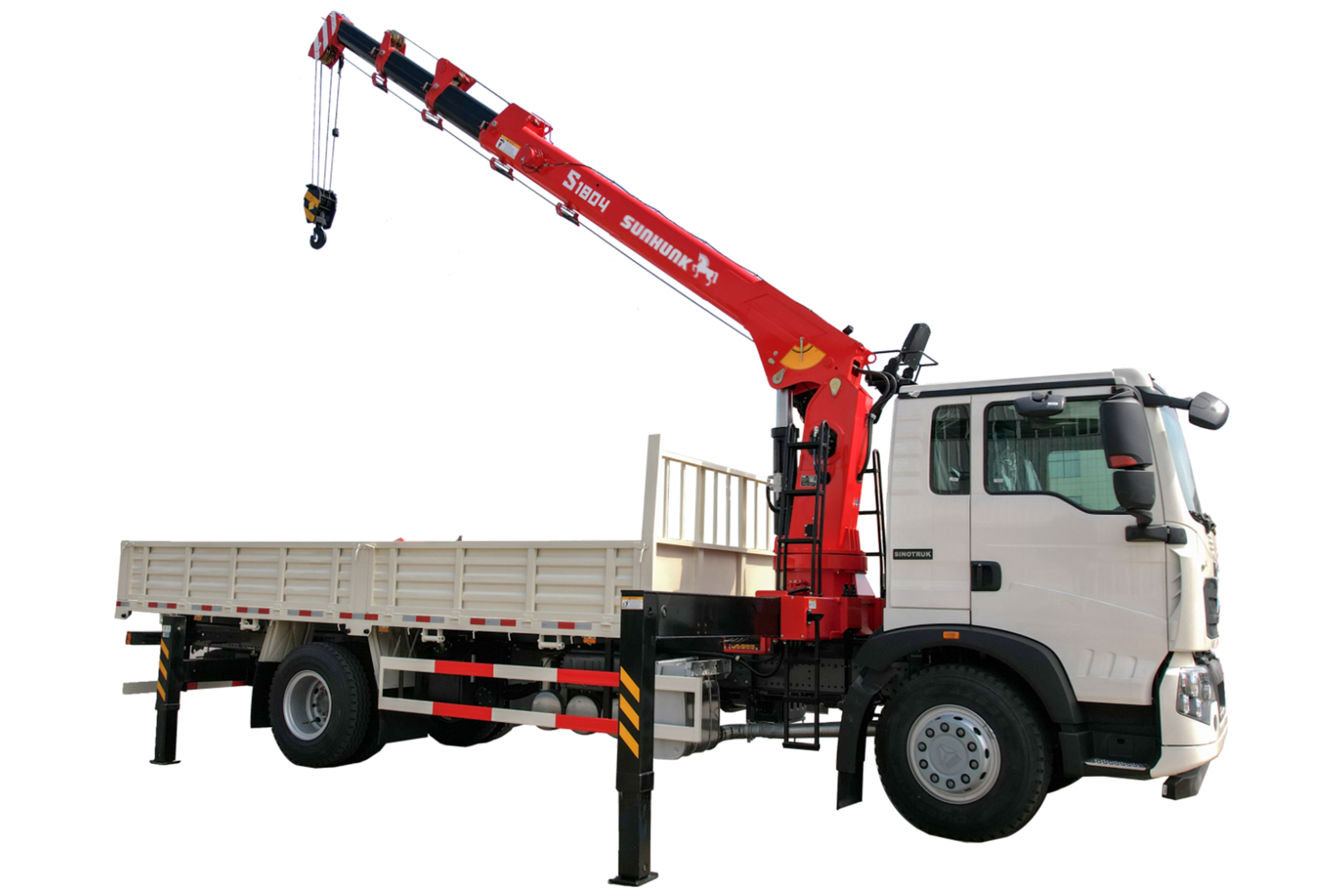

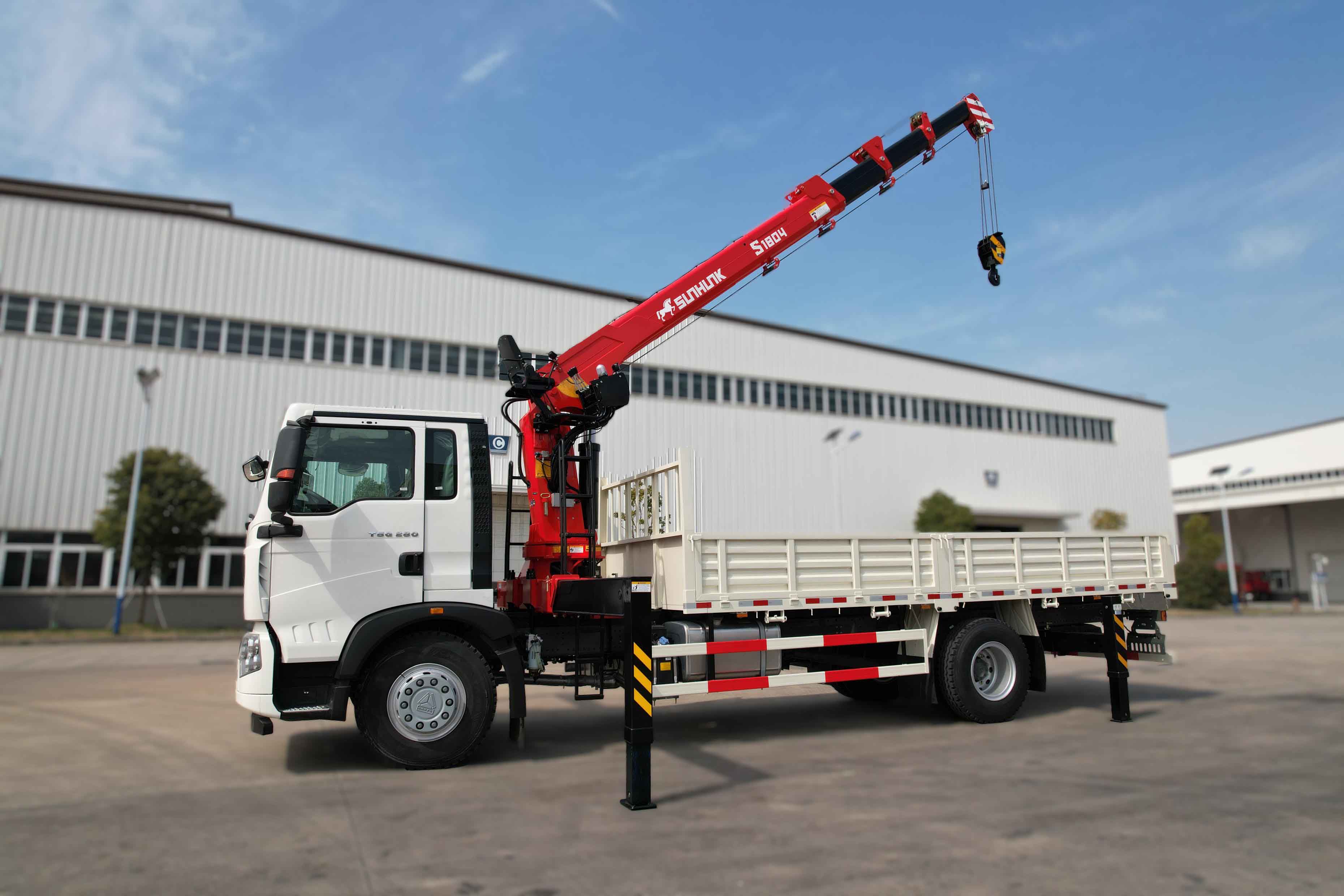

S1804
Stiff Boom Crane
Rated load
7200kg
Rated lifting capacity
18t.m

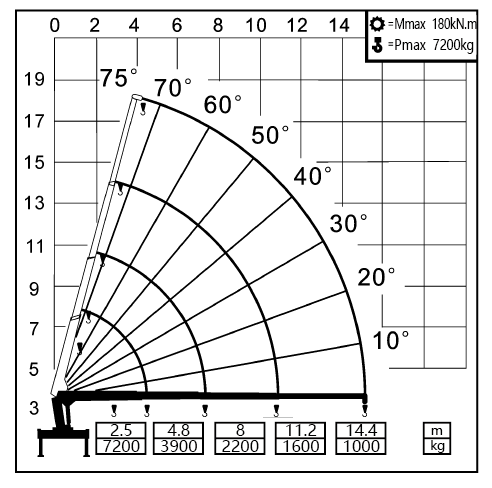

Max. working range
14.6m
  • Characteristic
  • Parameter
  • Case
Expert in Seedling Transportation


♦ The key structural components are made of Q690D high-strength steel plate through welding, providing high strength and light weight.


♦ The octagon boom is designed with finite element analysis for strength, balancing lightweight and strength.


♦ The full extension length of the boom is 14.6 meters, surpassing other small-tonnage four-section boom products of the same class in terms of total length.


♦ The fully retracted length of the boom is 5 meters, suitable for 4x2 chassis with different wheelbases.


♦ The maximum leg span is 6 meters, leading other small-tonnage products of the same class.

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
7200kg
18t.m
14.6m
17
4
75
360
6000
64
3100
28
