Products > Truck Mounted Crane > Stiff Boom Crane > S2005

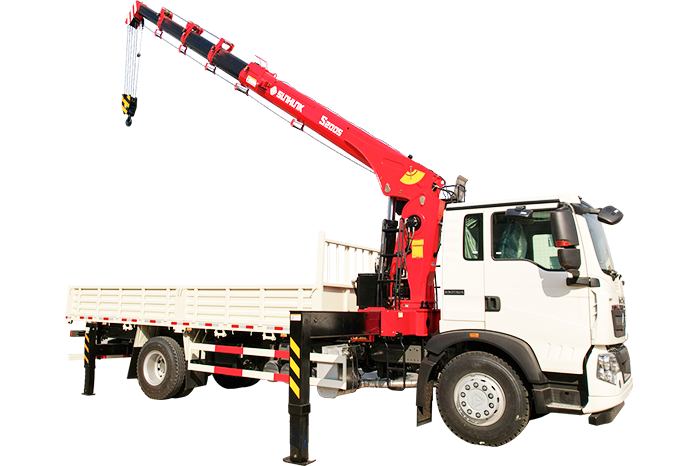

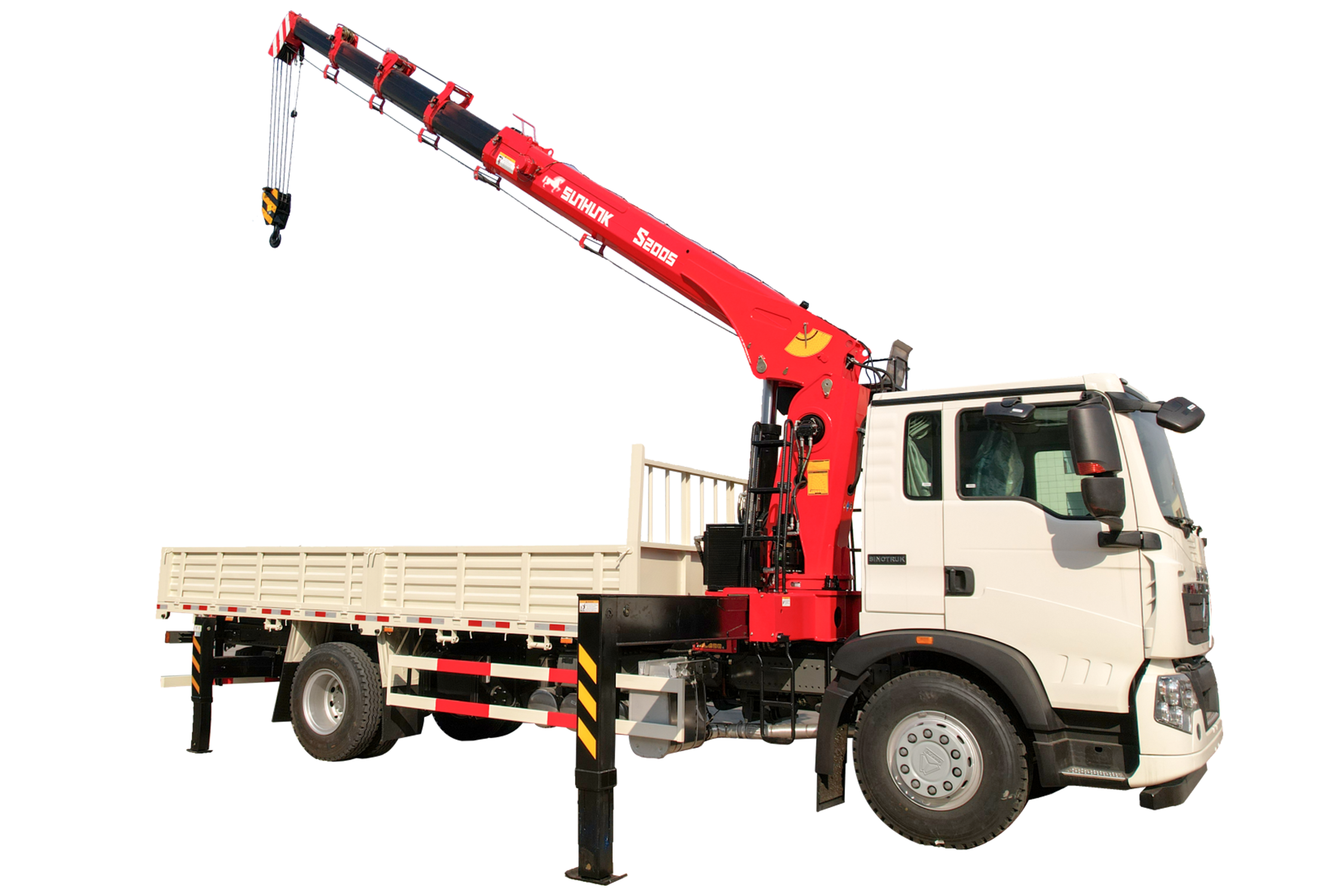

S2005
Stiff Boom Crane
Rated load
8000kg
Rated lifting capacity
20t.m
Max. working range
17.1m
  • Characteristic
  • Parameter

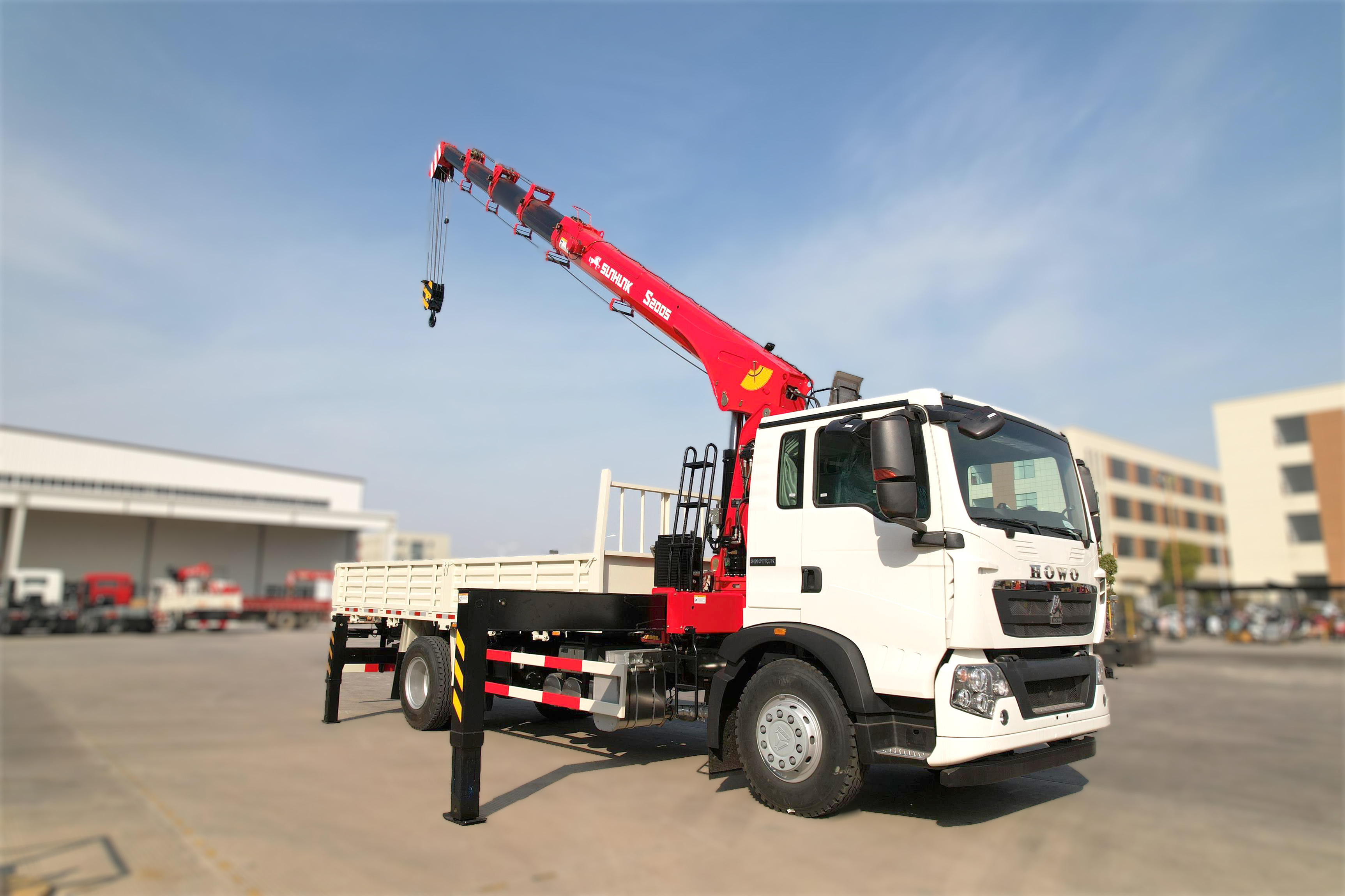

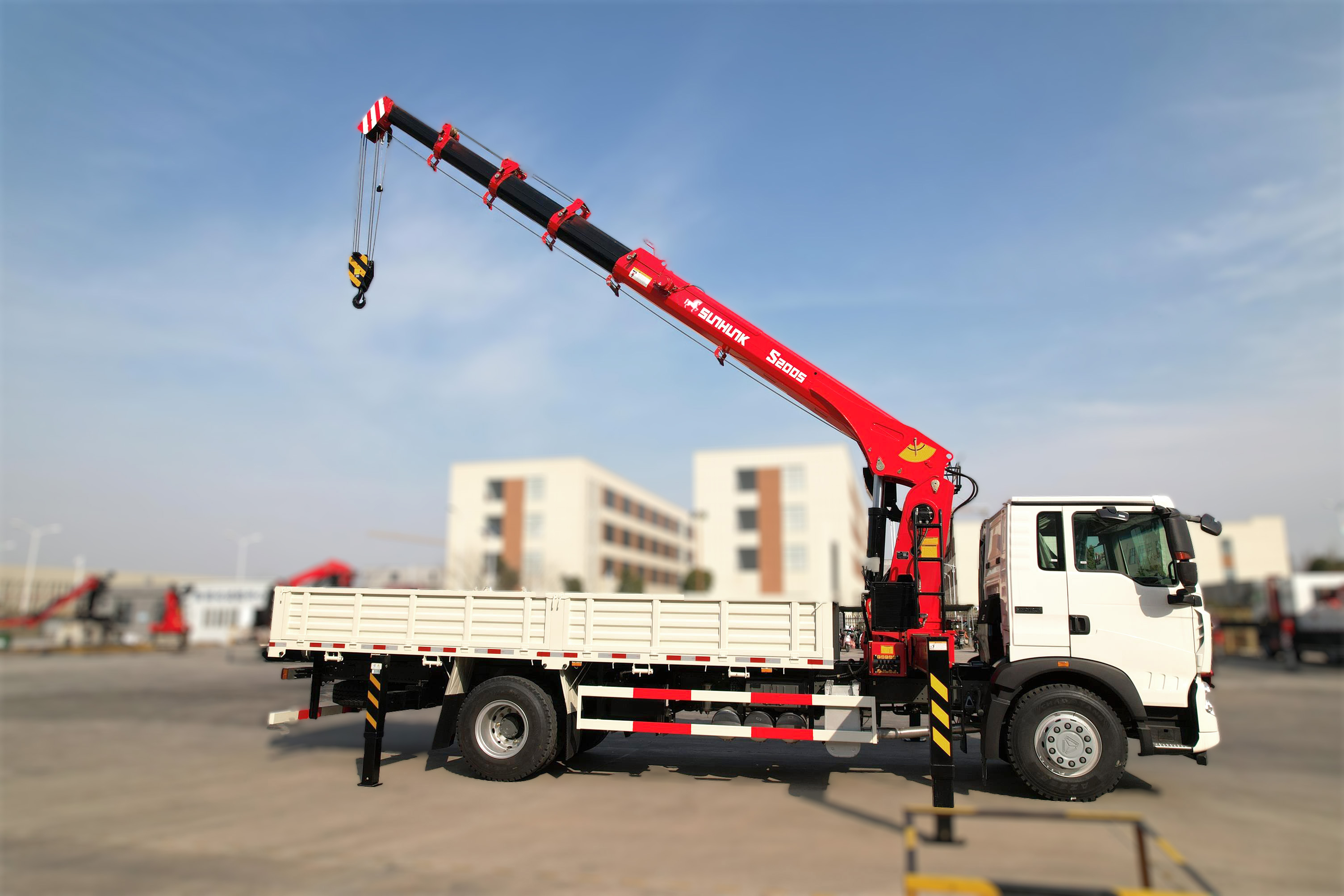

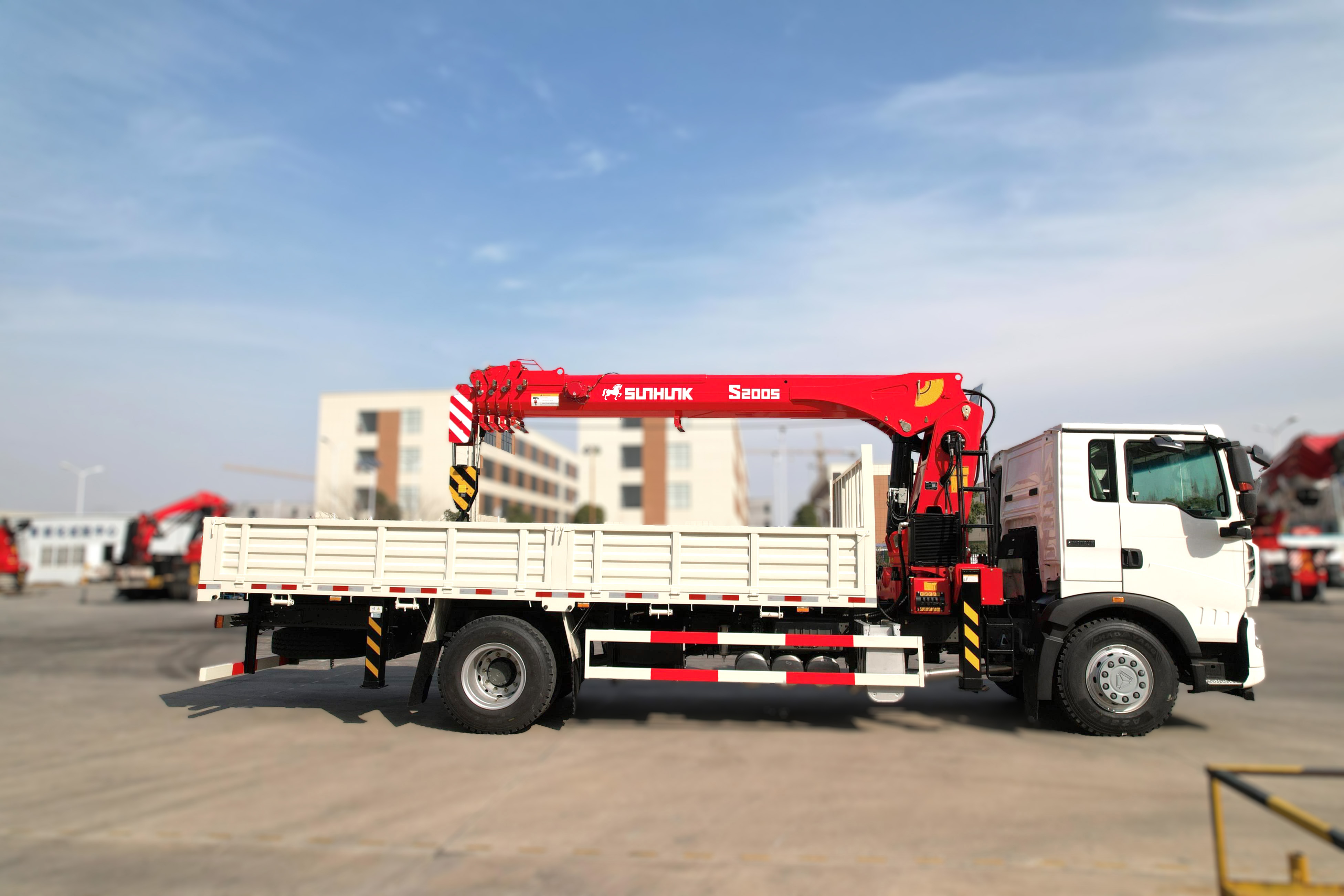

  • Case
Greening gardener speed elite


♦ The key structural components are made of Q690 high-strength steel plate through welding, which provides high strength and light weight.


♦ The rated torque of the slewing reducer is 4400 N.m, which is the highest among its peers, resulting in stronger operational capacity.


♦ The brand-new boom can achieve a maximum angle of up to 80 degrees. The octagon-shaped reinforced boom has good bending resistance, high safety factor, and a 15% higher carrying capacity than the same tonnage hexagon boom.


♦ The boom uses a single-cylinder and cable structure that is developed independently. It cooperates with domestic well-known manufacturers to develop extendable cylinders. The system uses mechanical stroke valve control, has low pressure loss, saves energy, and does not generate heat


♦ The maximum working range is 16.8 meters, which is about 0.8 meters longer than the mainstream five-section boom models in the market, providing a more significant advantage.

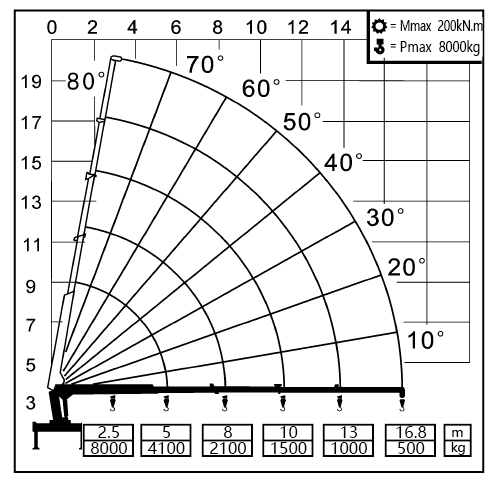

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
8000kg
20t.m
17.1m
19.5
5
80
360
6000
64
3950
30
