Products > Truck Mounted Crane > Stiff Boom Crane > S2504

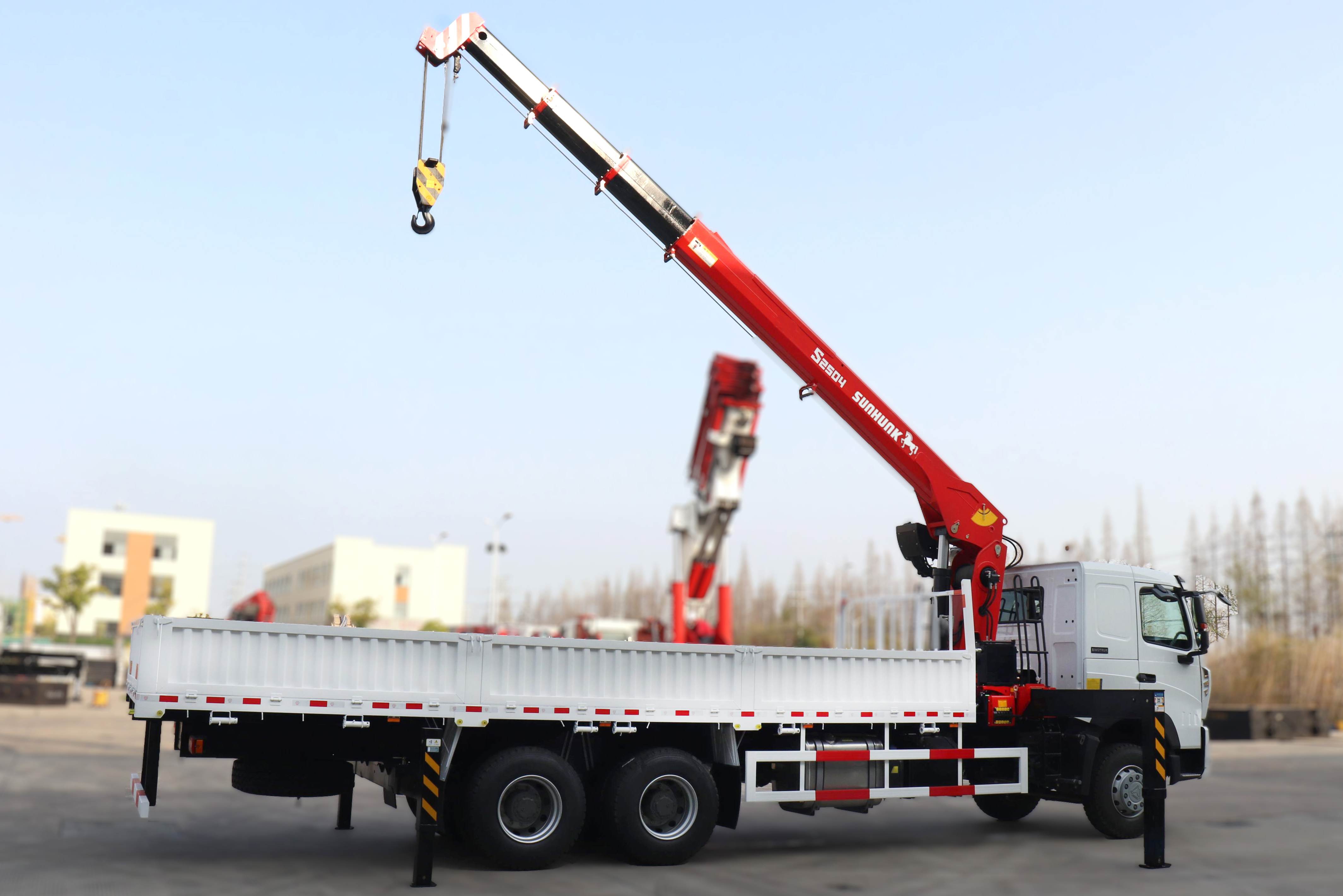

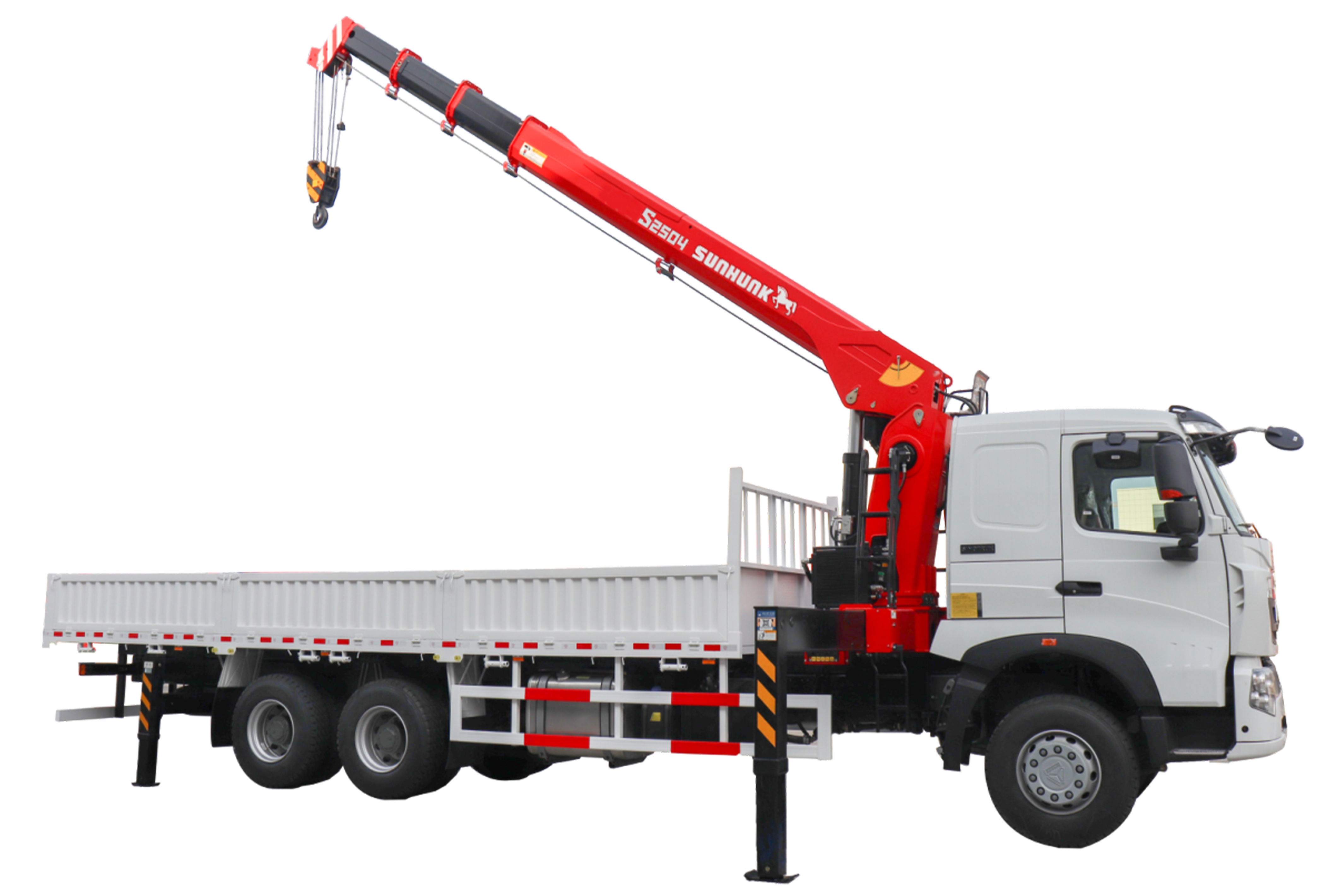

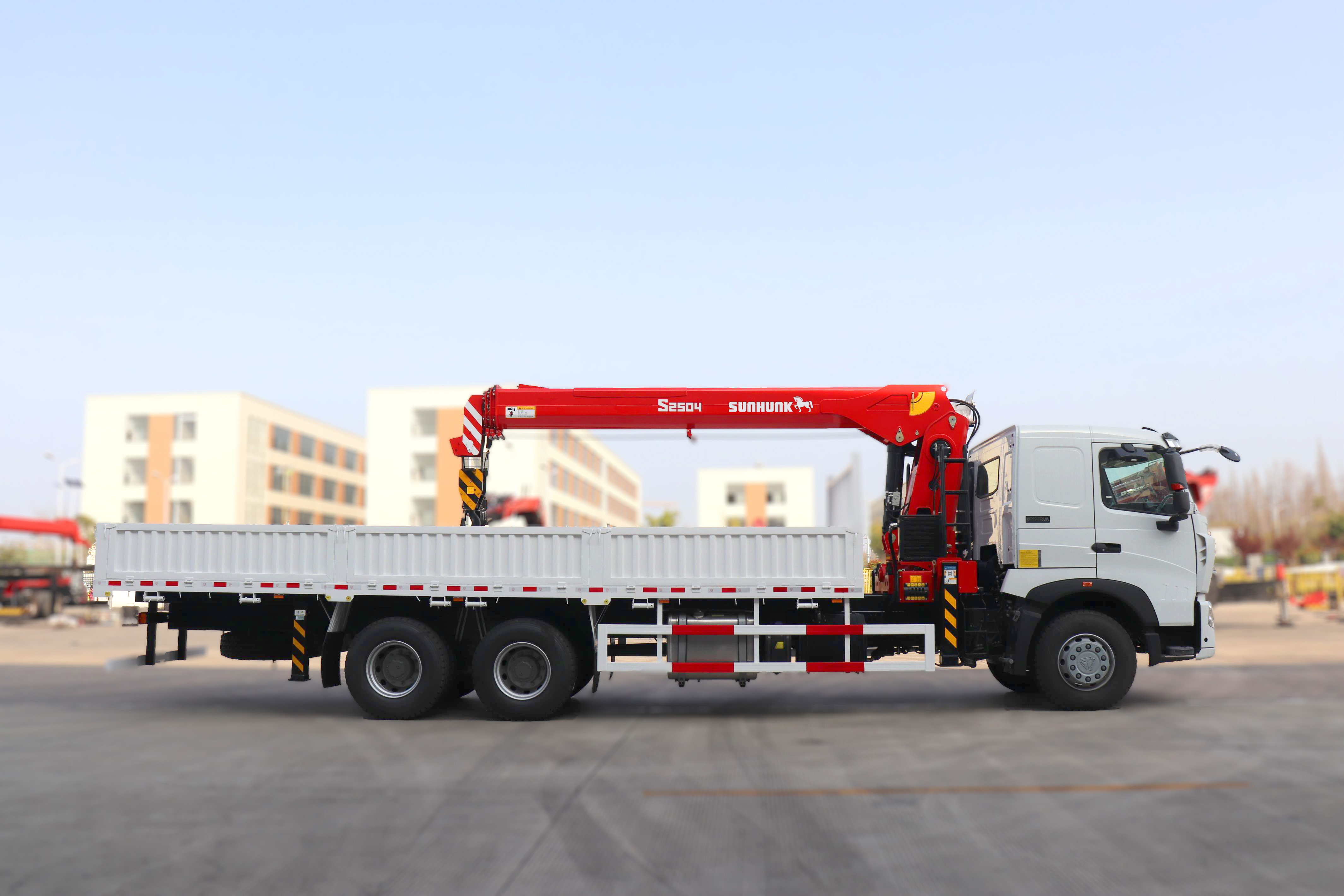

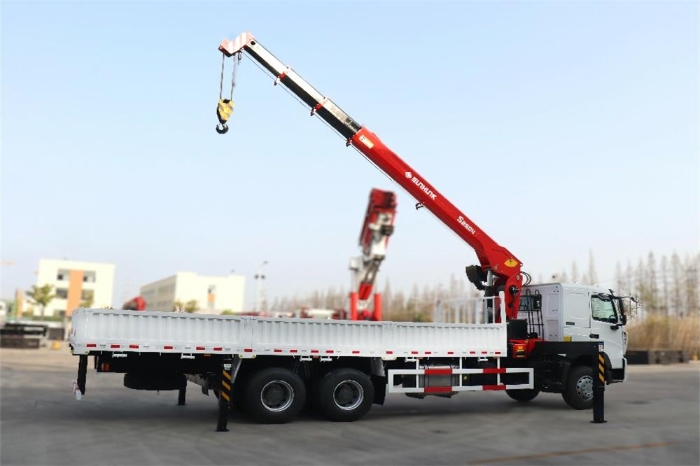

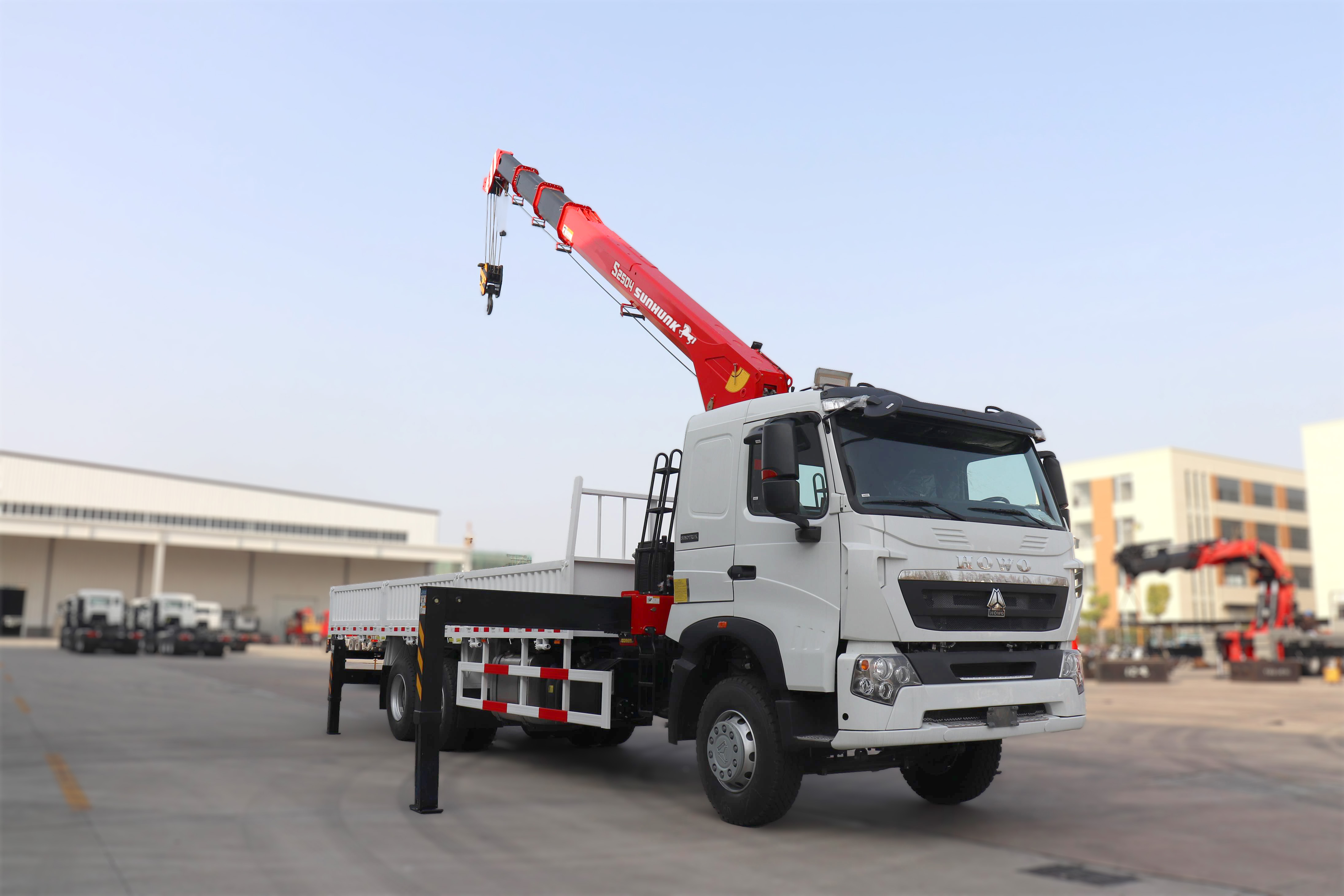

S2504
Stiff Boom Crane
Rated load
10000kg
Rated lifting capacity
25t.m
Max. working range
15.2m
  • Characteristic
  • Parameter
  • Case
Single-Bridge King of All-Around Expertise


♦ The key structural components are welded with Q690 high-strength steel plate, which provides high strength and light weight.


♦ The rated torque of the slewing reducer is 4400 N.m, which is the highest among its peers, resulting in stronger operational capacity.


♦ The octagon boom has a light weight and a 15% higher carrying capacity than the same tonnage hexagon boom.


♦ The maximum operating range is 15.5 meters, which is about 0.5 meters longer than the mainstream four-section boom models in the market, providing a more significant advantage.


♦ An optional auxiliary lift is available to meet different lifting requirements of customers.

Product Parameters
Key Parameter

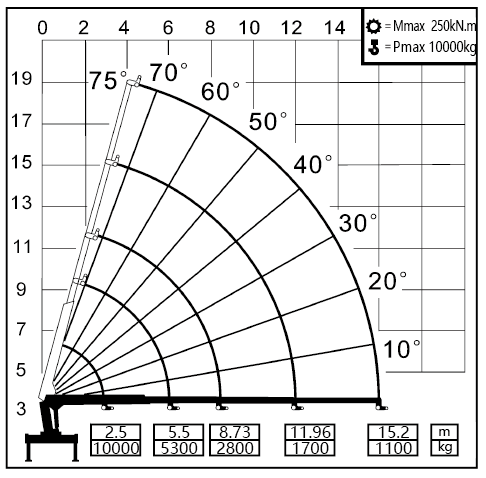

Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
10000kg
25t.m
15.2m
17.6
4
75
360
6000
64
4000
30
