Products > Truck Mounted Crane > Stiff Boom Crane > S3004

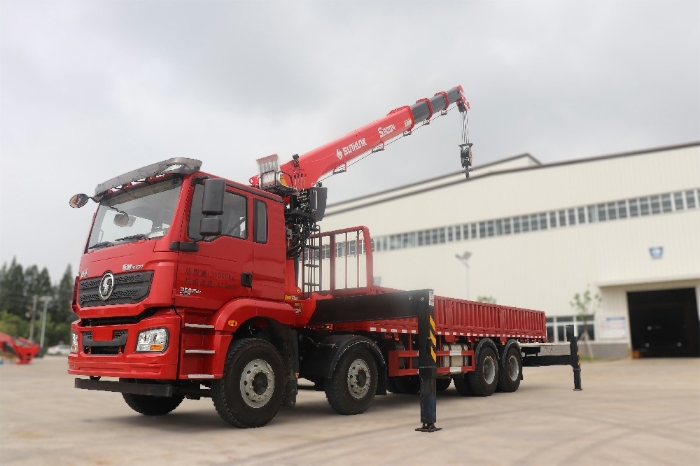

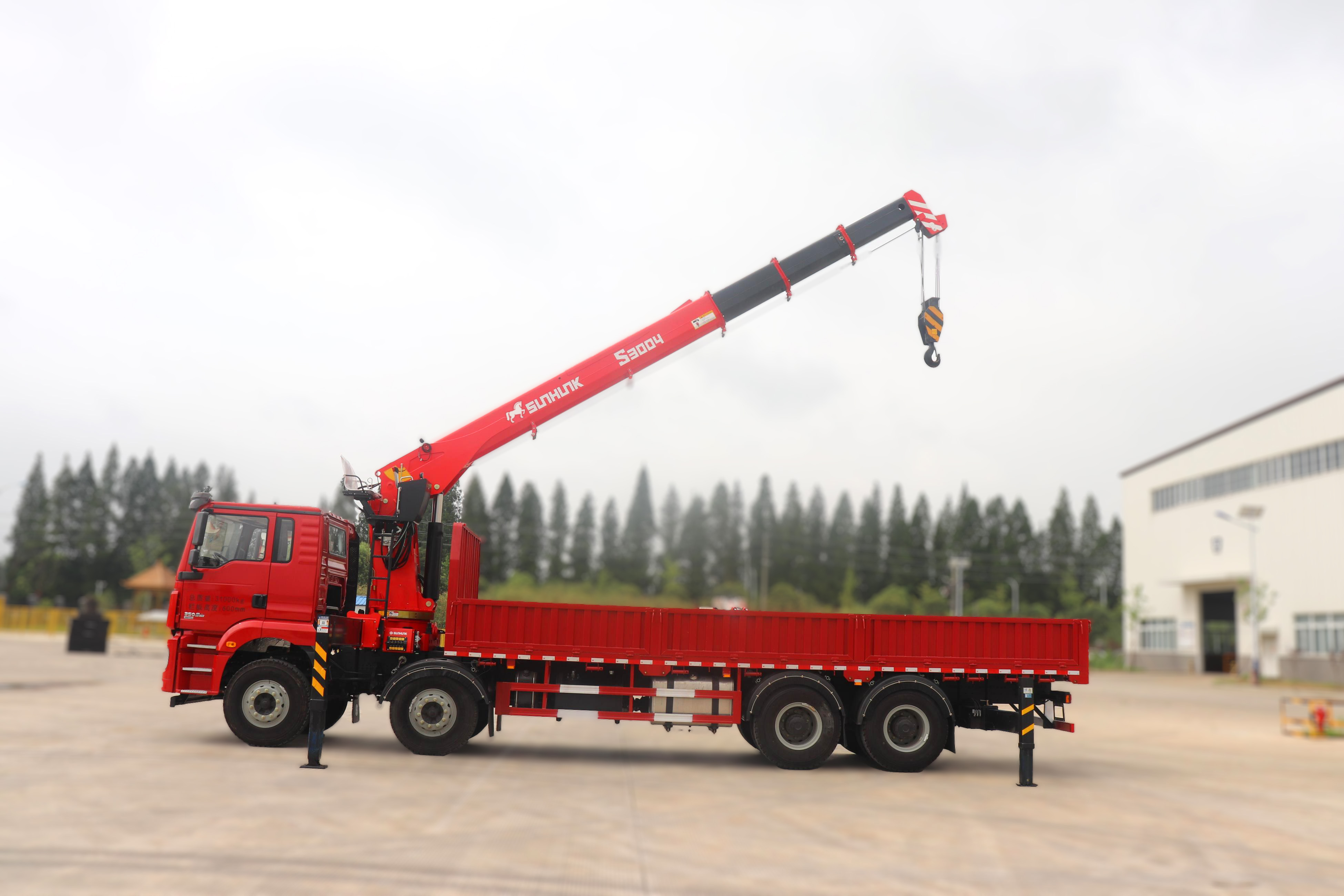

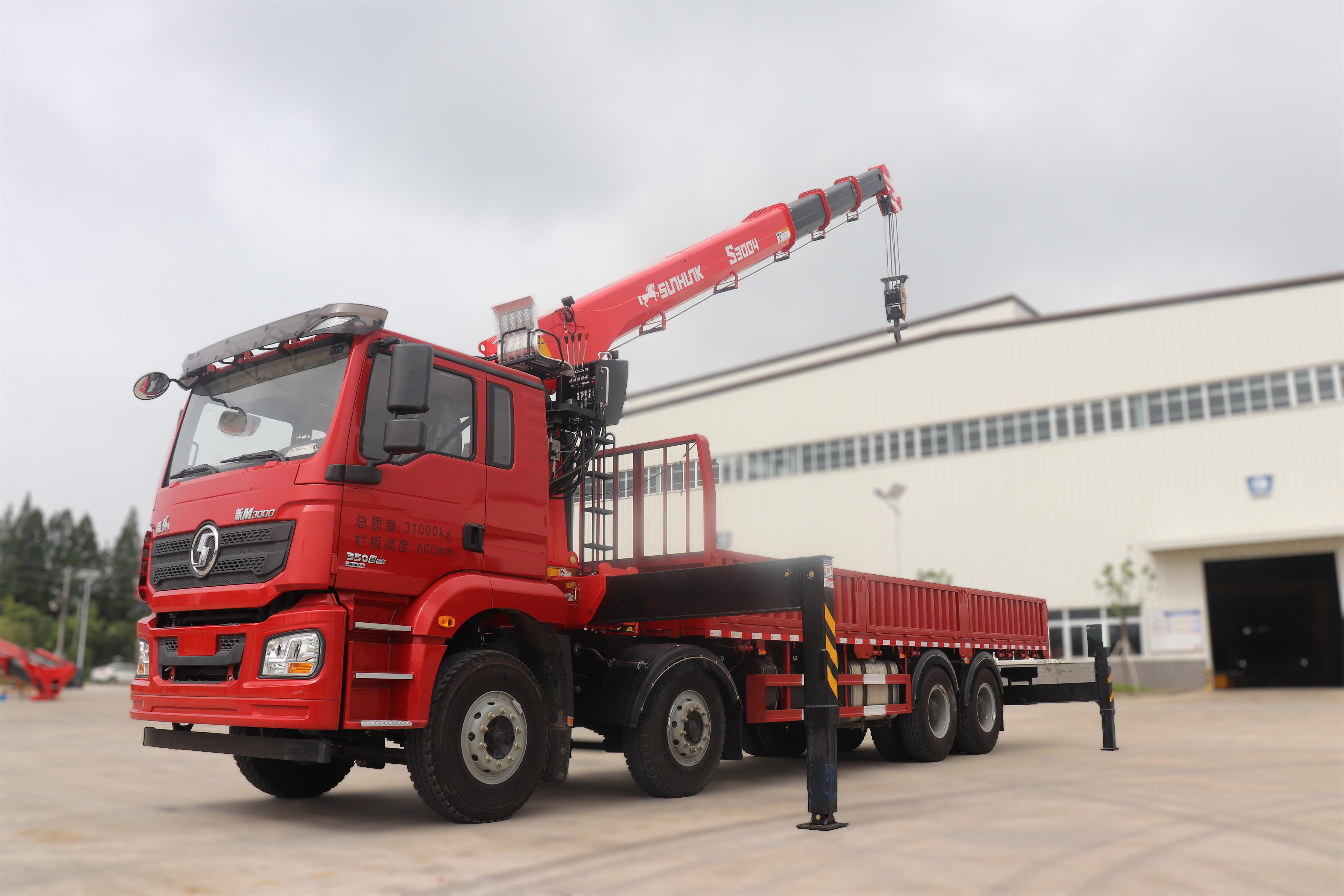

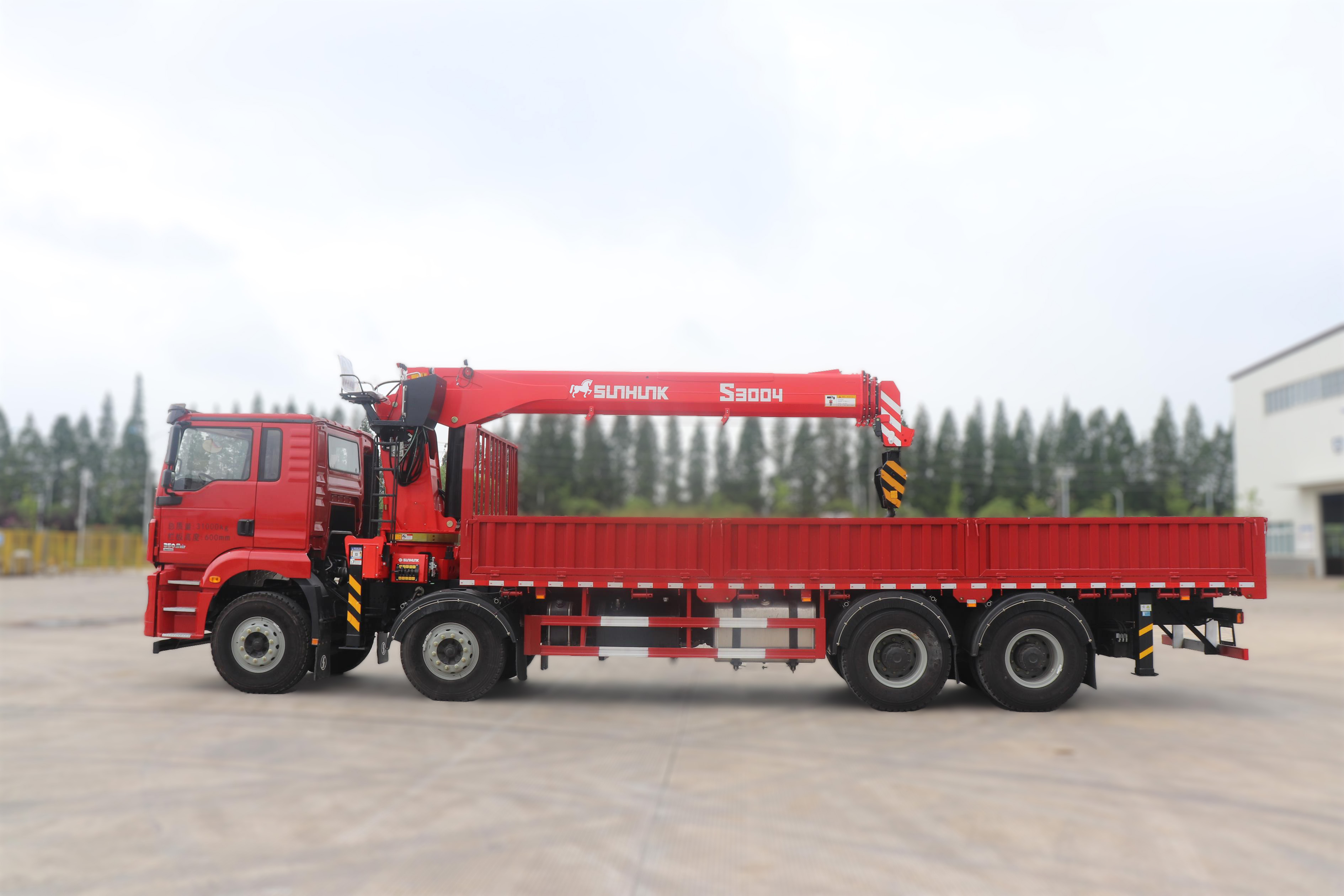

S3004
Stiff Boom Crane
Rated load
12000kg
Rated lifting capacity
30t.m
Max. working range
15.8m
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
Power Overlord, Infrastructure Preferred


♦ The key structural components are welded with Q690 high-strength steel plate, which has high strength and light weight.


♦ The rated torque of the slewing reducer is 6500 N.m, which is the maximum torque among its peers, resulting in stronger operational capacity.


♦ The octagon boom has a light weight and a 15% higher carrying capacity compared to the same tonnage hexagon boom.


♦ The maximum working range is 15.5 meters. This is about 0.5 meters longer than the mainstream four-section boom models in the market, providing a more significant advantage.


♦ An optional auxiliary lifting device is available to meet different lifting requirements of customers.

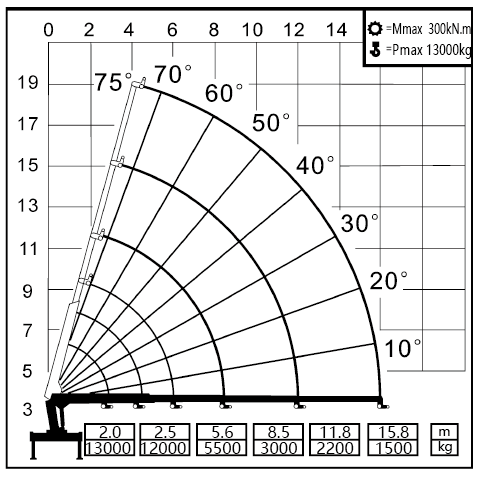

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
12000kg
30t.m
15.8m
18.2
4
75
360
6000
84
4400
30
Engineering Cases
Seedling construction
Seedling construction
Tree seedling lifting: With the help of SUNHUNK 's telescopic boom, which has a long and extra-long leg span, the tree seedling lifting can be easily completed.
Flip over on the construction site
Flip over on the construction site
On construction sites, materials and equipment are often lifted and moved. With its long and powerful boom, the SUNHUNK telescopic boom can easily handle a variety of lifting tasks. The telescopic arm allows for efficient movement and positioning, while the strong lifting capacity allows for safe and secure lifting of equipment and materials. This makes the SUNHUNK telescopic boom an essential tool for construction sites.
