Products > Truck Mounted Crane > Stiff Boom Crane > S3305

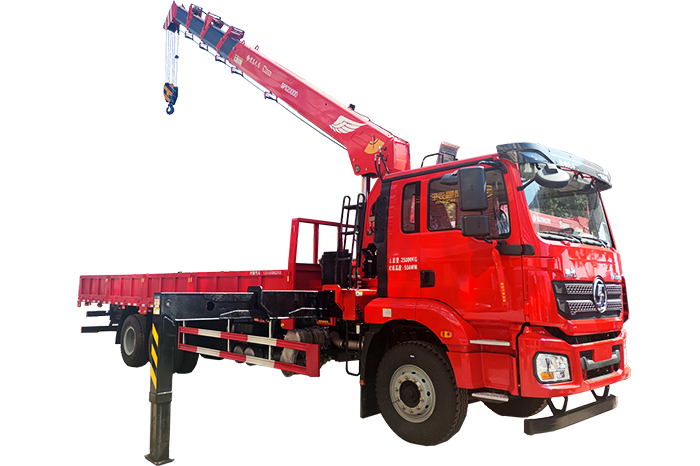

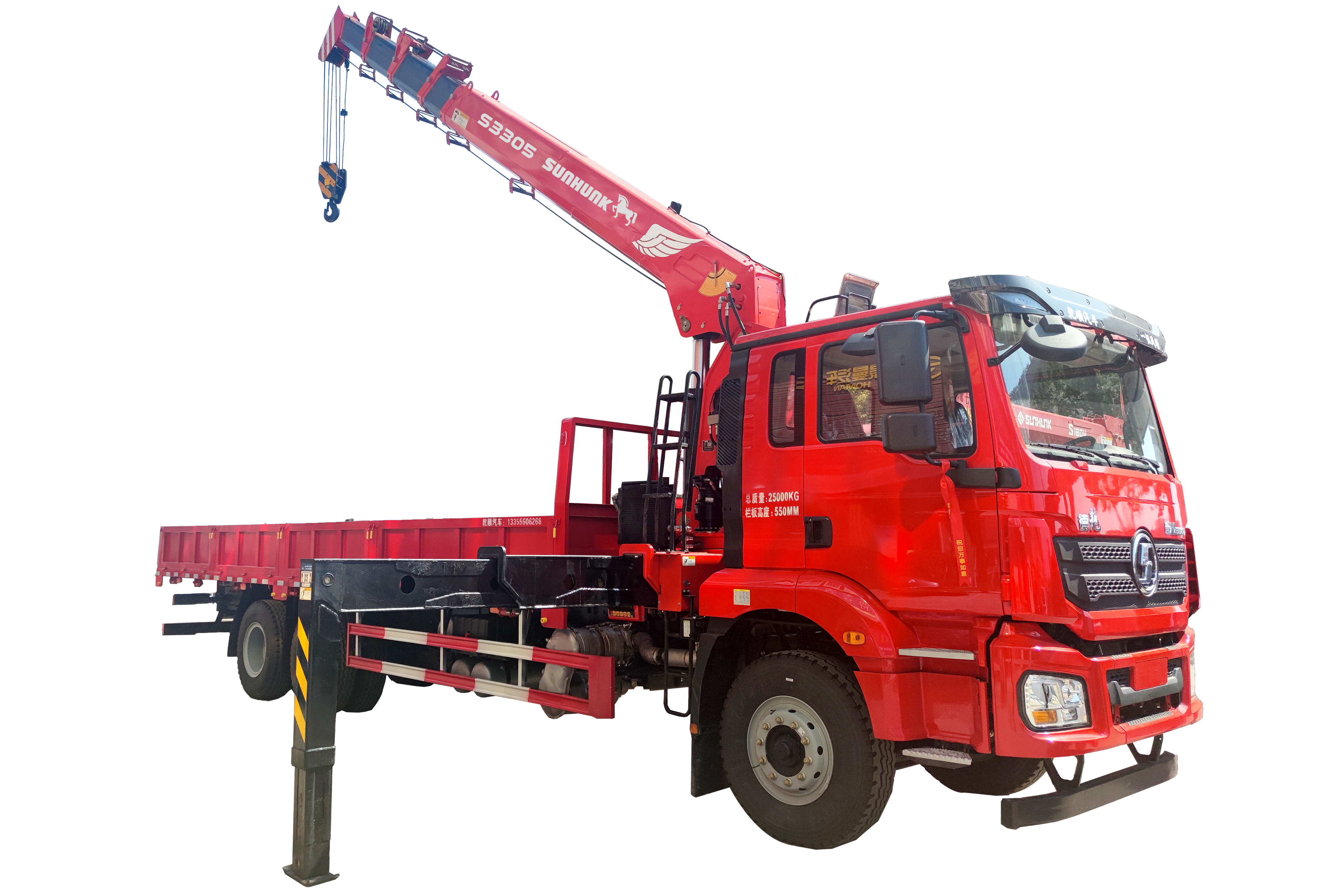

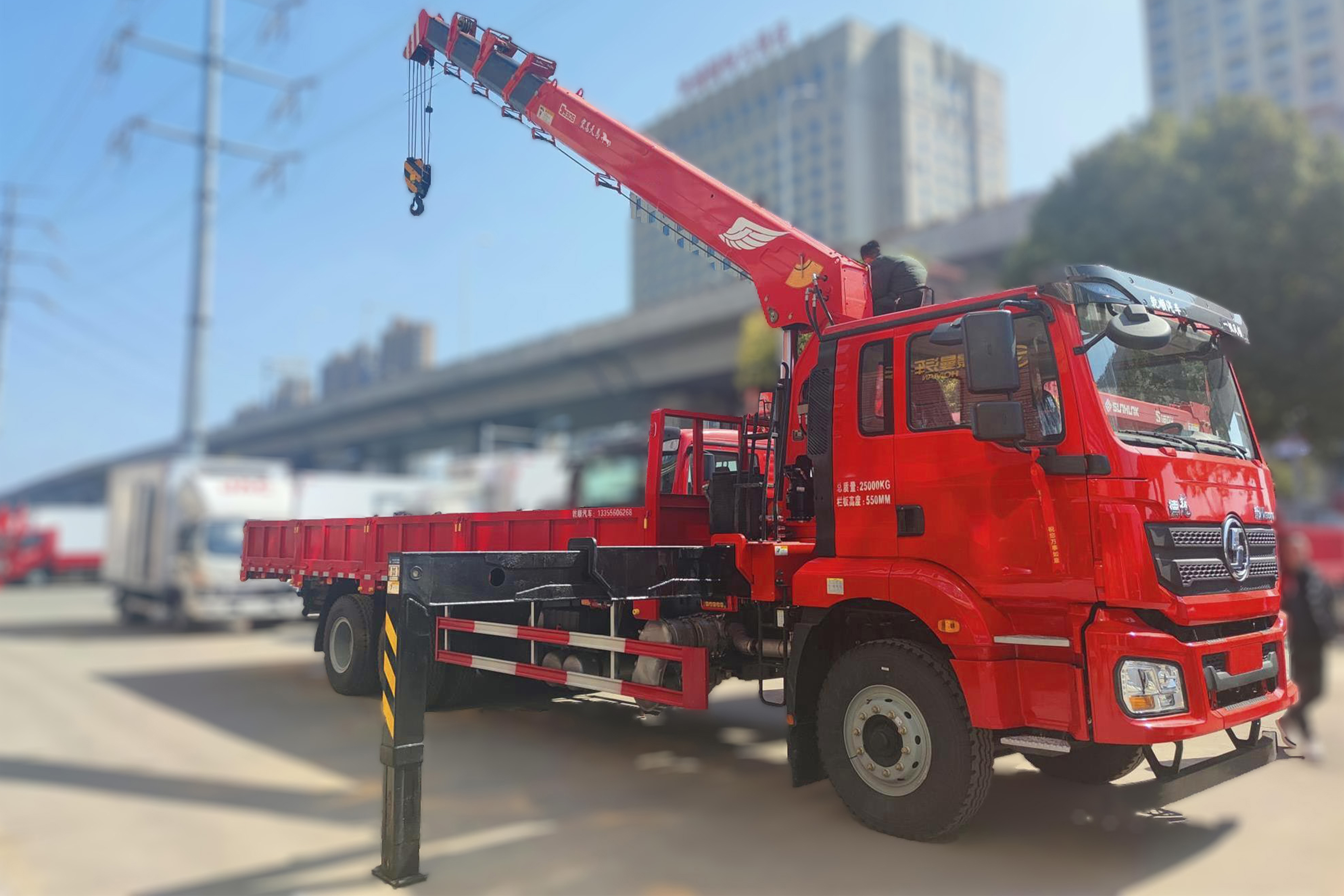

S3305
Stiff Boom Crane
Rated load
13000kg

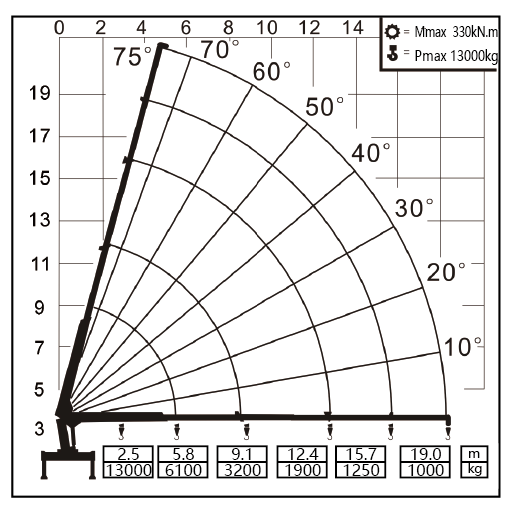

Rated lifting capacity
33t.m
Max. working range
19m
  • Characteristic
  • Parameter
  • Case
Straight-Arm Efficiency King


♦ The key structural components are welded with Q690 high-strength steel plate, which provides high strength and light weight.


♦ The rated torque of the slewing reducer is 6500 N.m, which is the highest among its peers, resulting in stronger operational capacity.


♦ The octagon boom has a light weight and a 15% higher carrying capacity than the same tonnage hexagon boom.


♦ The maximum operating range is 19 meters, which is about 3.5 meters longer than the mainstream four-section boom models in the market, meeting more working conditions.


♦ Double extendable arms with cable lock, with a safe coefficient of load extension higher than the industry's same level by 40%.

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
13000kg
33t.m
19m
22
5
75
360
7500
84
4800
28
