Products > Truck Mounted Crane > Stiff Boom Crane > S4005

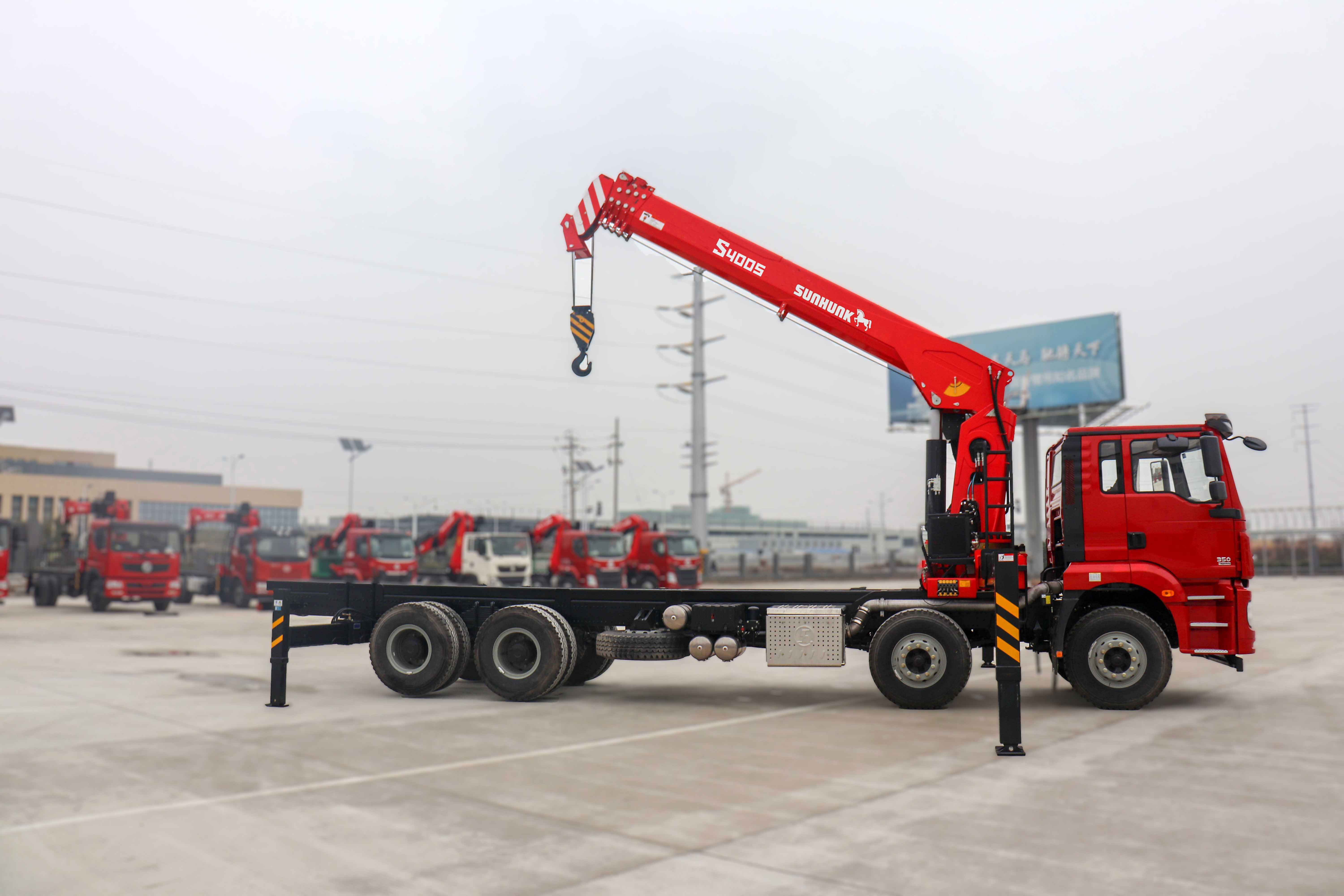

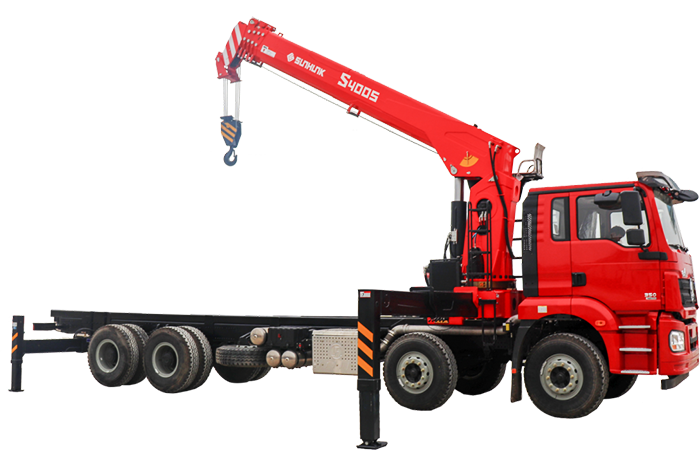

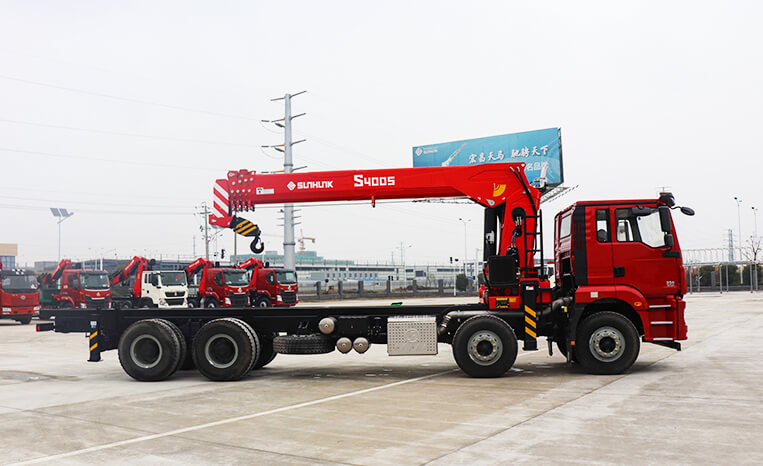

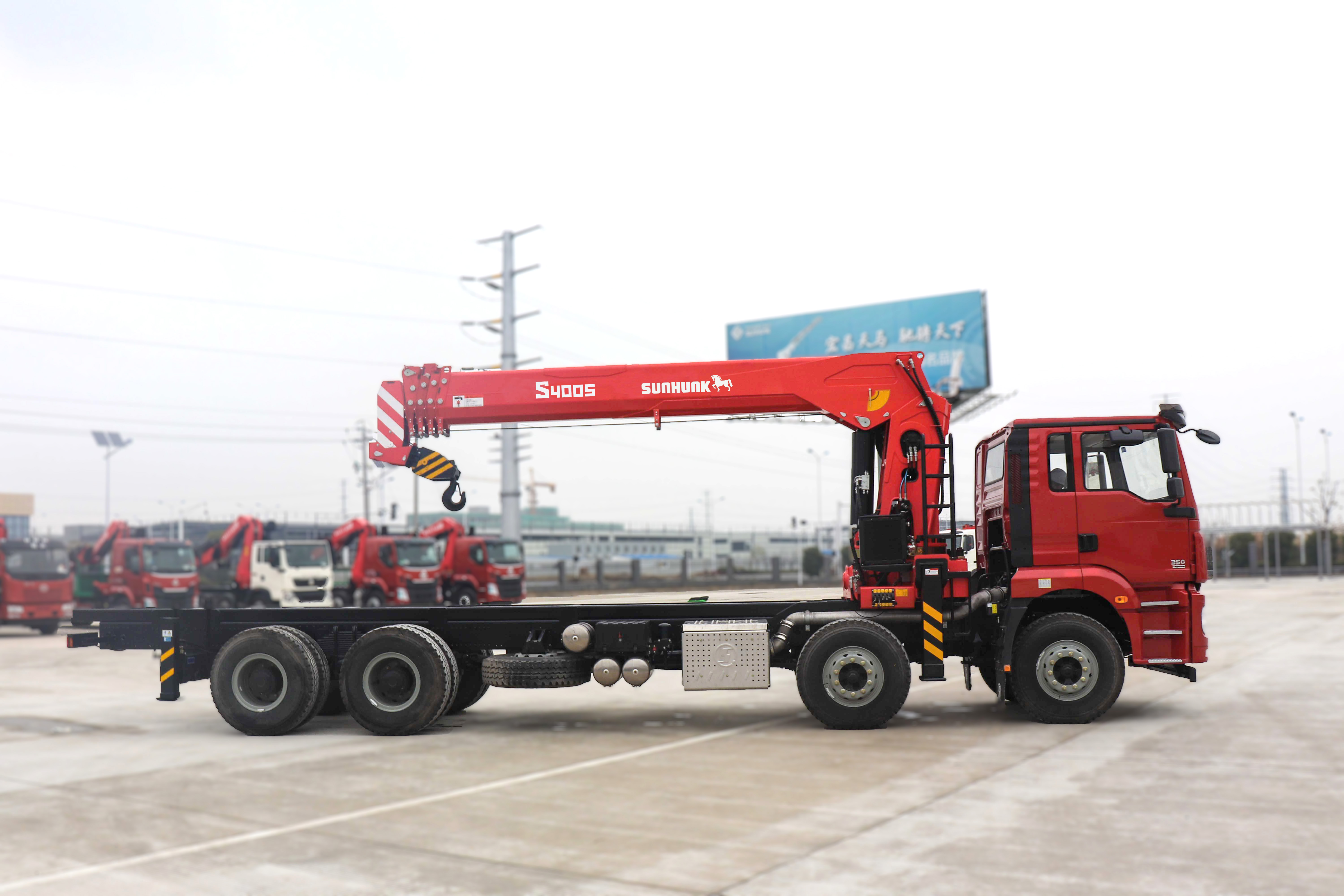

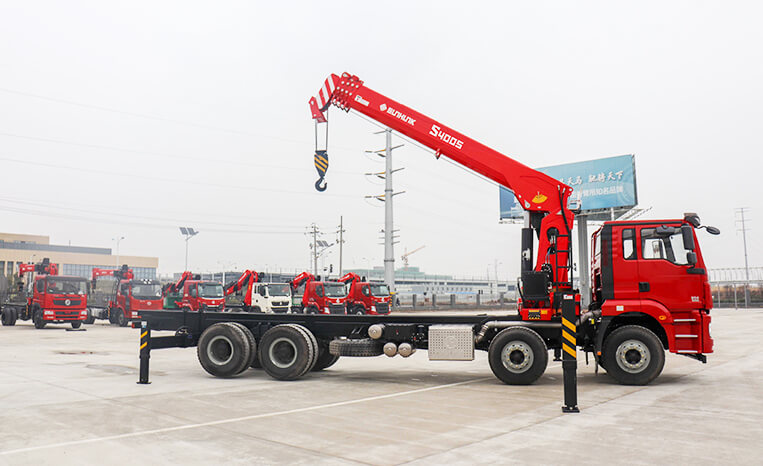

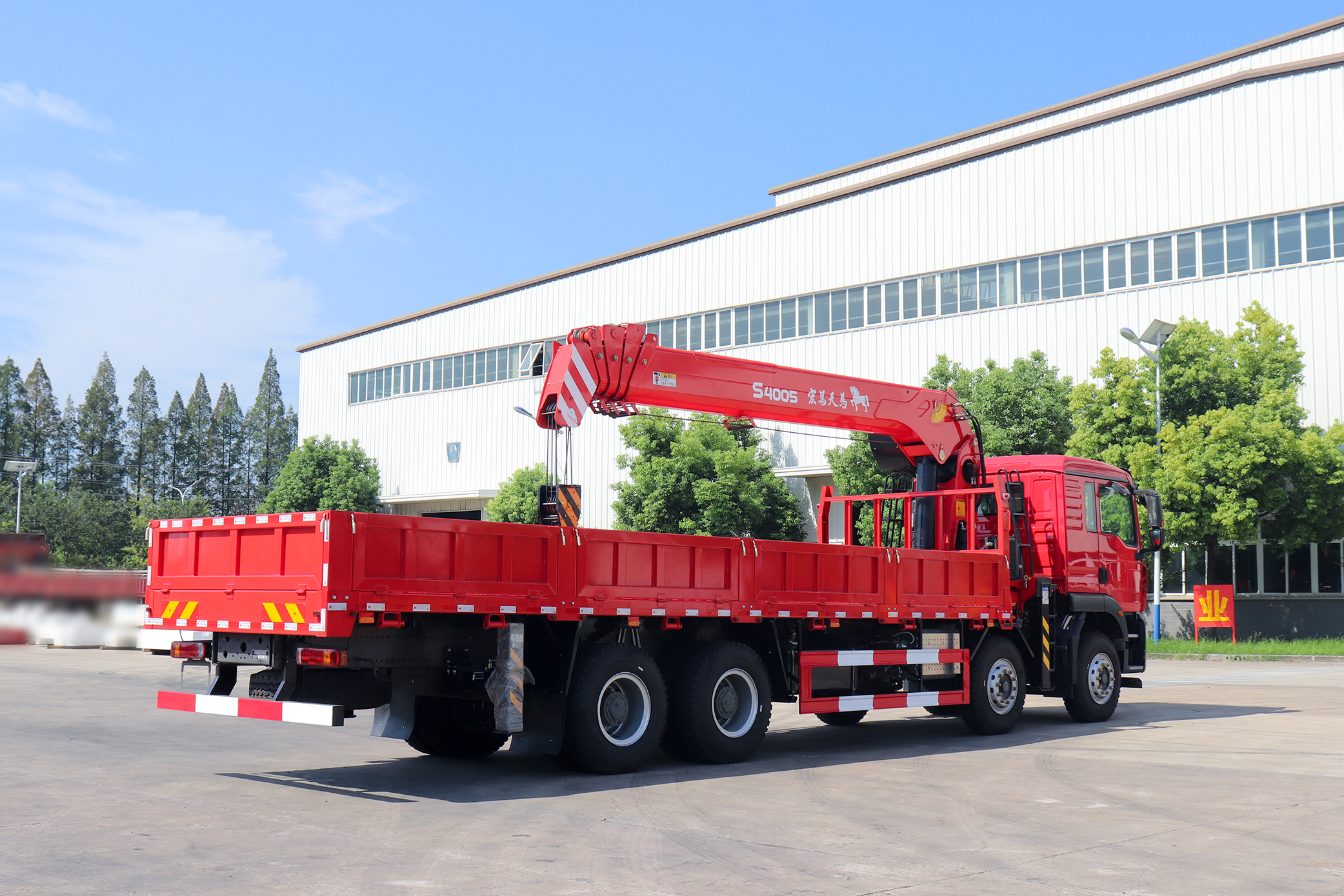

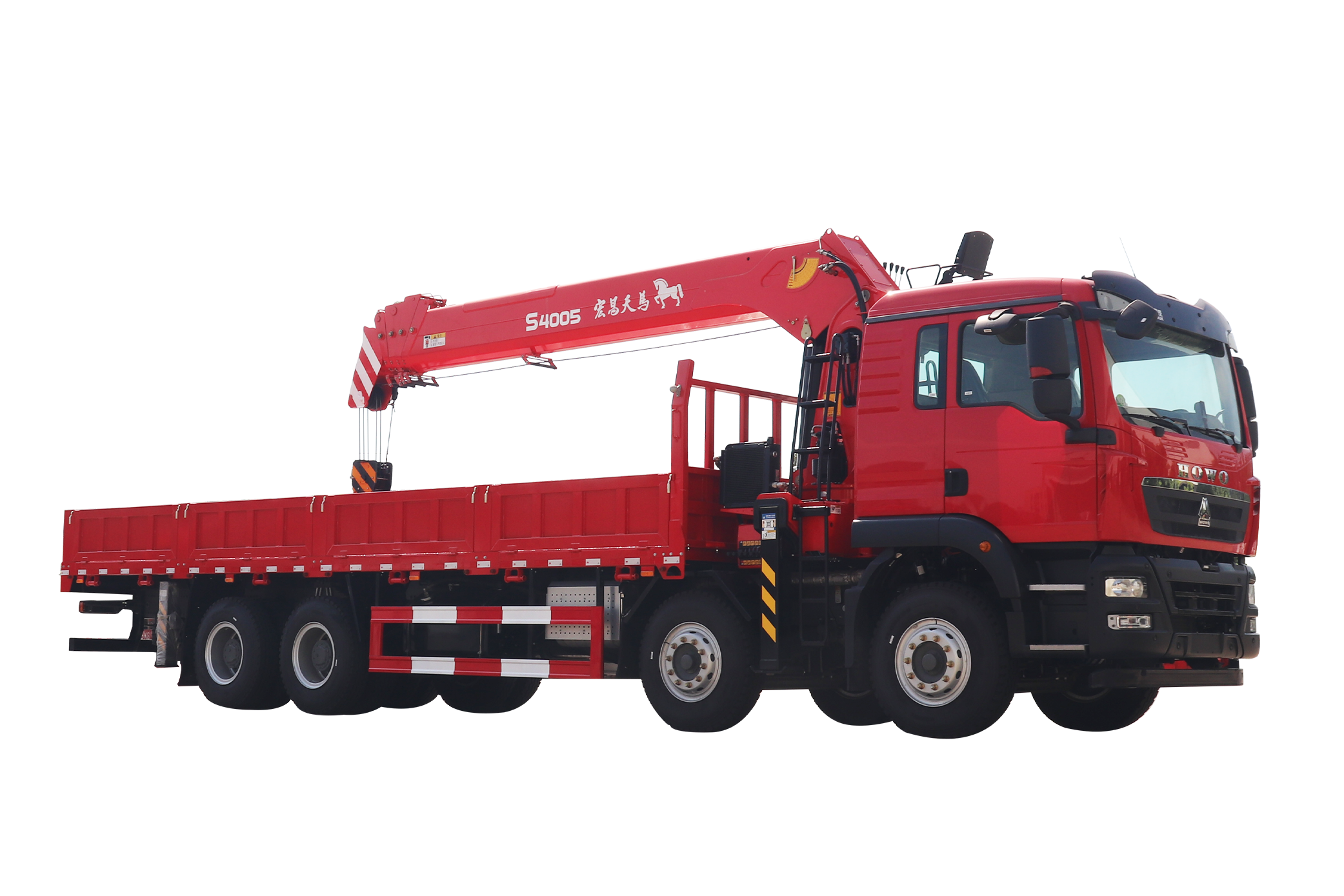

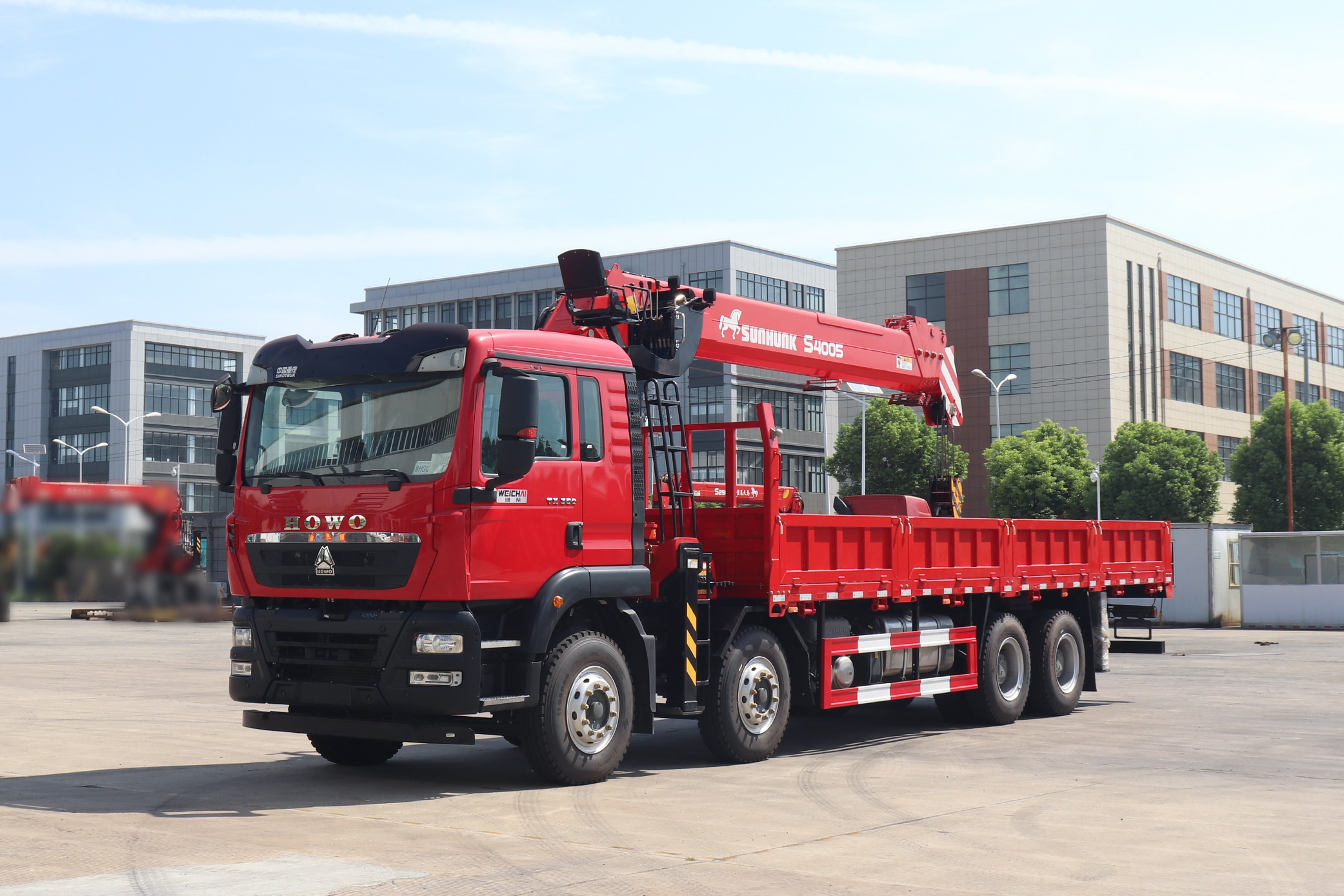

S4005
Stiff Boom Crane
Rated load
16000kg
Rated lifting capacity
40t.m

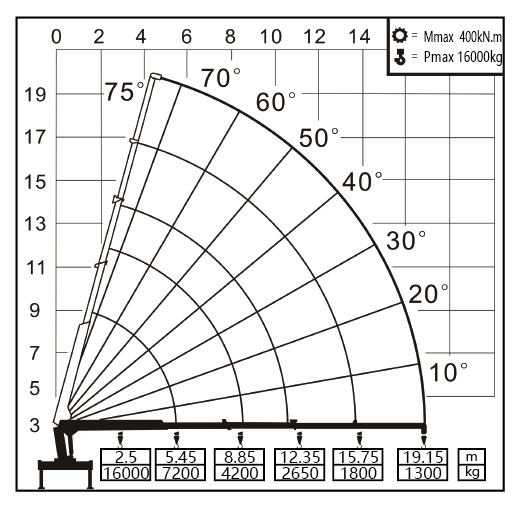

Max. working range
19.6m
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
Mighty King of Lifting Machines


♦ All key structural components are welded with Q690 high-strength steel plate, which has high strength and light weight.


♦ The octagon boom has a light weight and a 15% higher carrying capacity than the same tonnage hexagon boom.


♦ The maximum operating range is 19.2 meters, with strong ability to cross obstacles.

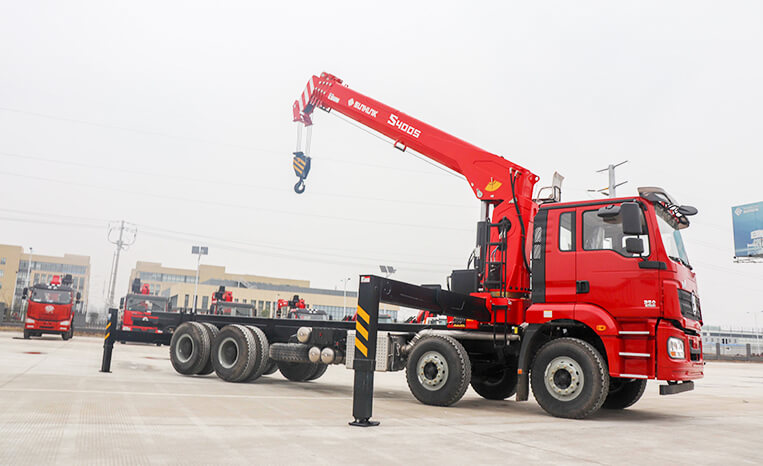

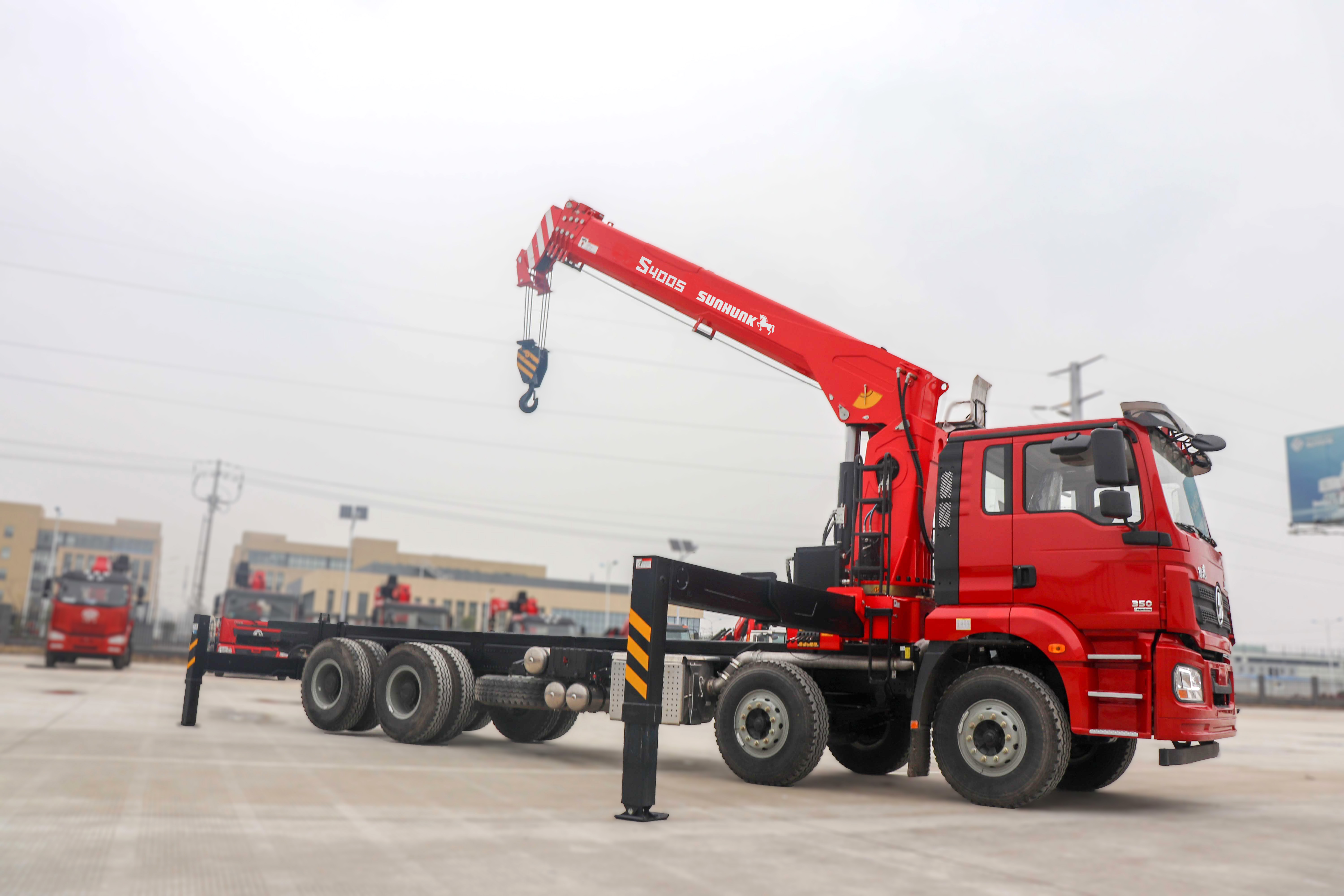

♦ Double-stage legs, with a lateral span of 7.8 meters, have the largest span among products of the same level, resulting in more stable operation.


♦ Standard dual-axis reducer with powerful and stable rotation, the strongest in the industry.

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
16000kg
40t.m
19.6m
22.2
5
75
360
7800
100
6400
30
Engineering Cases
Seedling construction
Seedling construction
Tree seedling lifting: With the help of SUNHUNK 's telescopic boom, which has a long and extra-long leg span, the tree seedling lifting can be easily completed.
Flip over on the construction site
Flip over on the construction site
On construction sites, materials and equipment are often lifted and moved. With its long and powerful boom, the SUNHUNK telescopic boom can easily handle a variety of lifting tasks. The telescopic arm allows for efficient movement and positioning, while the strong lifting capacity allows for safe and secure lifting of equipment and materials. This makes the SUNHUNK telescopic boom an essential tool for construction sites.
