Products > Truck Mounted Crane > Knuckle Boom Crane > K168

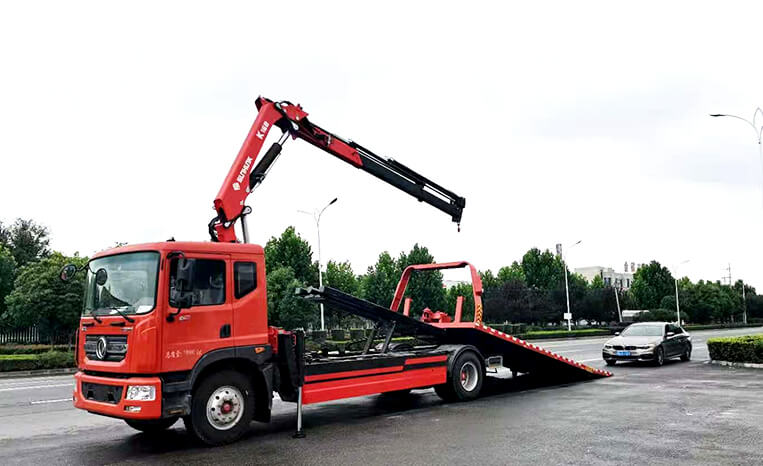

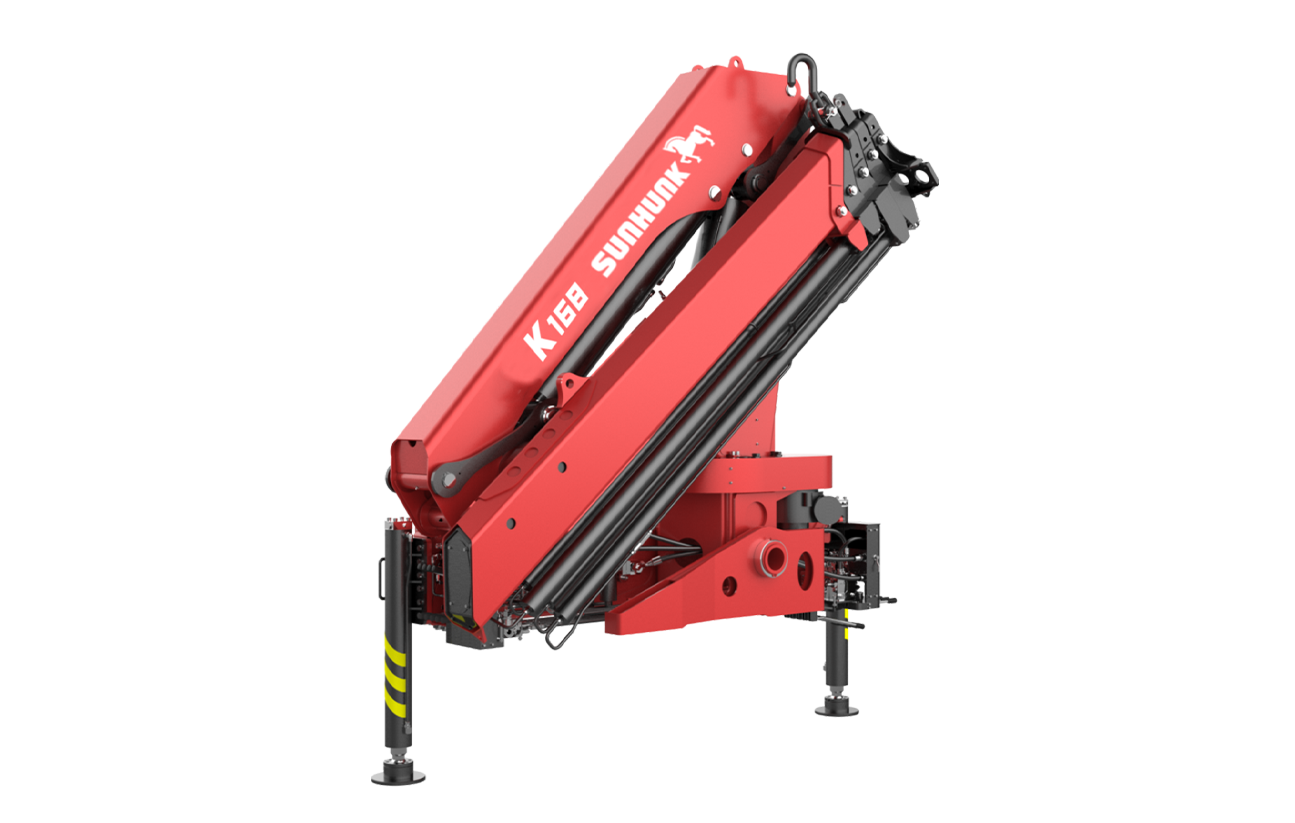

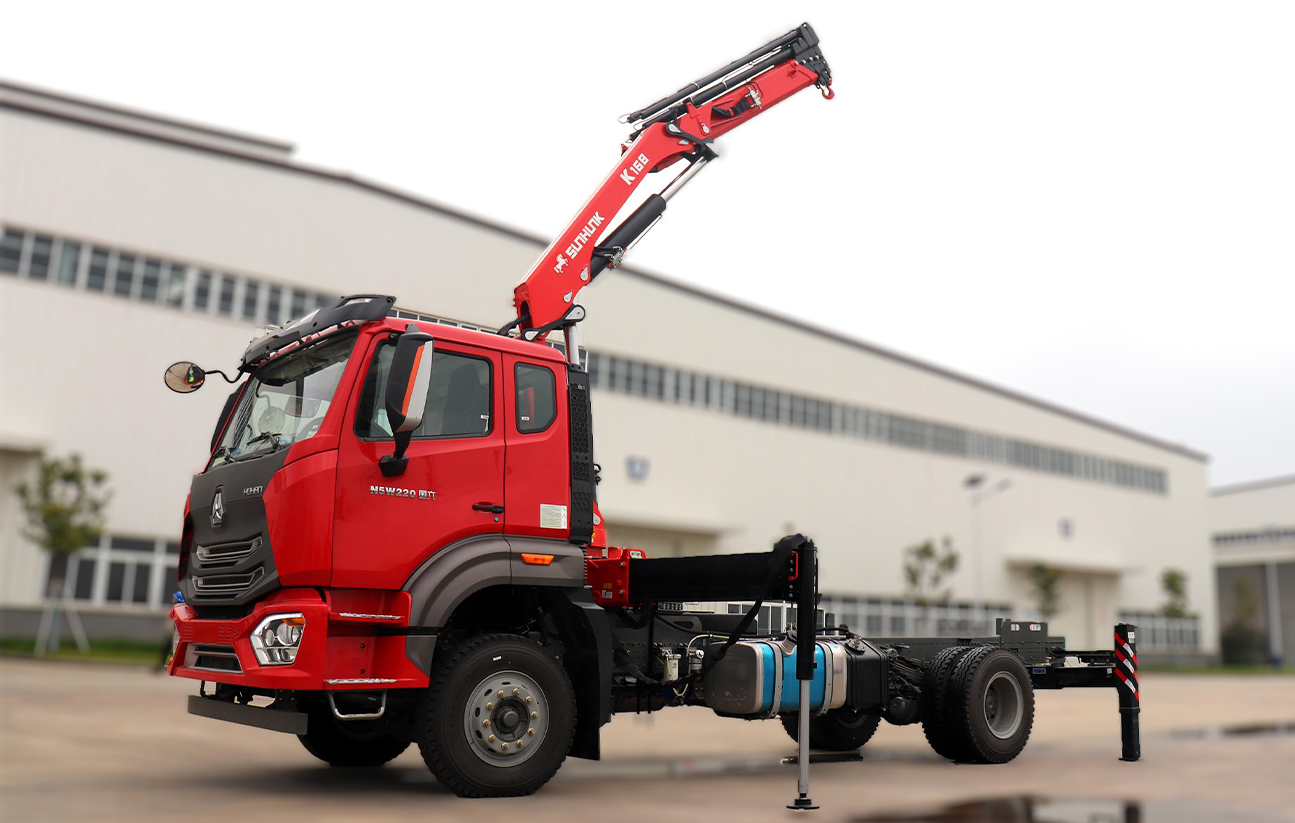

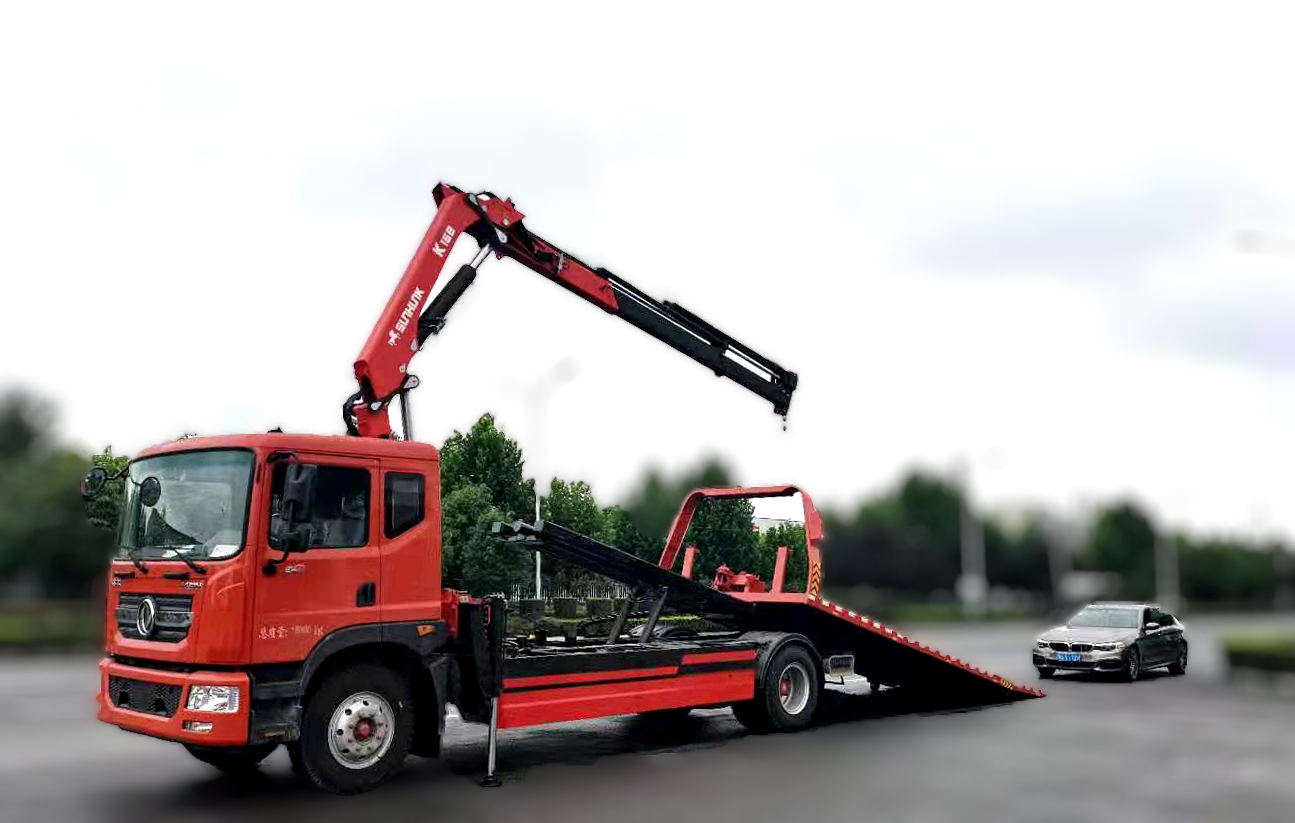

K168
Knuckle Boom Crane
Rated load
8000kg
Rated lifting capacity
16t.m

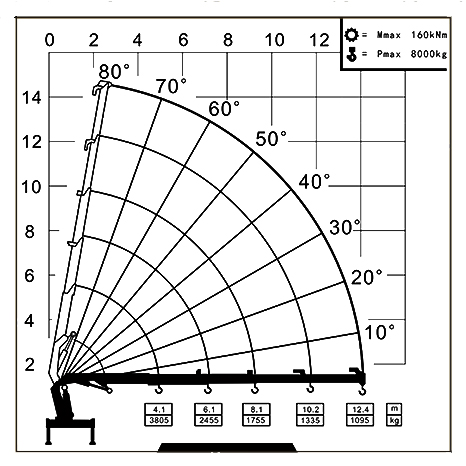

Max. working range
12.4m
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
Small-scale lifting device


♦ New generation lightweight platform, high starting point.


♦ Multiple optional configurations, easily meeting personalized customization needs.


♦ Hexagon single-plate bending technology for the boom, more sturdy and durable.


♦ Variable cross-section turntable design, compact structure, beautiful appearance, and high-strength steel application, resulting in lighter overall weight.


♦ Dual four-link variable amplitude mechanism, with a 15-degree negative angle for the second change, has a wide application range and flexible operation.

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
8000kg
16t.m
12.4m
14
4
88
360
5345
34
2500
30
Engineering Cases
Brick lifting
Brick lifting
Guangxi brick factory, user Mr. Zhuang from K430 telescopic arm, has added clamps for loading and unloading aerated bricks. The distance to the back of the truck is around 8.5 meters, and the bricks weigh 4 tons. Advantage: 20-30 minutes faster than using a forklift for loading and unloading per truck.
Working condition for going upstairs
Working condition for going upstairs
For the working condition of going upstairs, the SUNHUNK folding arm product supports load extension and can be easily adapted to various equipment working conditions for going upstairs with the help of remote control/auxiliary arm. This allows for easy handling of various equipment and materials when going upstairs.
Negative angle operation of folding arm
Negative angle operation of folding arm
For the task of lifting equipment to the interior of a building from the road, where there is a sinking at the first floor location, which makes it impossible for a straight arm crane to lift, the SUNHUNK folding arm has a negative angle lifting capability of 15 degrees. This allows for easy lifting of the equipment into the interior of the building.
Factory Equipment Lifting
Factory Equipment Lifting
Mr. Chen from Zhengzhou, Henan used our 728 to complete the installation of the equipment within the confined space of the factory. The equipment weighs around 6 tons. Advantage: A straight arm crane cannot handle this job due to the confined space.
