Products > Truck Mounted Crane > Knuckle Boom Crane > K328

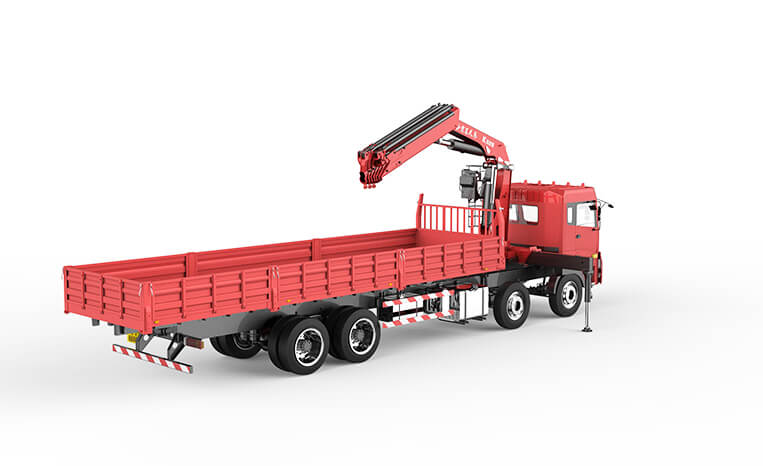

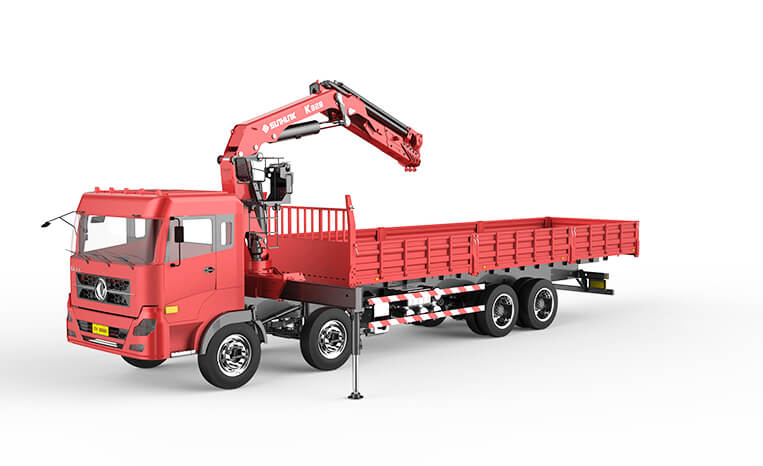

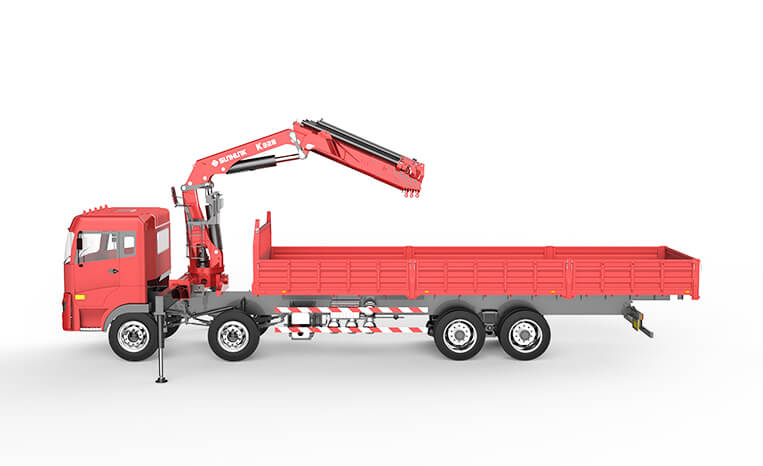

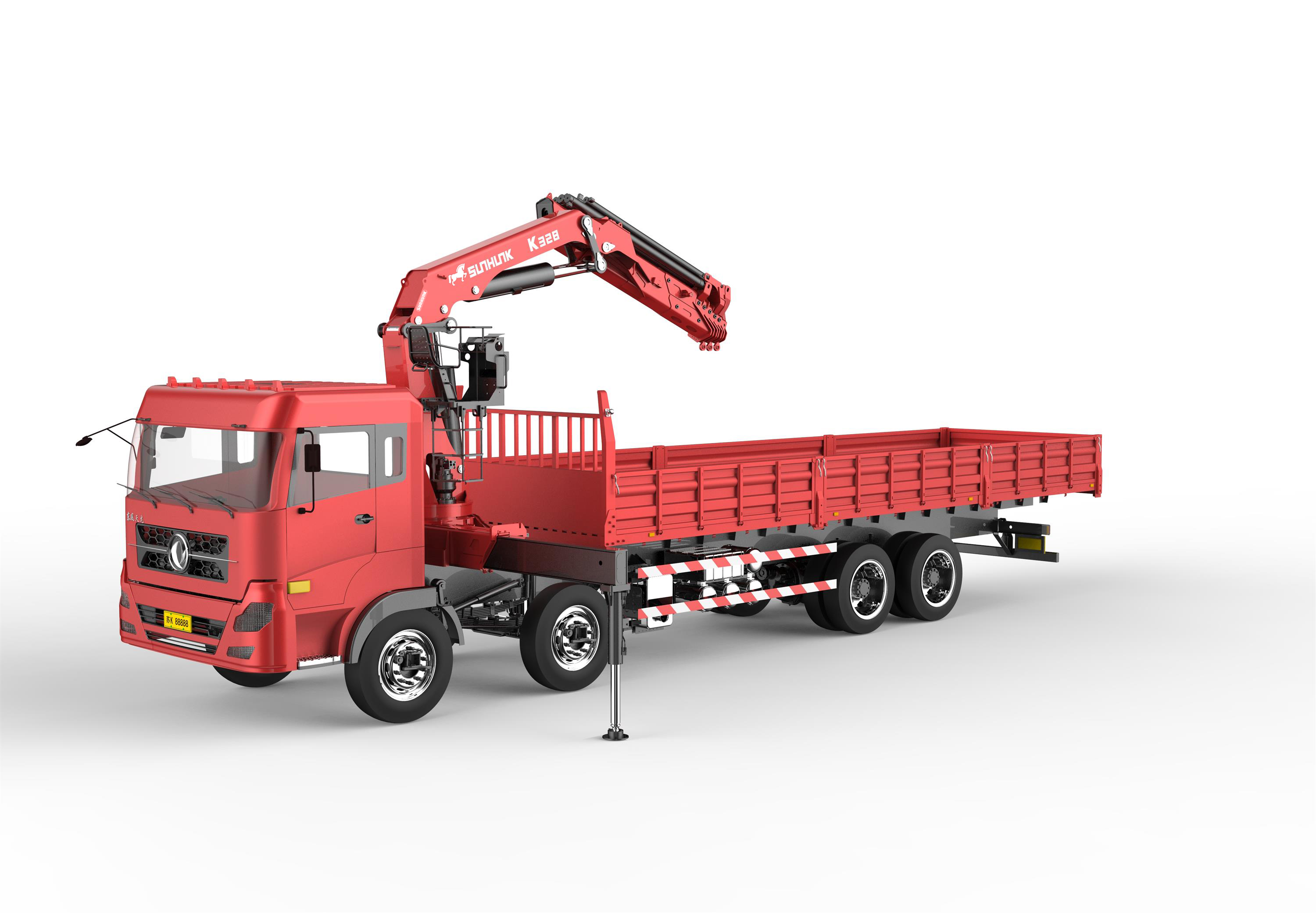

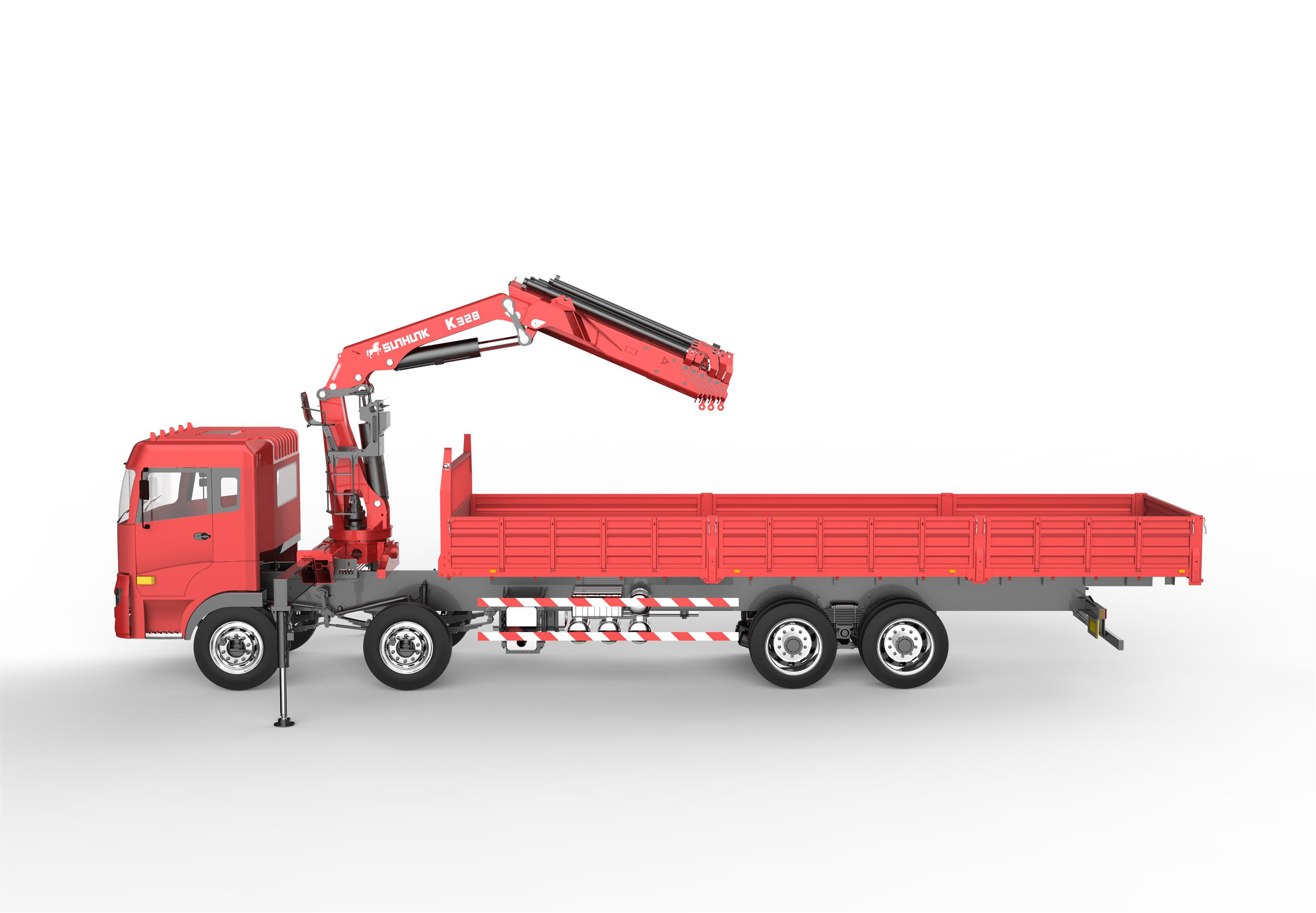

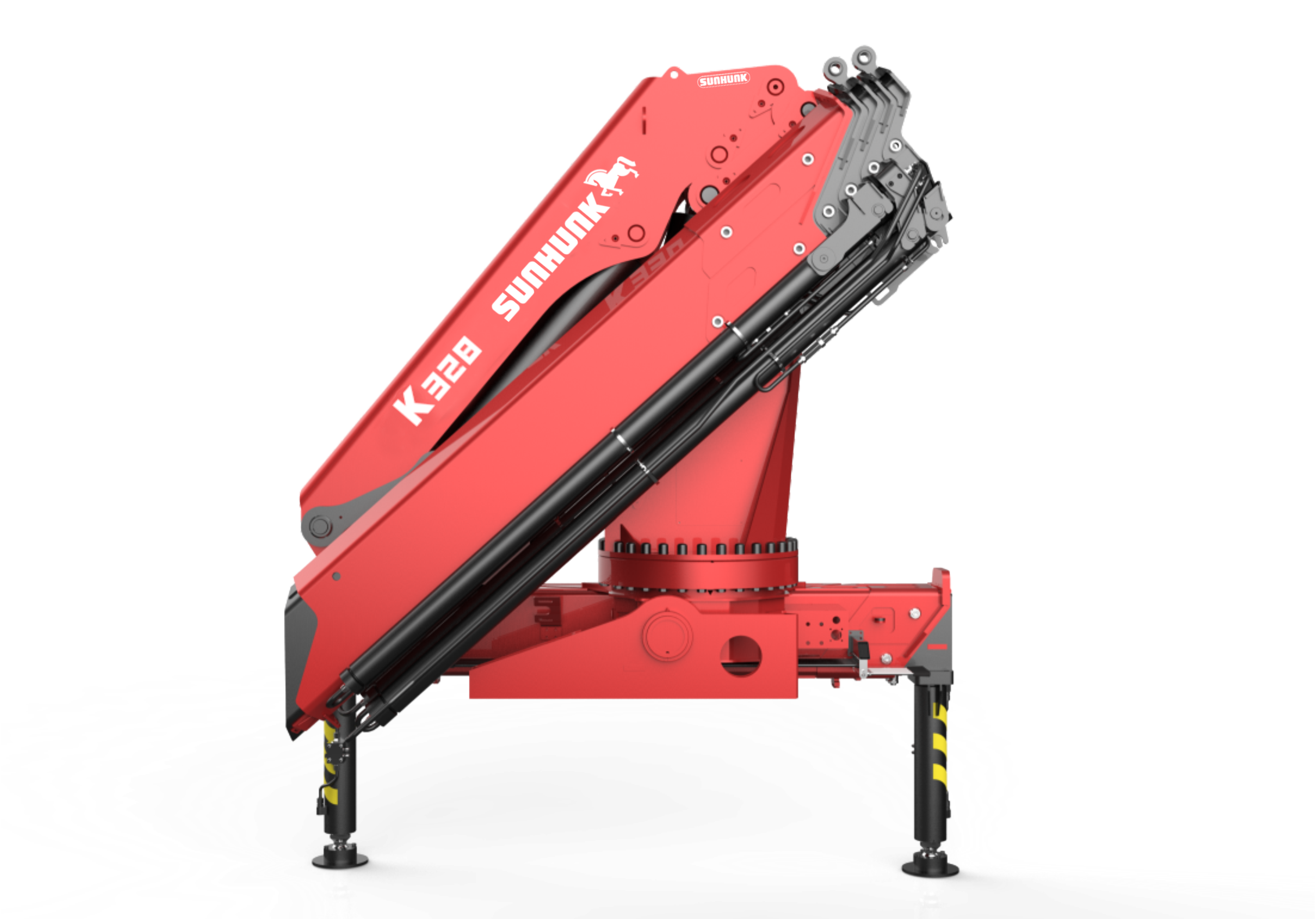

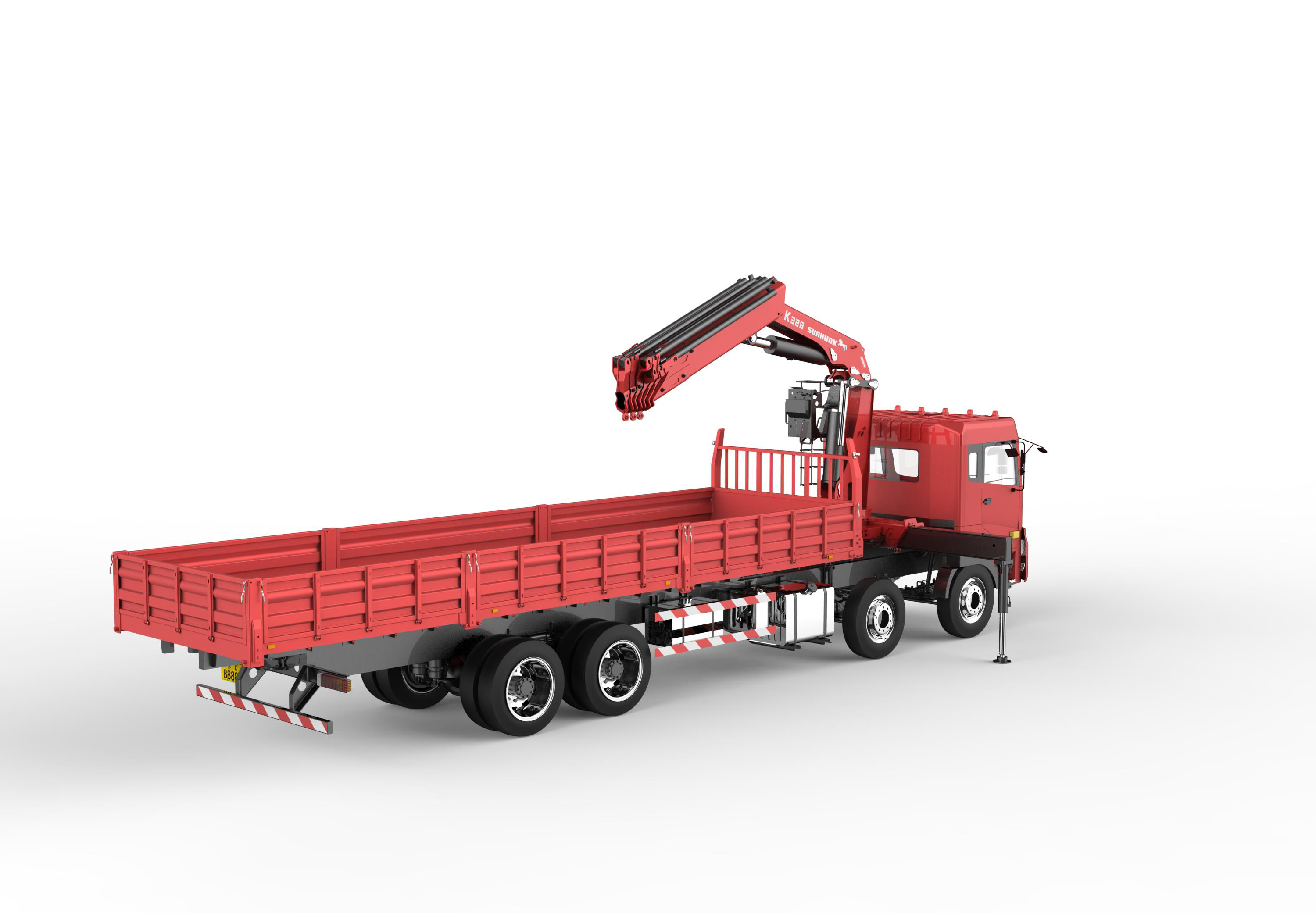

K328
Knuckle Boom Crane
Max. Lifting Capacity
15000kg
Rated Lifting Moment
30t.m
Max. Working Radius
12.23m
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
Ideal match for logistics and transportation


  1. Versatile configuration options are available to effortlessly meet      specific customization requirements.


  2. Complies with international standards, ensuring excellent      expandability and system compatibility.


  3. Compact structure utilizing high-strength steel, resulting in a      lightweight design without compromising durability.


  4. Dual four-bar linkage luffing mechanism with a 15° negative angle on      the outer boom, offering a wide working range and flexible operation.


  5. Optional wireless remote control system allows for enhanced      operational convenience and precision.

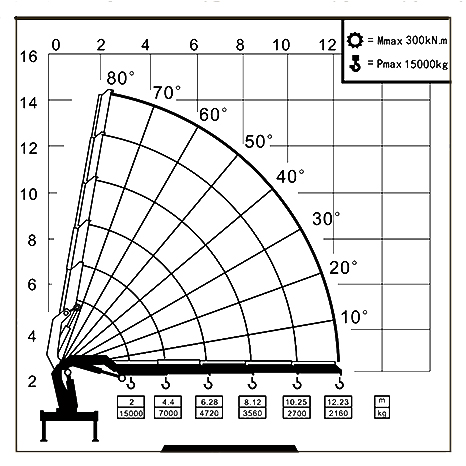

Product Parameters
Key Parameter
Max. Lifting Capacity
Rated Lifting Moment
Max. Working Radius
Max. Lifting Height
Boom Sections
Max. Elevation Angle
Slewing Angle
Outrigger Span
System Flow Rate
Crane Dead Weight
Rated System Pressure
Parameter Value
15000kg
30t.m
12.23m
15.2
4
80
360
5912
64
4300
33
Engineering Cases
Brick lifting
Brick lifting
Guangxi brick factory, user Mr. Zhuang from K430 telescopic arm, has added clamps for loading and unloading aerated bricks. The distance to the back of the truck is around 8.5 meters, and the bricks weigh 4 tons. Advantage: 20-30 minutes faster than using a forklift for loading and unloading per truck.
Working condition for going upstairs
Working condition for going upstairs
For the working condition of going upstairs, the SUNHUNK folding arm product supports load extension and can be easily adapted to various equipment working conditions for going upstairs with the help of remote control/auxiliary arm. This allows for easy handling of various equipment and materials when going upstairs.
Negative angle operation of folding arm
Negative angle operation of folding arm
For the task of lifting equipment to the interior of a building from the road, where there is a sinking at the first floor location, which makes it impossible for a straight arm crane to lift, the SUNHUNK folding arm has a negative angle lifting capability of 15 degrees. This allows for easy lifting of the equipment into the interior of the building.
High-voltage line railway construction
High-voltage line railway construction
During the railway installation process, it is necessary to lift the railway modules from the side to the designated location under high-voltage lines. The 4500 fully extended boom is 23.4 meters long, and it can lift 12 tons, which perfectly meets the working conditions.
Factory Equipment Lifting
Factory Equipment Lifting
Mr. Chen from Zhengzhou, Henan used our 728 to complete the installation of the equipment within the confined space of the factory. The equipment weighs around 6 tons. Advantage: A straight arm crane cannot handle this job due to the confined space.
