Products > Truck Mounted Crane > Knuckle Boom Crane > K430

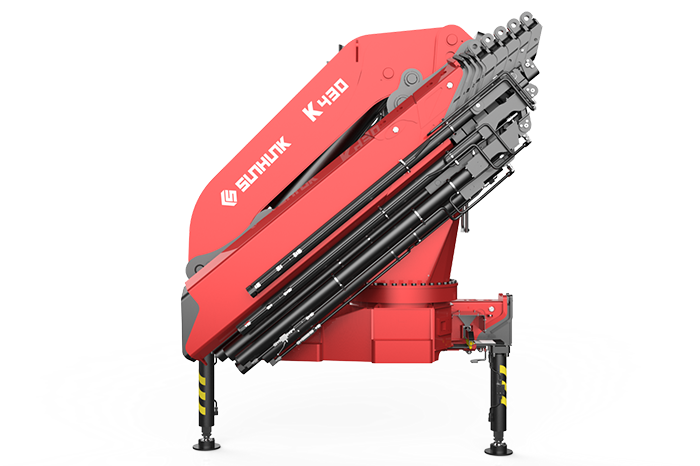

K430
Knuckle Boom Crane
Max. Lifting Capacity
20000
Rated Lifting Moment
40
Max. Working Radius
16.8
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
城市建筑守护者


1、新一代轻量化平台，高起点；


2、高于行业标准三倍的可靠性试验，可靠性高；


3、多种可选配置，易满足个性化定制需求；


4、结构紧凑，应用进口高强度钢材，整机自重更轻；


5、双四连杆变幅机构，二变具备15°负角，应用范围广，作业灵活；

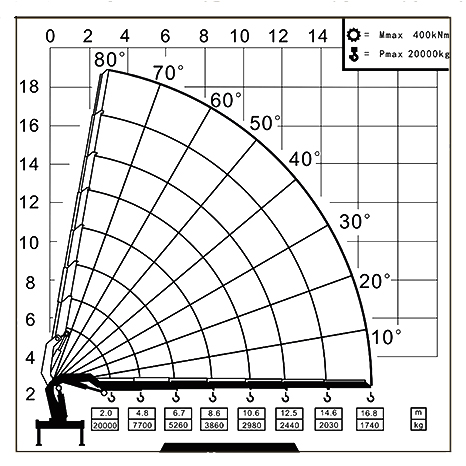

Product Parameters
Key Parameter
Max. Lifting Capacity
Rated Lifting Moment
Max. Working Radius
Max. Lifting Height
Boom Sections
Max. Elevation Angle
Slewing Angle
Outrigger Span
System Flow Rate
Crane Dead Weight
Rated System Pressure
Parameter Value
20000
40
16.8
20.8
6
85
Continuous
7460
65
4200/4076
33
Engineering Cases
Brick lifting
Brick lifting
Guangxi brick factory, user Mr. Zhuang from K430 telescopic arm, has added clamps for loading and unloading aerated bricks. The distance to the back of the truck is around 8.5 meters, and the bricks weigh 4 tons. Advantage: 20-30 minutes faster than using a forklift for loading and unloading per truck.
Working condition for going upstairs
Working condition for going upstairs
For the working condition of going upstairs, the SUNHUNK folding arm product supports load extension and can be easily adapted to various equipment working conditions for going upstairs with the help of remote control/auxiliary arm. This allows for easy handling of various equipment and materials when going upstairs.
Negative angle operation of folding arm
Negative angle operation of folding arm
For the task of lifting equipment to the interior of a building from the road, where there is a sinking at the first floor location, which makes it impossible for a straight arm crane to lift, the SUNHUNK folding arm has a negative angle lifting capability of 15 degrees. This allows for easy lifting of the equipment into the interior of the building.
Factory Equipment Lifting
Factory Equipment Lifting
Mr. Chen from Zhengzhou, Henan used our 728 to complete the installation of the equipment within the confined space of the factory. The equipment weighs around 6 tons. Advantage: A straight arm crane cannot handle this job due to the confined space.
