Products > Truck Mounted Crane > High Performance Crane > Z4500

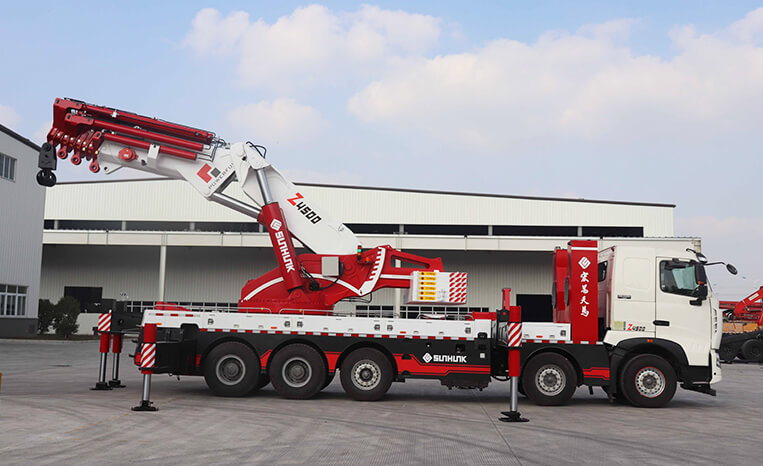

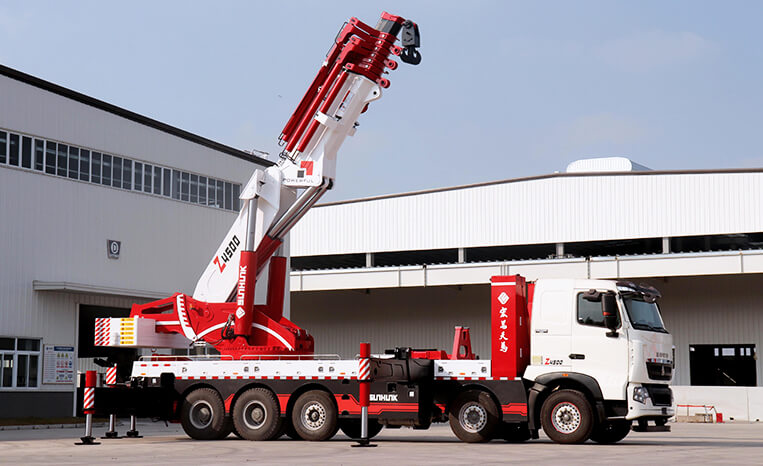

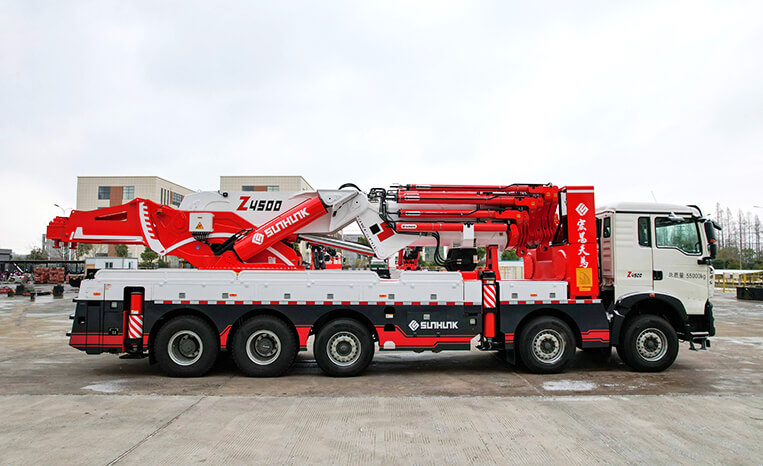

Z4500
High Performance Crane
Rated load(kg)
92000
Rated lifting capacity(t.m)
450
Max. working range(m)
23.8
Applicable Working Conditions
  • Characteristic
  • Parameter
  • Case
受限空间 举重若轻


1、3.53m最低行驶高度,轻松进入老旧厂房;


2、八节液压伸缩臂选配两节手动臂,满足大幅度作业需求;


3、标配电子力矩限制系统,专注吊装作业,安全无忧;


4、标配无线遥控支腿操纵,作业更加便利;


5、标配大跨距基础液压伸缩支腿,保障作业稳定性;

Product Parameters
Key Parameter
Rated load(kg)
Rated lifting capacity(t.m)
Max. working range(m)

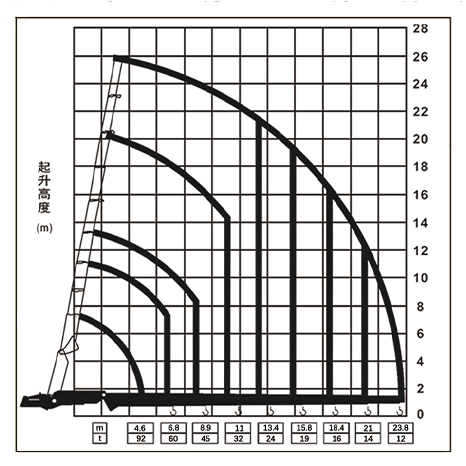

Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
92000
450
23.8
27.1
8
75
360
7948/7939
108
53000(整车)
33
