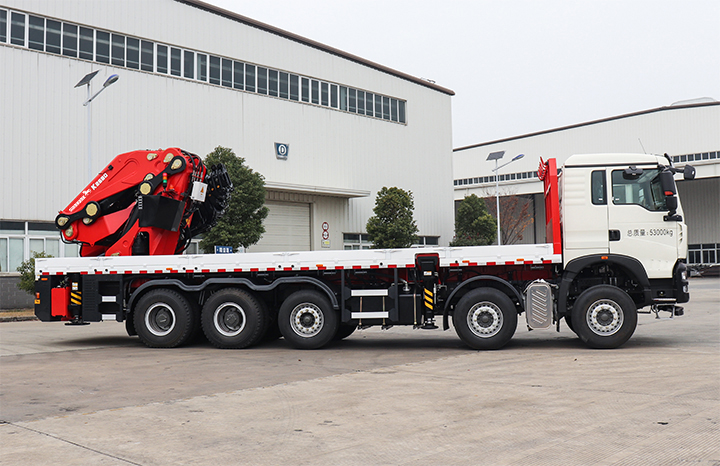

Products > Truck Mounted Crane > High Performance Crane > K2680

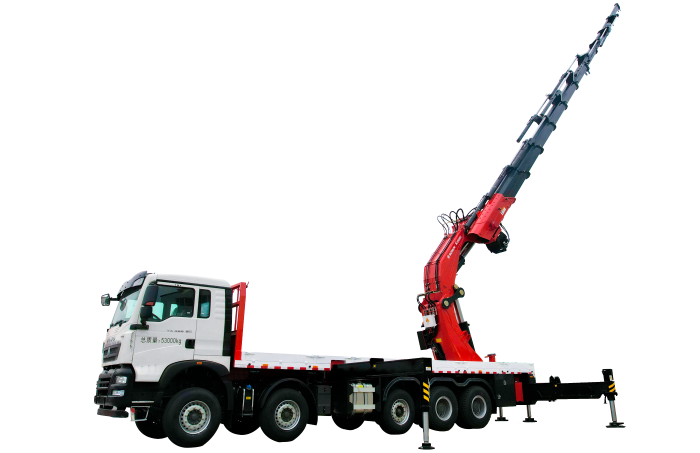

K2680
High Performance Crane
Rated load
61400kg
Rated lifting capacity
248t.m

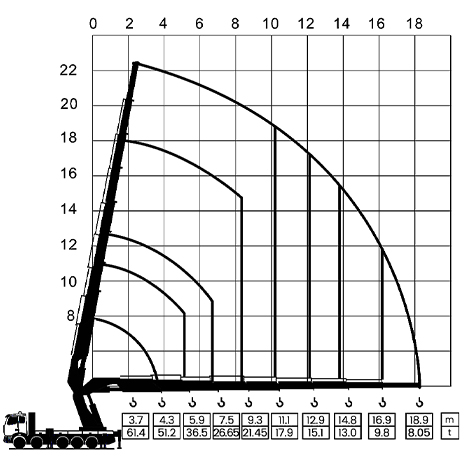

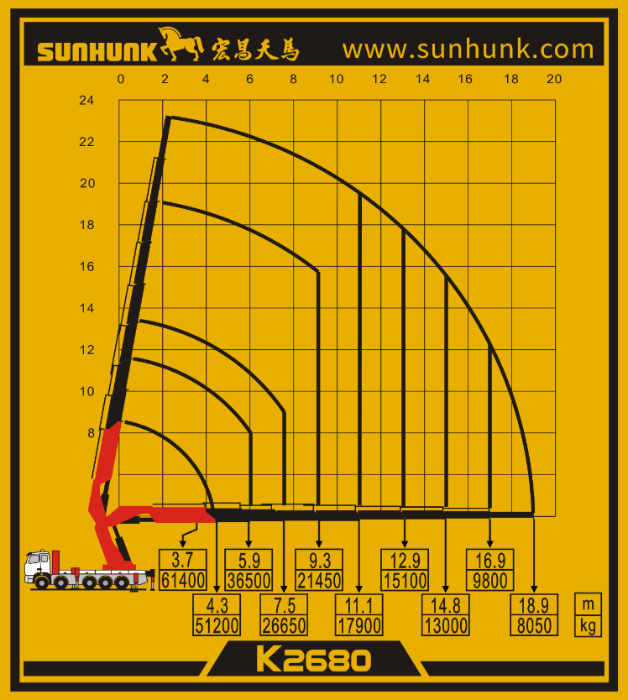

Max. working range
18.9m
  • Characteristic
  • Parameter
SUNHUNK's Most Capable All-folding Crane


♦ Multiple optional configurations (including winches and flying arms) are available to meet personalized customization needs.


♦ The structure is compact and uses high-strength steel, resulting in a lighter overall weight.


♦ Advanced hydraulic system improves the boom extension speed, achieving anti-vibration and multi-action linkage with proportional action functions.


♦ The entire vehicle is electronically controlled and equipped with standard wireless remote control operating system for convenient operation.


♦ Standard large-span double-stage hydraulic telescopic legs ensure operational stability.

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
61400kg
248t.m
18.9m
22.5
8
75
360
8170/7870
115+50
39500
33
