Products > Truck Mounted Crane > High Performance Crane > H5280

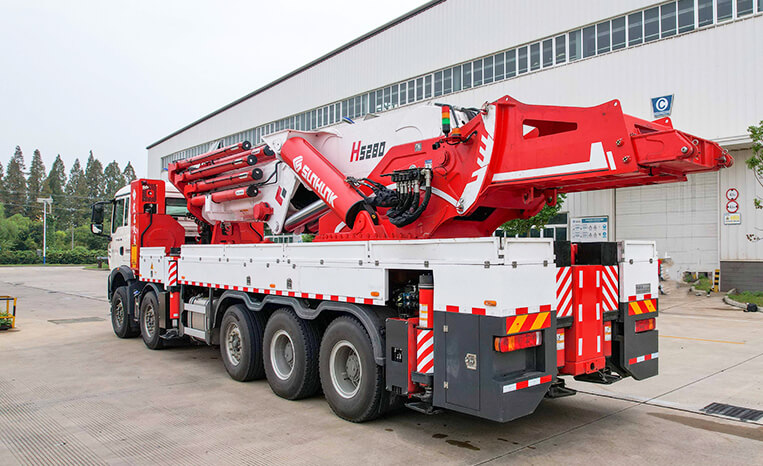

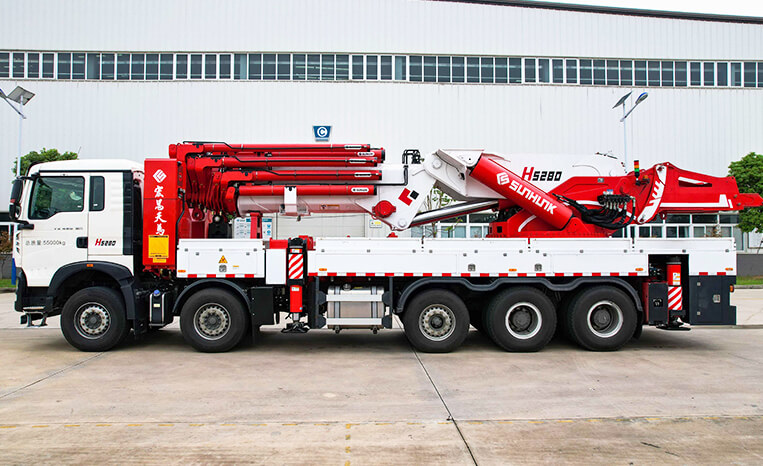

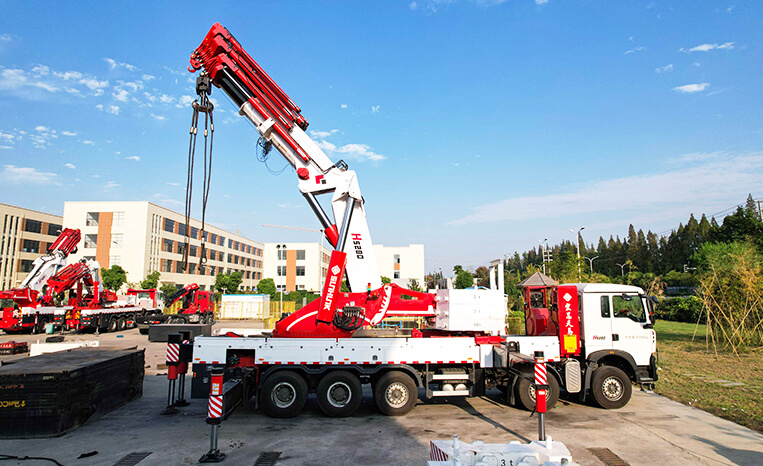

H5280
High Performance Crane
Rated load（kg）
135000
Rated lifting capacity（t.m）
528
Max. working range（m）
27
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
宏昌天马大臂最长大吨位


1、多种可选配置（卷扬、飞臂），可满足个性化定制需求；


2、结构紧凑，应用高强度钢材，整机自重更轻；


3、先进的液压系统，提高吊臂伸缩速度，实现吊臂防抖和多动作联动与比例动作功能；


4、全车电控操作，上、下车标配无线遥控操纵系统，作业更加便利;


5、标配大跨距双级液压伸缩支腿，保障作业稳定性;

Product Parameters
Key Parameter
Rated load（kg）
Rated lifting capacity（t.m）
Max. working range（m）
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
135000
528
27
29.2
8
75
360
7948/7939
95+95
55000(整车)
33
Engineering Cases
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library, the glass is 15*2.6 meters and weighs 12 tons. It needs to be lifted up from the side and then rotated to transport the glass to a height of 22.3 meters. The super-long boom and remote control precise operation perfectly fit the installation of the library glass. Before using the SUNHUNK 4500 and 6680, four 15-meter by 4-meter glass panes were lifted with two truck cranes. Only one glass could be lifted per day, which was unsafe. However, after using these two machines, work efficiency was greatly improved, and the safety factor was also increased.
Narrow Cave Rescue
Narrow Cave Rescue
In a narrow cave rescue operation, a truck crane is unable to enter the narrow entrance of the cave to carry out the rescue operation. The SUNHUNK 4500, with a height of only 3.5 meters and powerful lifting capacity, is capable of easily completing the rescue mission in this situation.
Workshop crane installation
Workshop crane installation
In a workshop crane installation, due to the limited height of the workshop, a truck crane is unable to lift the load. The owner then arranges two large-tonnage SUNHUNK cranes to work together and complete this lifting task.
Installation of 800-ton Pressing Machine
Installation of 800-ton Pressing Machine
Due to limited space in the workshop and the precise positioning required for the installation of the equipment, the SUNHUNK  large-tonnage crane successfully completed the lifting task with its powerful lifting capacity and excellent precision operation.
