Products > Truck Mounted Crane > Stiff Boom Crane > S3805

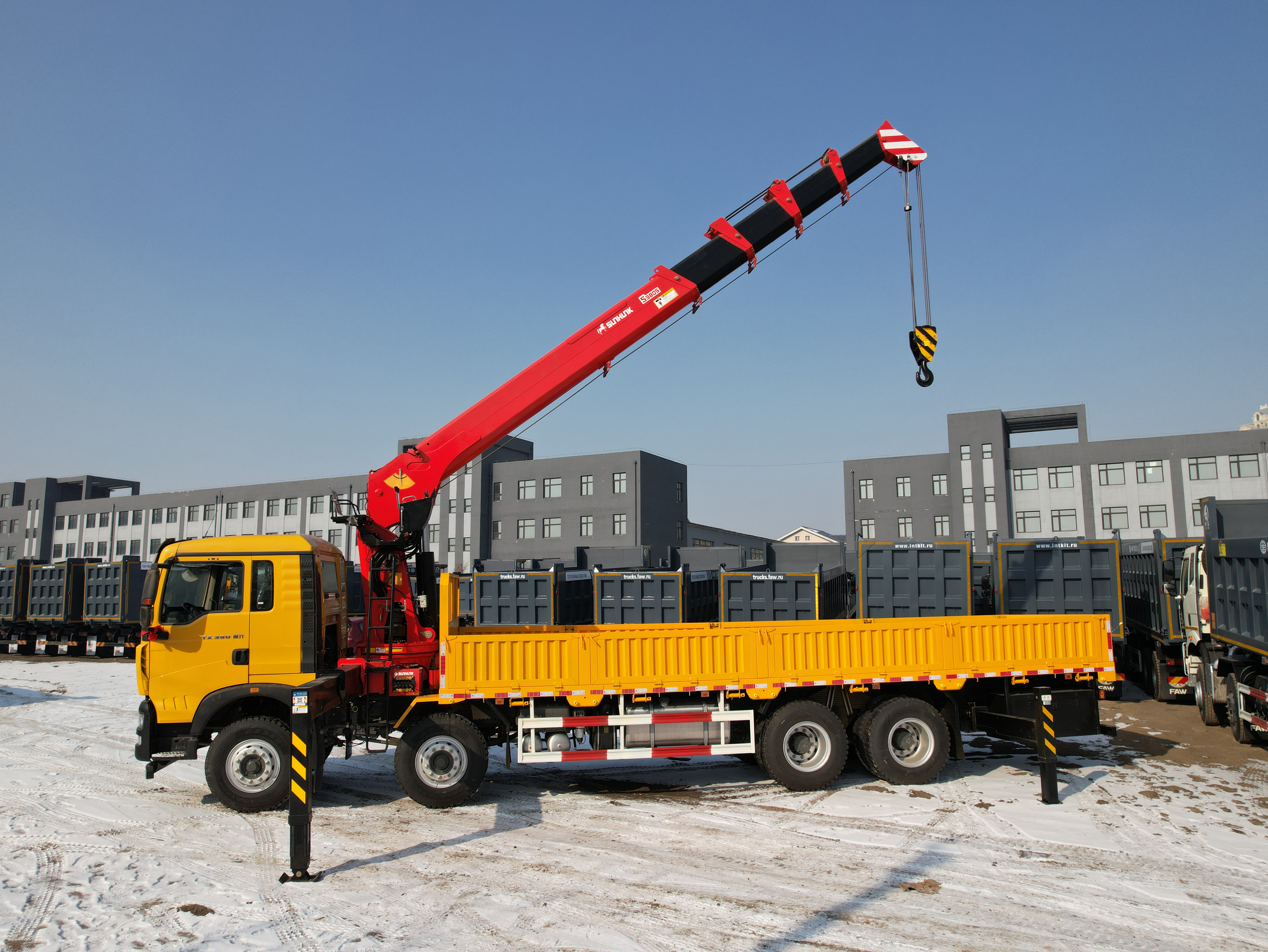

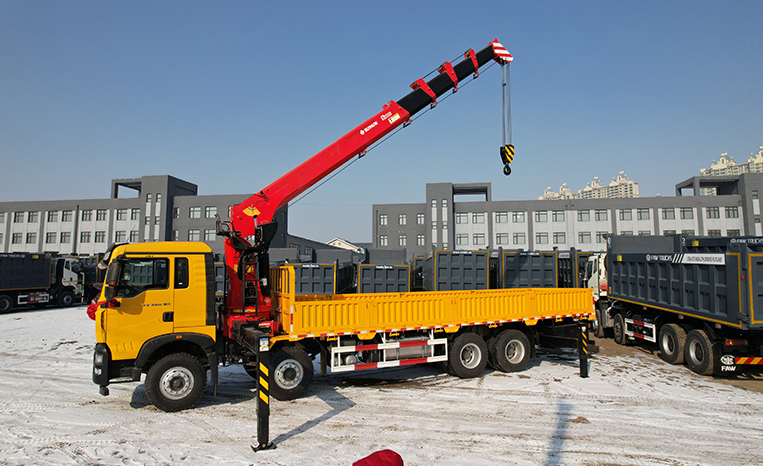

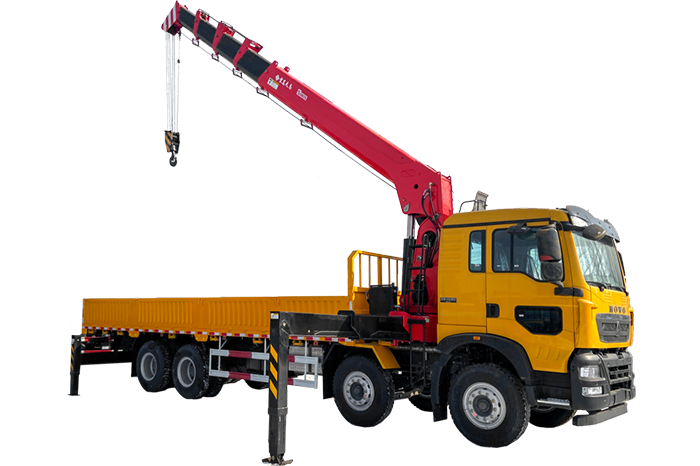

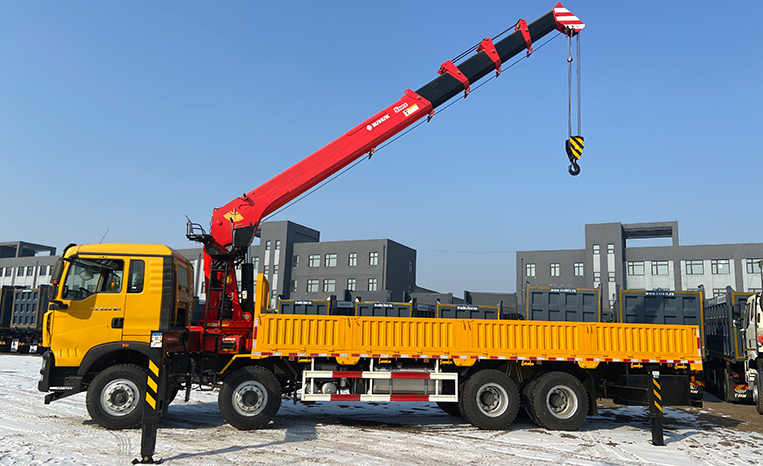

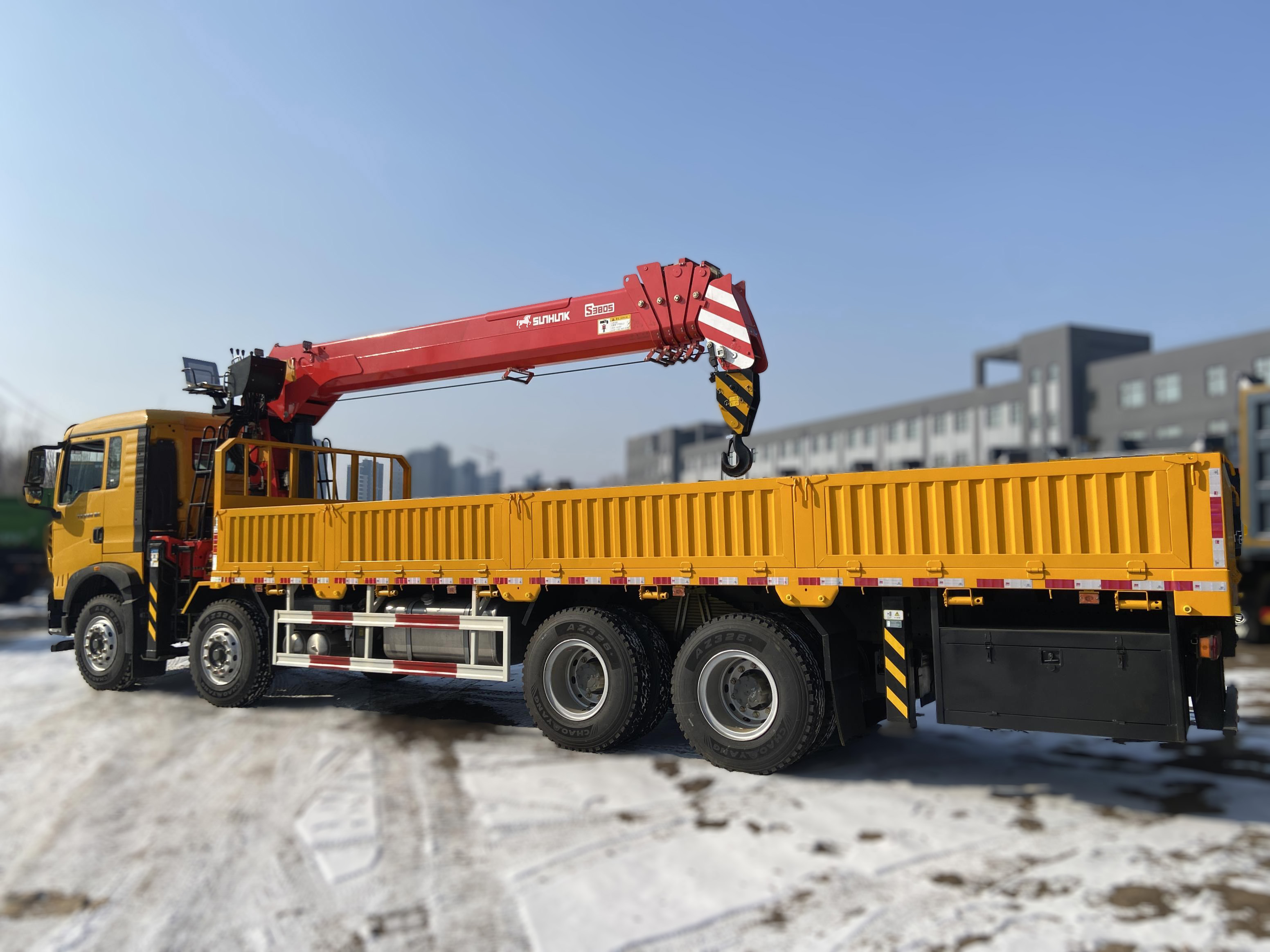

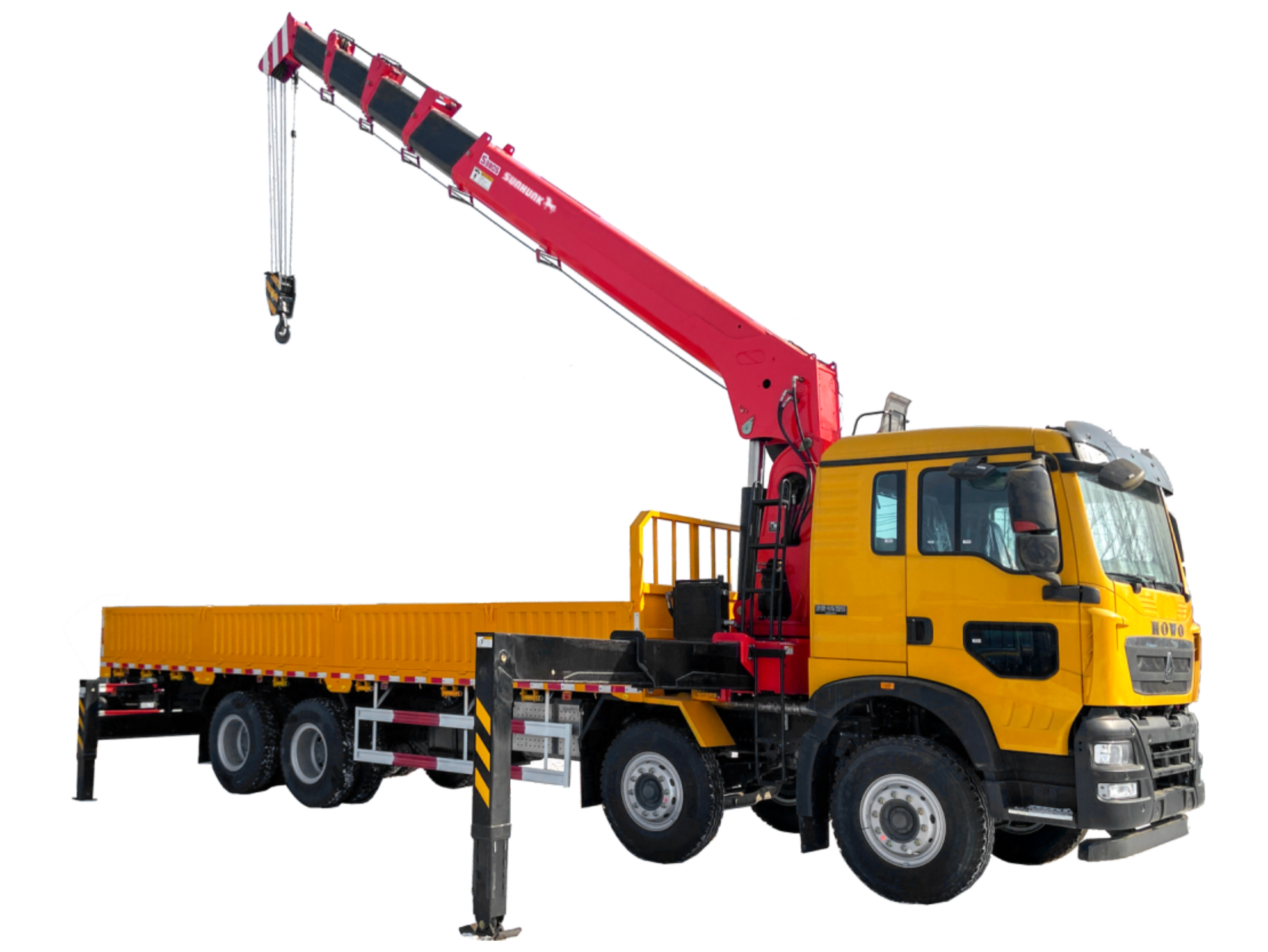

S3805
Stiff Boom Crane
Rated load
14000kg
Rated lifting capacity
38t.m
Max. working range
19.5m
  • Characteristic
  • Parameter
"Five-Double" Configuration All-Round Player with Versatile Skills.


♦ Octagon boom, with light self-weight and 15% higher carrying capacity than the same tonnage hexagon boom.

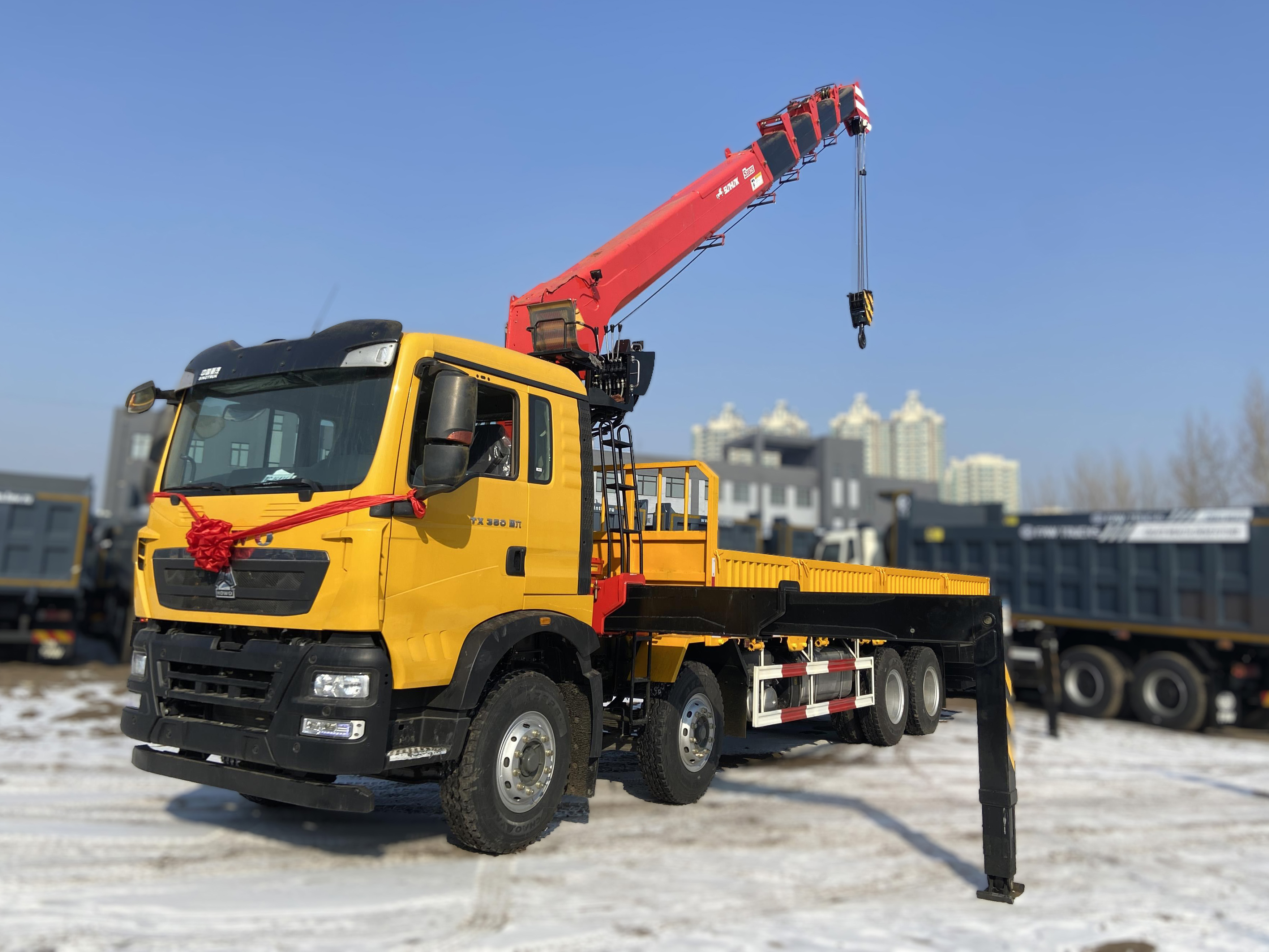

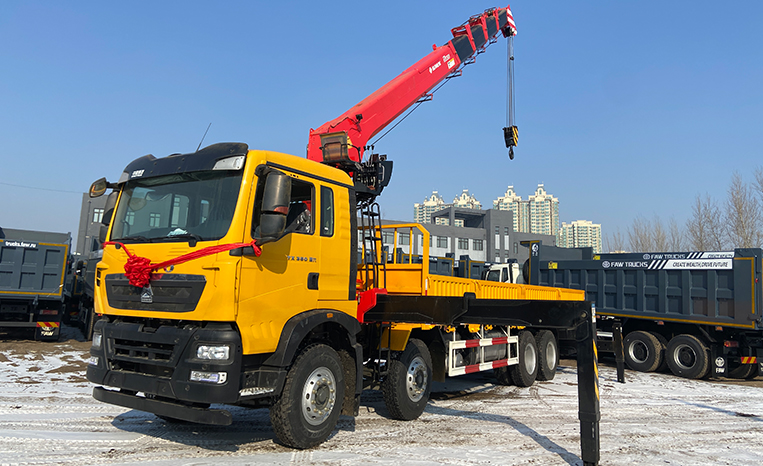

♦ Double-stage legs, with a lateral span of 7.39m, for more stable operation.


♦ Dual-axisReducer, with stronger operating capacity and more stable rotation.


♦ Dual extendable cable, with a load-bearing extension safety factor 40% higher than the industry's same level.


♦ Optional auxiliary lifting device to meet different lifting requirements of customers.

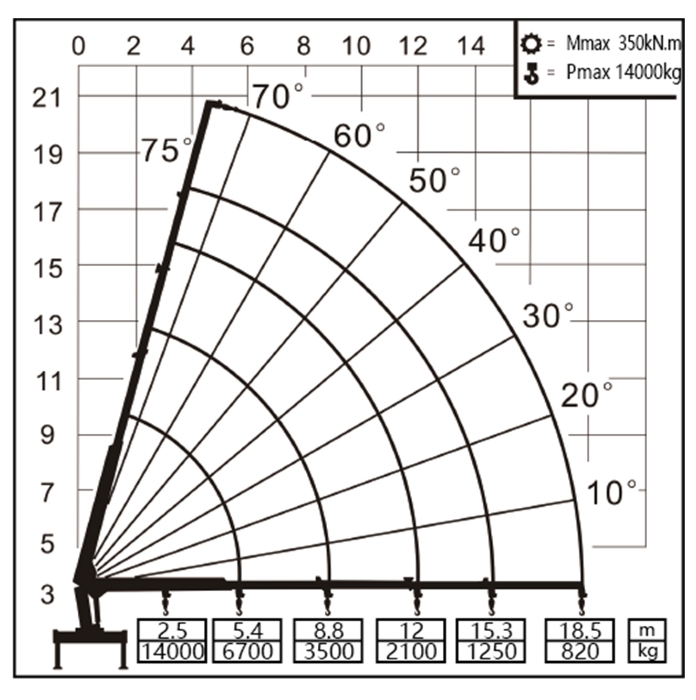

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
14000kg
38t.m
19.5m
20.7
5
75
360
7394
80+40
6200
32
