Products > Truck Mounted Crane > High Performance Crane > H8280

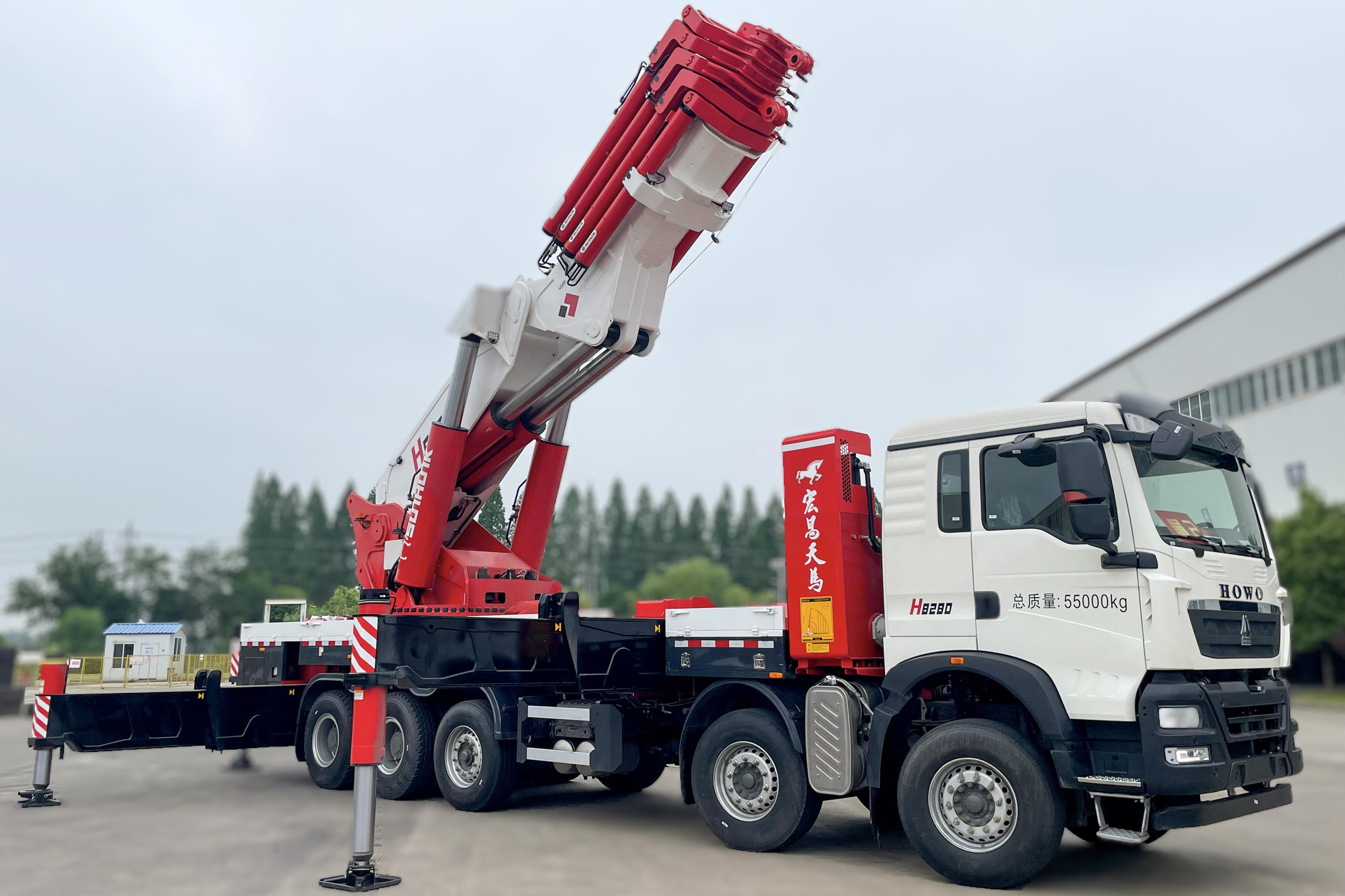

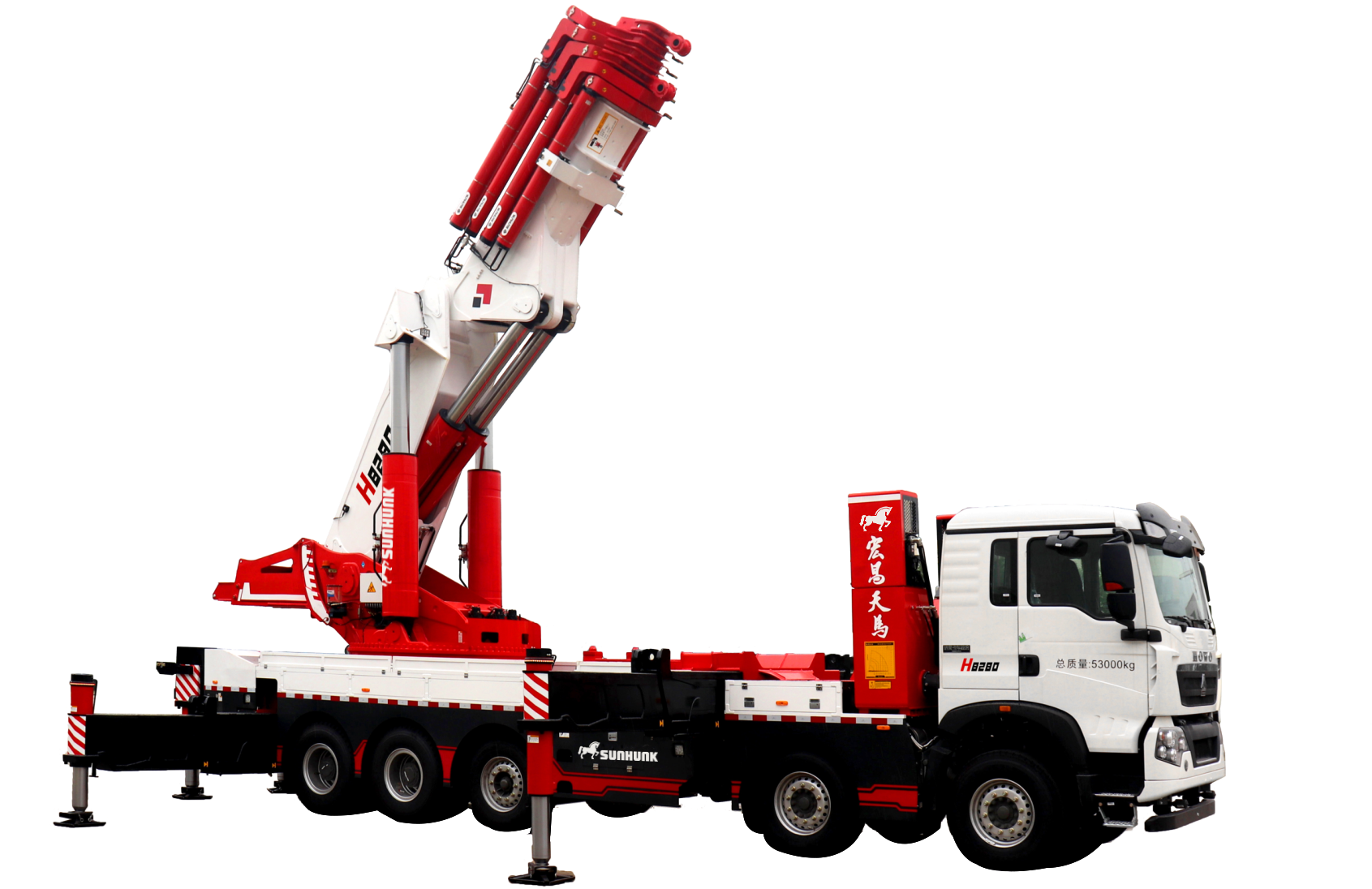

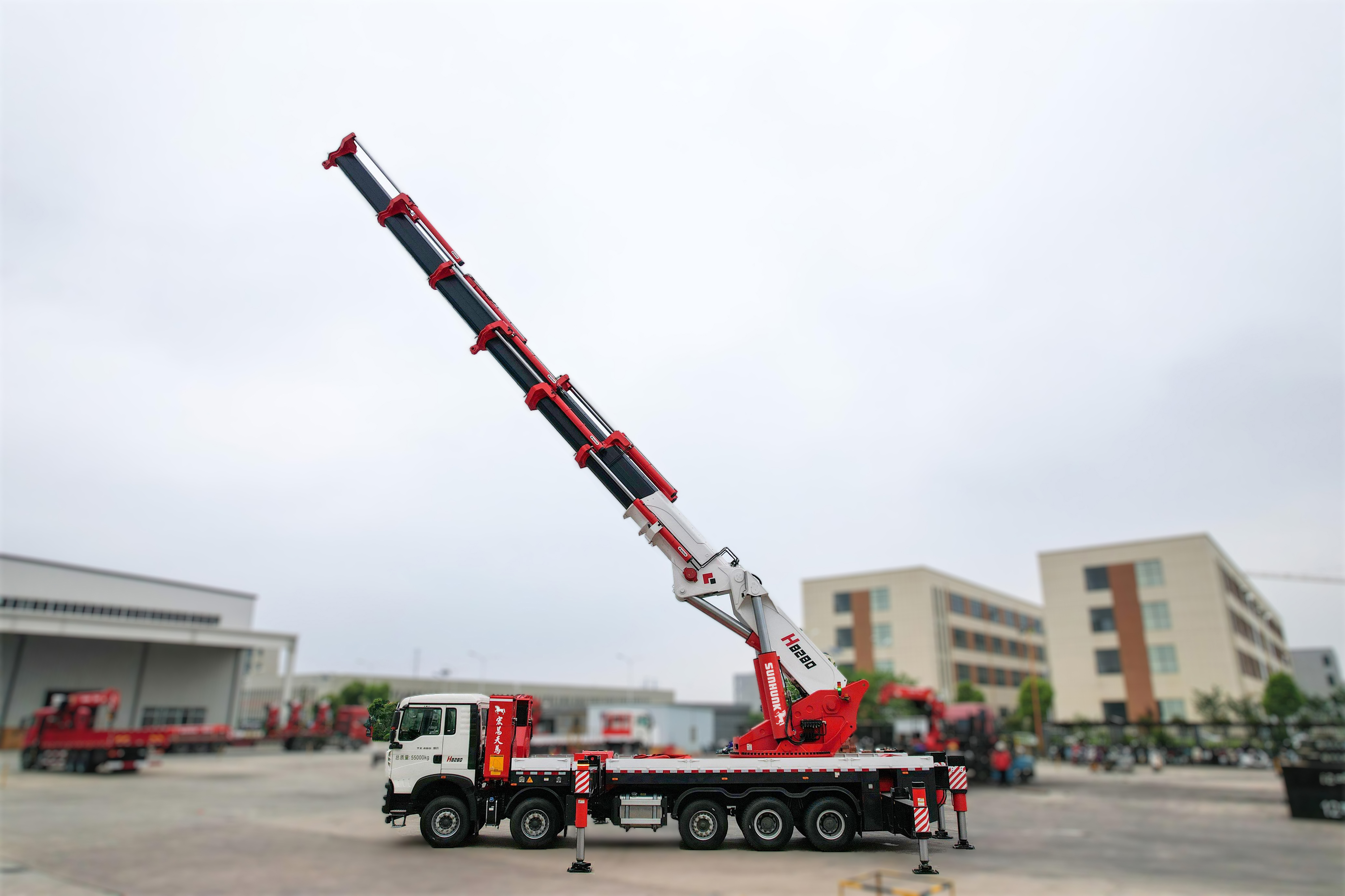

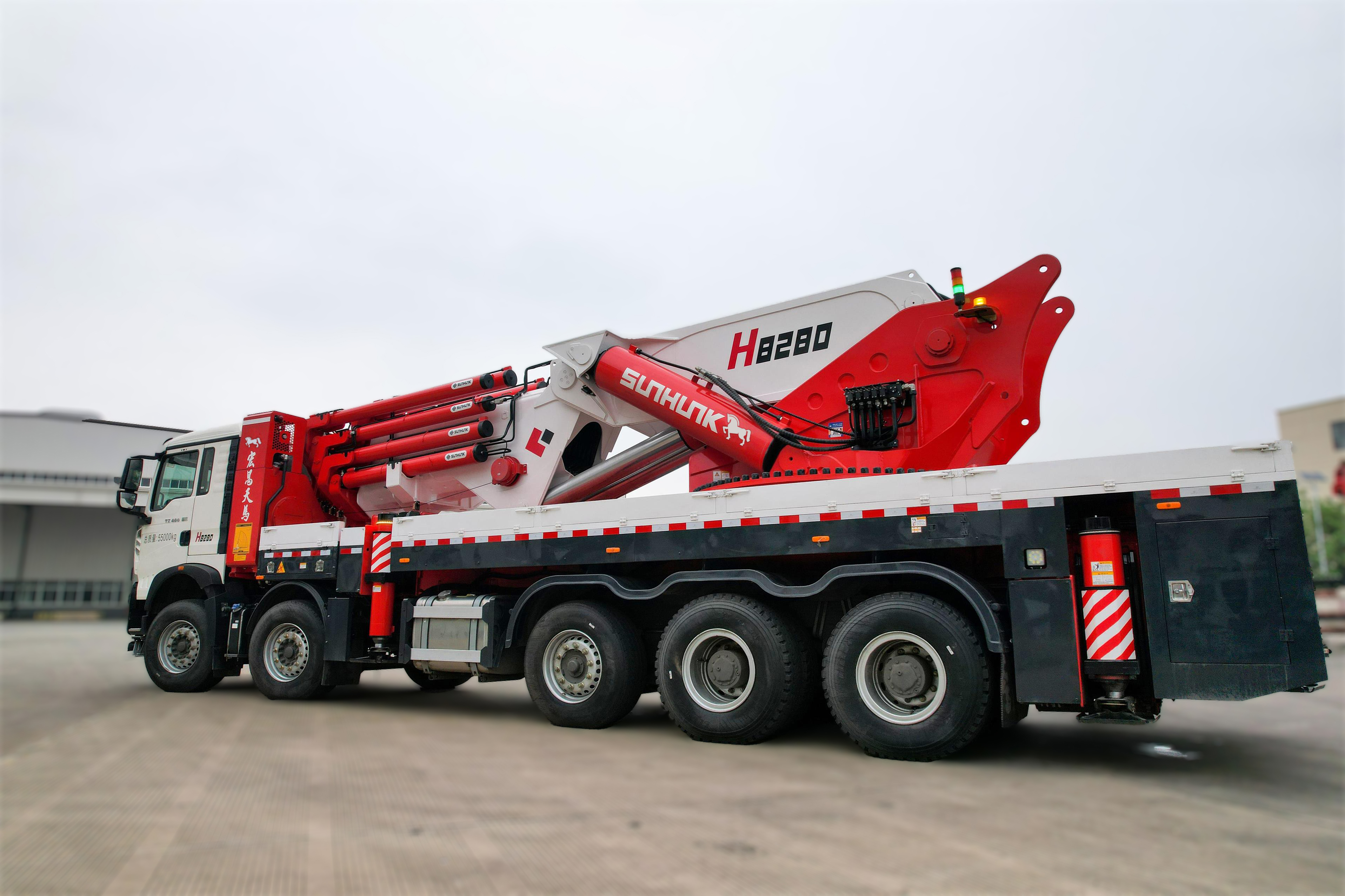

H8280
High Performance Crane
Rated load
185000
Rated lifting capacity
828
Max. working range
19.2
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
Hongchang Tianma is the most capable of lifting large tonnage

1. Minimum driving height of 3.75m, easy access to the handling plant;


2. Up to eight telescopic arms can be selected to meet the needs of large-scale operations;


3. Standard electronic torque limit system, dedicated to lifting operations, safe and worry free;


4. Equipped with wireless remote control leg operation as standard, making work more convenient;


5. Intelligent safety control system with independent intellectual property rights, with wider scalability:

whole vehicle remote control, overload protection, anti rollover, load weighing

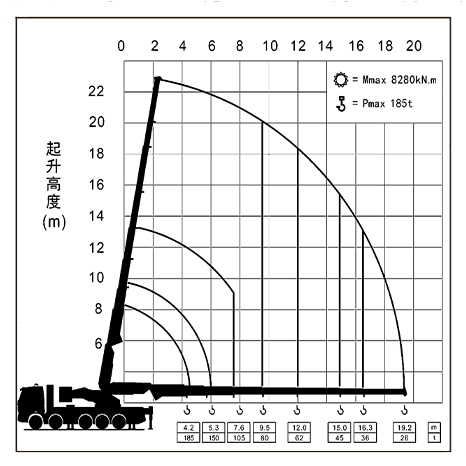

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
185000
828
19.2
22
6
75
360
7900
180
55000(整车)
33
Engineering Cases
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library
Glass lifting at the Beijing Tongzhou Library, the glass is 15*2.6 meters and weighs 12 tons. It needs to be lifted up from the side and then rotated to transport the glass to a height of 22.3 meters. The super-long boom and remote control precise operation perfectly fit the installation of the library glass. Before using the SUNHUNK 4500 and 6680, four 15-meter by 4-meter glass panes were lifted with two truck cranes. Only one glass could be lifted per day, which was unsafe. However, after using these two machines, work efficiency was greatly improved, and the safety factor was also increased.
Narrow Cave Rescue
Narrow Cave Rescue
In a narrow cave rescue operation, a truck crane is unable to enter the narrow entrance of the cave to carry out the rescue operation. The SUNHUNK 4500, with a height of only 3.5 meters and powerful lifting capacity, is capable of easily completing the rescue mission in this situation.
Workshop crane installation
Workshop crane installation
In a workshop crane installation, due to the limited height of the workshop, a truck crane is unable to lift the load. The owner then arranges two large-tonnage SUNHUNK cranes to work together and complete this lifting task.
Installation of 800-ton Pressing Machine
Installation of 800-ton Pressing Machine
Due to limited space in the workshop and the precise positioning required for the installation of the equipment, the SUNHUNK  large-tonnage crane successfully completed the lifting task with its powerful lifting capacity and excellent precision operation.
