Products > Refrigerated Truck > 3L body > Meat-hanging

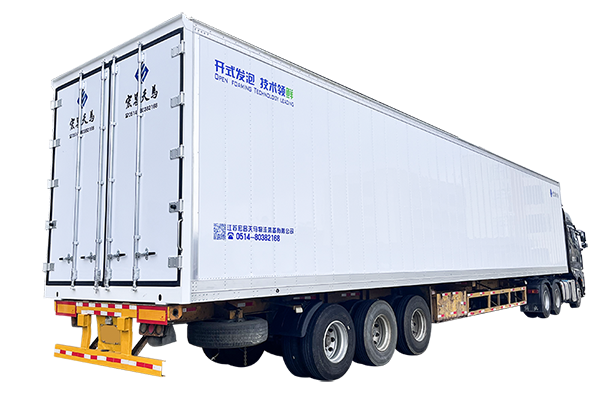

Meat-hanging
3L body
Process Standard
Foaming Process
Inner/Outer Skin Material
Food-grade Thermoplastic/Pre-painted Aluminum Sheet
Insulation Material
Polyurethane
Applicable Working Conditions
  • Characteristic
  • Parameter
High Strength

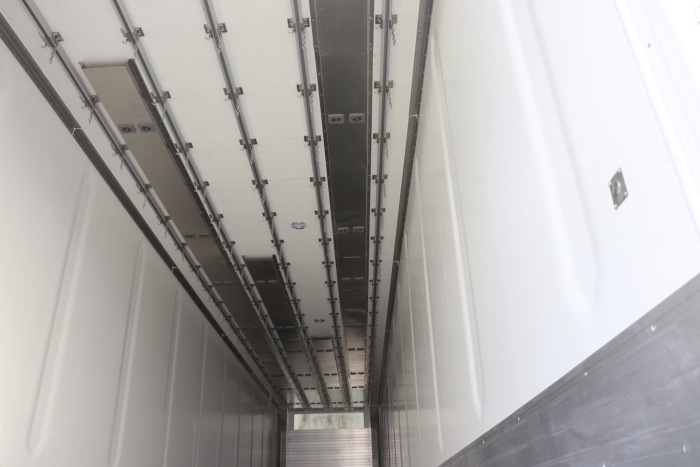

The body structure adopts a riveting process, and the inside of the compartment plate adopts a steel frame loading structure with high tensile strength. The floor uses a T6-level high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

High Insulation

Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

High Aesthetics

Using pre-painted metal panels, the overall appearance is bright and upscale, improving corporate image.

Lightweighting

The body weight of the container is more than 500 kg lighter than a steel box, helping to carry more goods or save fuel.

Green Environmental Protection

The container body is made entirely of food-grade materials, safer for transporting goods.

Product Parameters
Key Parameter
Process Standard
Inner/Outer Skin Material
Insulation Material
Vehicle Standard
Total Length(mm)
Total Width(mm)
Total Height(mm)
Internal Length (mm)
Internal Width (mm)
Internal Height (mm)
Internal Volume(m³)(理论)
Insulation Panel Top (mm)
Insulation Panel Sides(mm)
Insulation Panel Front(mm)
Insulation Panel Back(mm)
Insulation Panel Bottom(mm)
Outer Skin
Bottom Skin Material
Bottom Inner Structure
Wear Plate
Bottom Drainage Hole
Parameter Value
Foaming Process
Food-grade Thermoplastic/Pre-painted Aluminum Sheet
Polyurethane
3L Meat-hanging refrigerated container body
13716/14630
2550/2550
2896/2896
13536/14450
2396/2396
2580/2580
84/89.5
100
70
100
80
 200 (35mm Castle-Type Floor)
Pre-painted Aluminum Sheet
Thermoplastic Sheet
High-Strength T6 Castle-Type Ventilated Aluminum Floor (Approximately 35mm)
High-Strength Aluminum Profile (Approximately 300mm High)
SUNHUNK Standard Configuration, Two Each Front and Back
