Products > Refrigerated Truck > Refrigerated bicycle > Pharmaceuticals
Pharmaceuticals
Refrigerated bicycle
Process Standard
Foaming Process
Inner/Outer Skin Material
Food-grade Thermoplastic/Pre-painted Metallic Sheet
Insulation Material
Polyurethane
Applicable Working Conditions
  • Characteristic
  • Parameter
High Insulation

Using open foaming technology, the density of the heat insulation layer is more uniform without voids or trapped air, for more durable heat insulation.

High Strength

The body structure adopts a locking and riveting combination process, with high tensile strength. The floor uses a T6-level high-strength aluminum guide rail full welding process to enhance overall load-bearing capacity and comply with domestic working conditions.

High Aesthetics

Using pre-painted metal panels, the overall appearance is bright and upscale, improving corporate image.

Green Environmental Protection

The container body is made entirely of food-grade materials, safer for transporting goods.

Cold Air Circulation

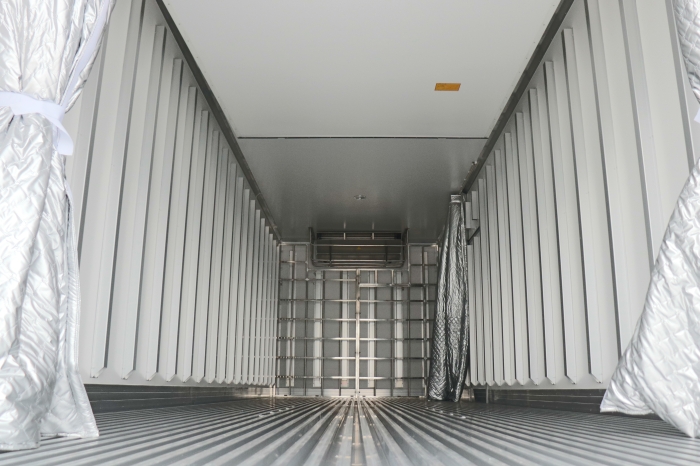

The floor uses a Great Wall-type ventilation guide rail, in combination with vertical ventilation slots on the side plates and ventilation bars on the door panels, for efficient air circulation inside the container and uniform temperature distribution, safer for transporting fruits, vegetables, and flowers.

Ventilation system with strong airflow

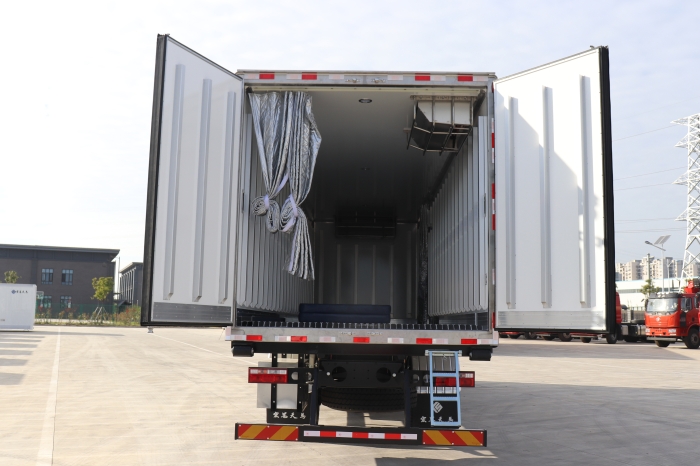

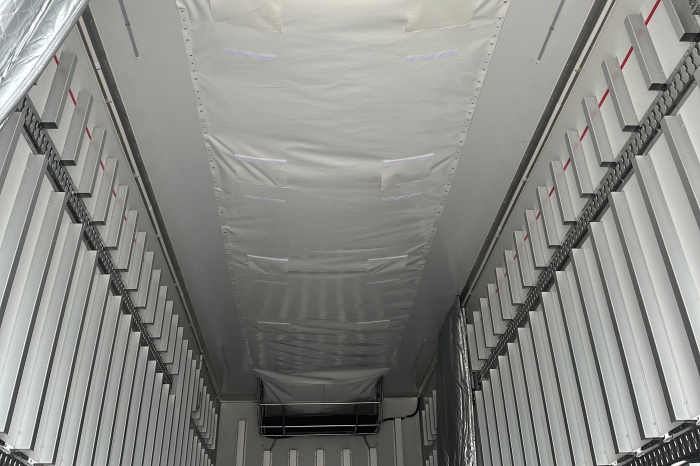

The medicine vehicle adopts a special ventilation slot structure, and medical-specific aluminum ventilation strips are installed on the body of the vehicle around the perimeter. The floor uses a 50mm fort-type aluminum guide rail to ensure smooth three-dimensional air circulation in the box body, which meets the medical monitoring standards.

Product Parameters
Key Parameter
Process Standard
Inner/Outer Skin Material
Insulation Material
Vehicle Standard
Insulation Panel Top (mm)
Insulation Panel Sides (mm)
Insulation Panel Front (mm)
Insulation Panel Back (mm)
Insulation Panel Bottom (mm)
Outer Skin
Bottom Skin Material
Bottom Sub-frame

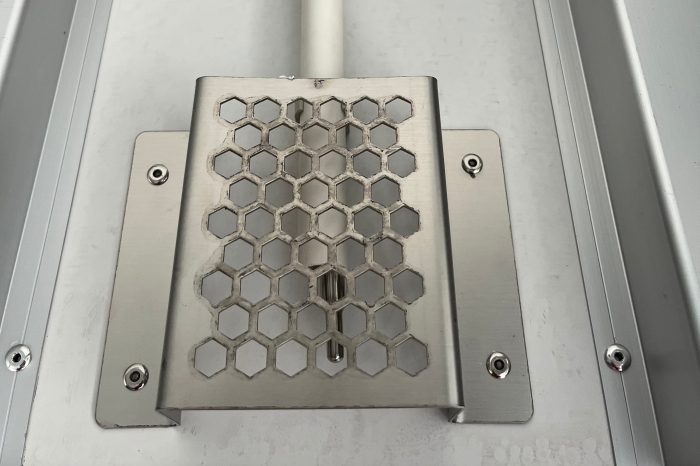

Bottom Drainage Hole
Rear Door Frame and Hardware
Wear Plate
Floor Configuration

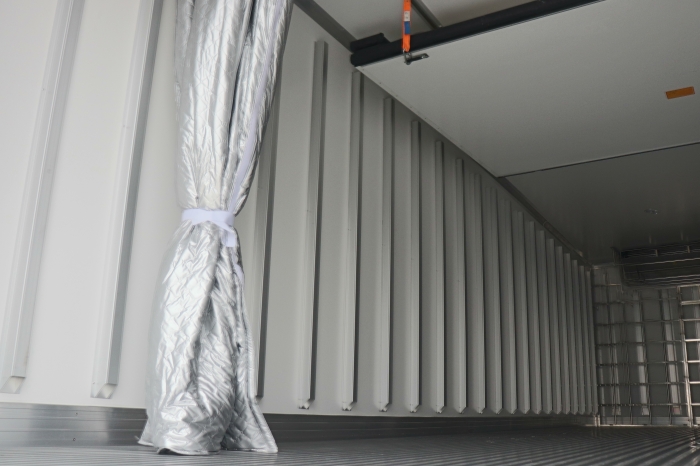

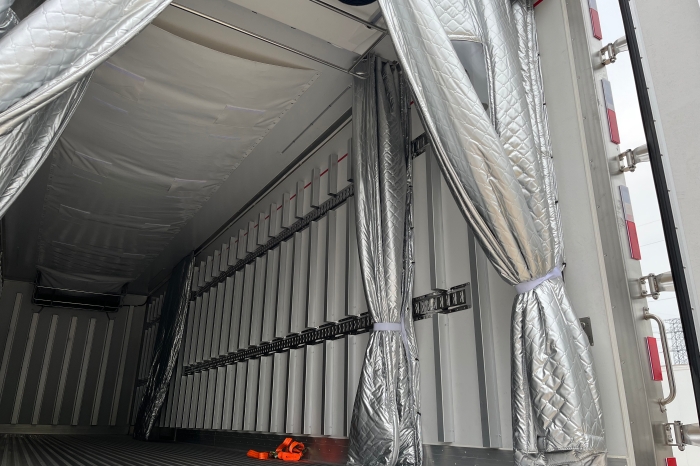

Medical Curtain
Medical Ventilation Structure

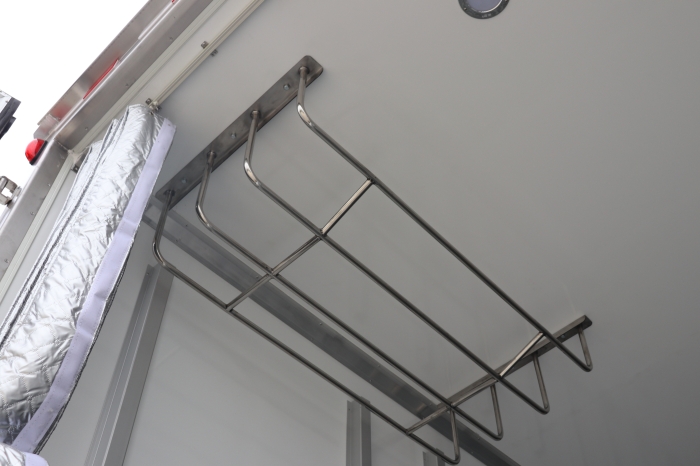

Meat Sliding Track
Seafood Pre- embedding
Parameter Value
Foaming Process
Food-grade Thermoplastic/Pre-painted Metallic Sheet
Polyurethane
refrigerated truck for pharmaceuticals
100
100
100
100
130(including 50mm Castle-Type Aluminum Guide)
Pre-painted Aluminum Sheet
Thermoplastic Sheet
 High-Strength Steel
SUNHUNK Standard Configuration, 2 at the Front or 2 at Both Ends
304 Stainless Steel
High-Strength Aluminum Profile (Approximately 150mm High)
Castle-Type Aluminum Guide (Approximately 50mm)
Ordinary PVC Curtain/Waterproof Cotton Curtain

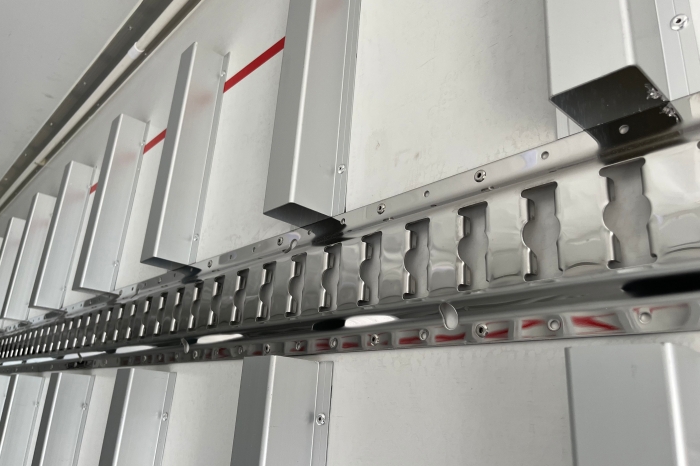

Rectangular Aluminum Alloy Medical Ventilation Strip with a Spacing of 400mm, Front Plate Size of 100*80mm, Side and Back Plate Size of 50*50mm
