Products > Truck Mounted Crane > Knuckle Boom Crane > K108

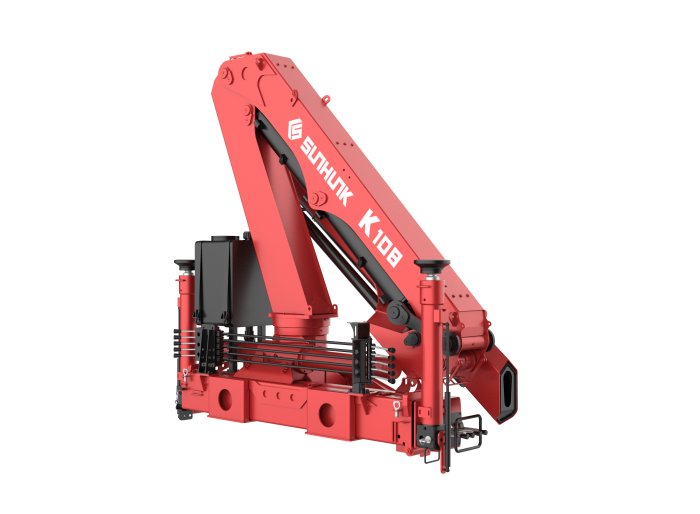

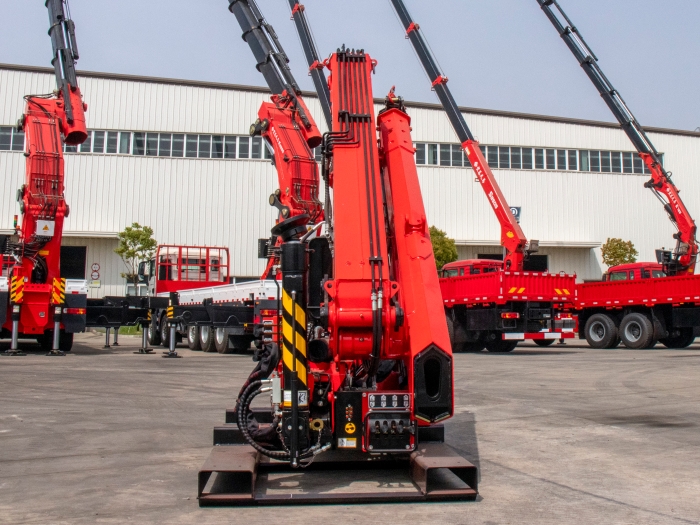

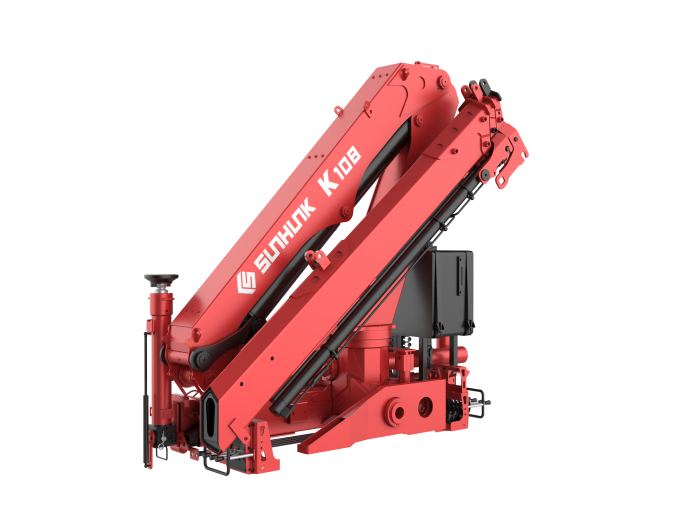

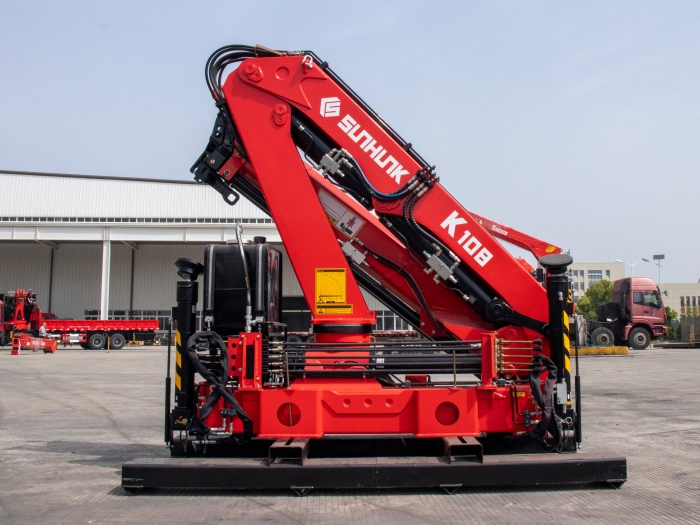

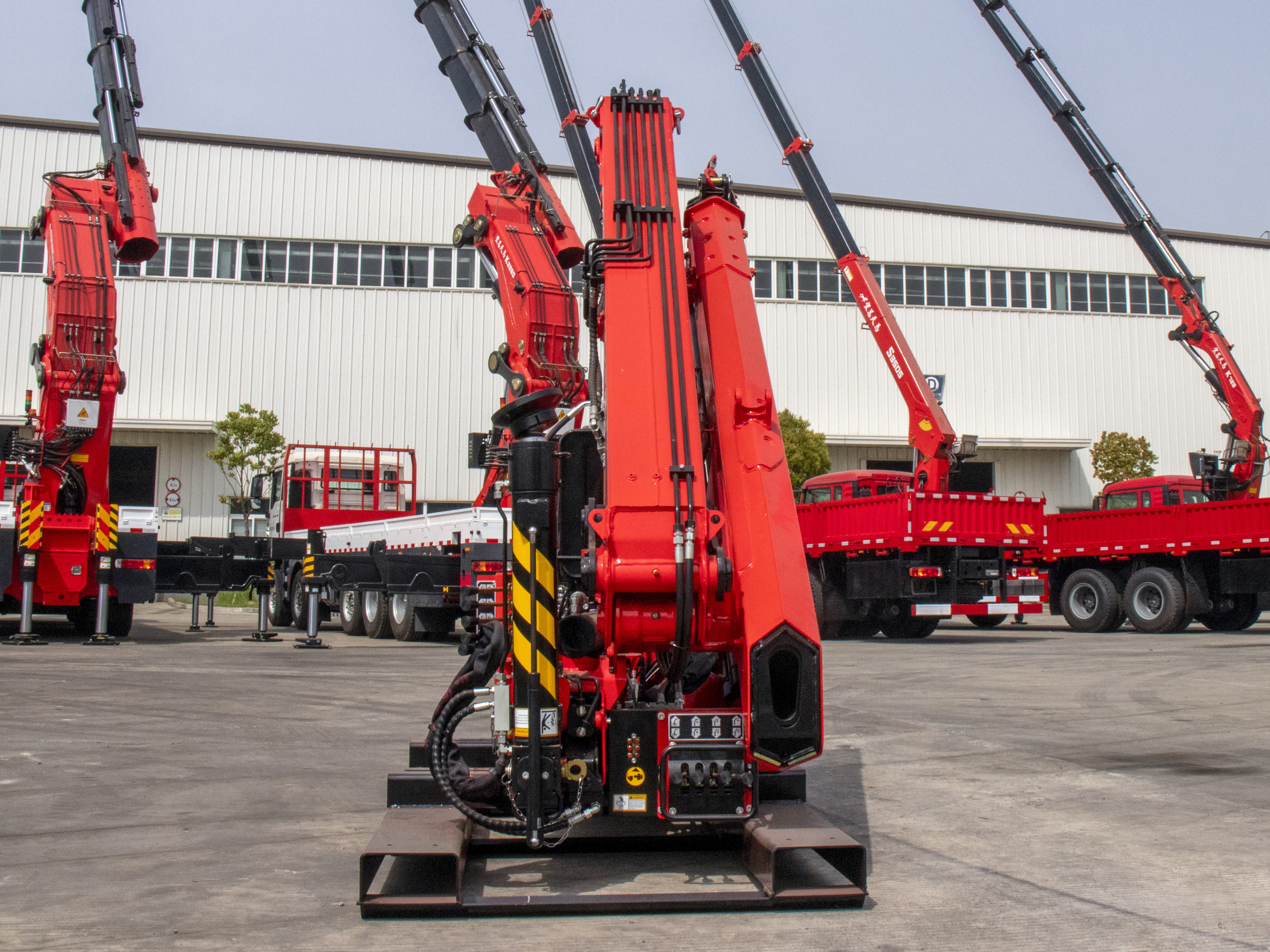

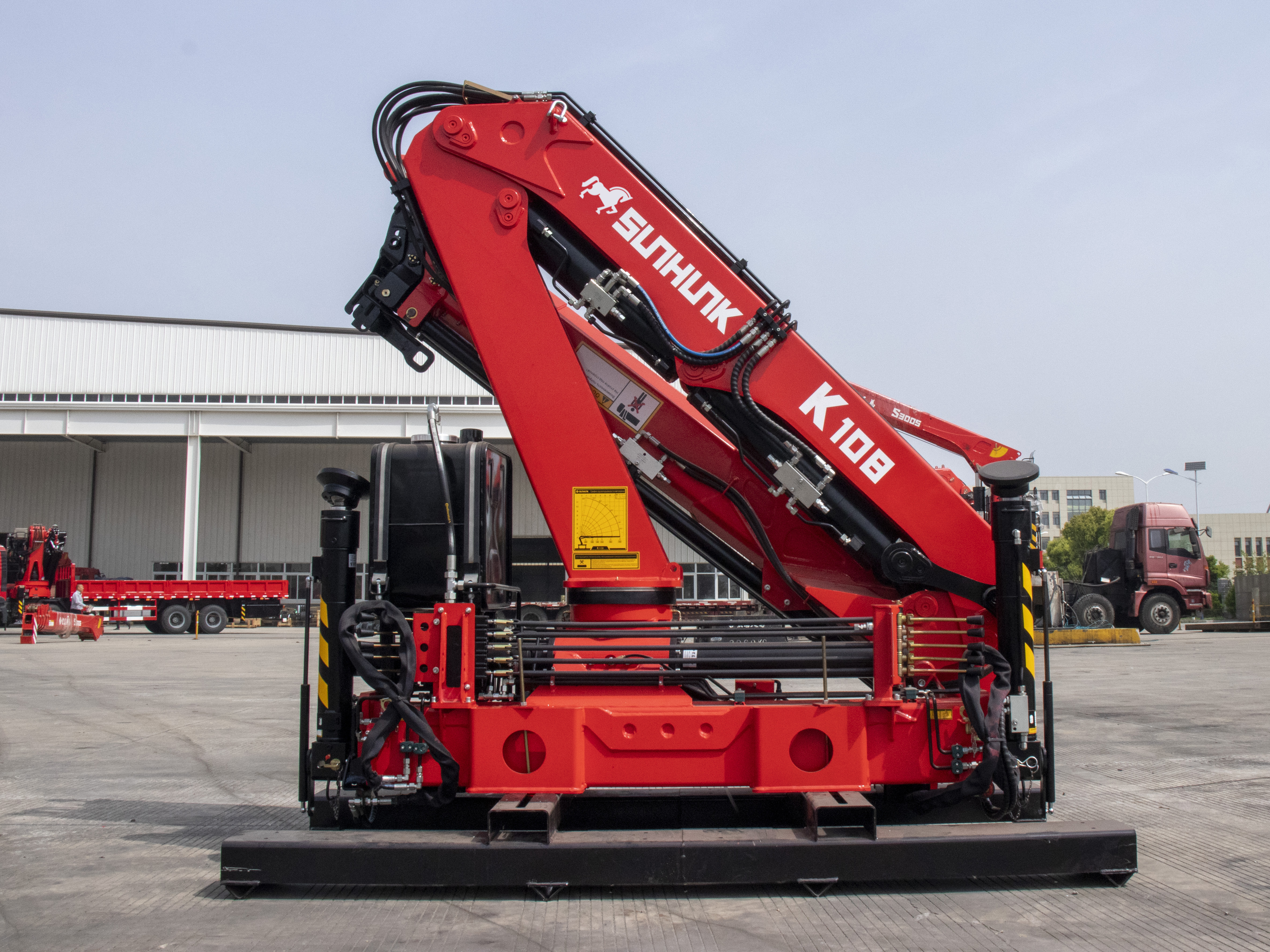

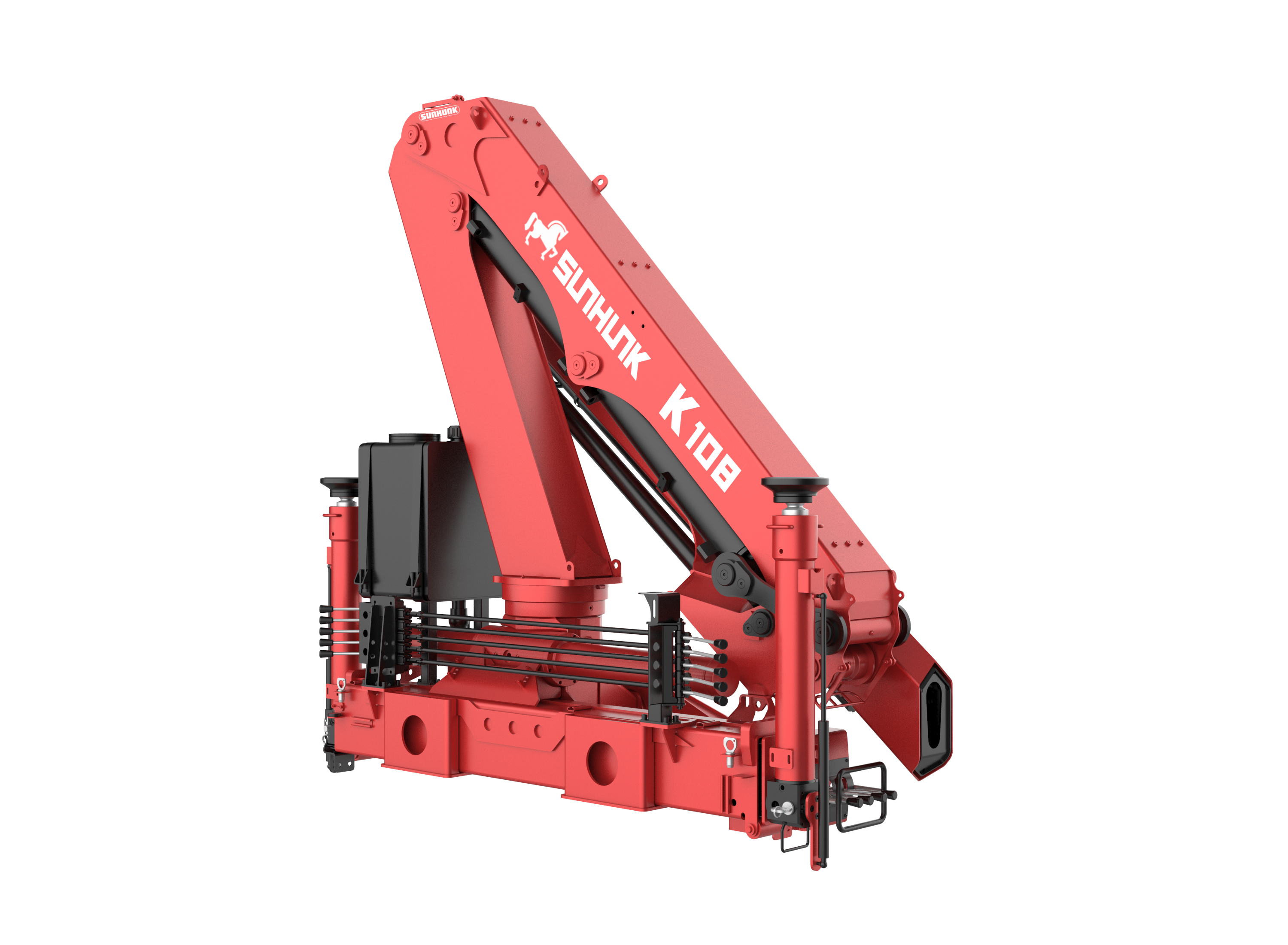

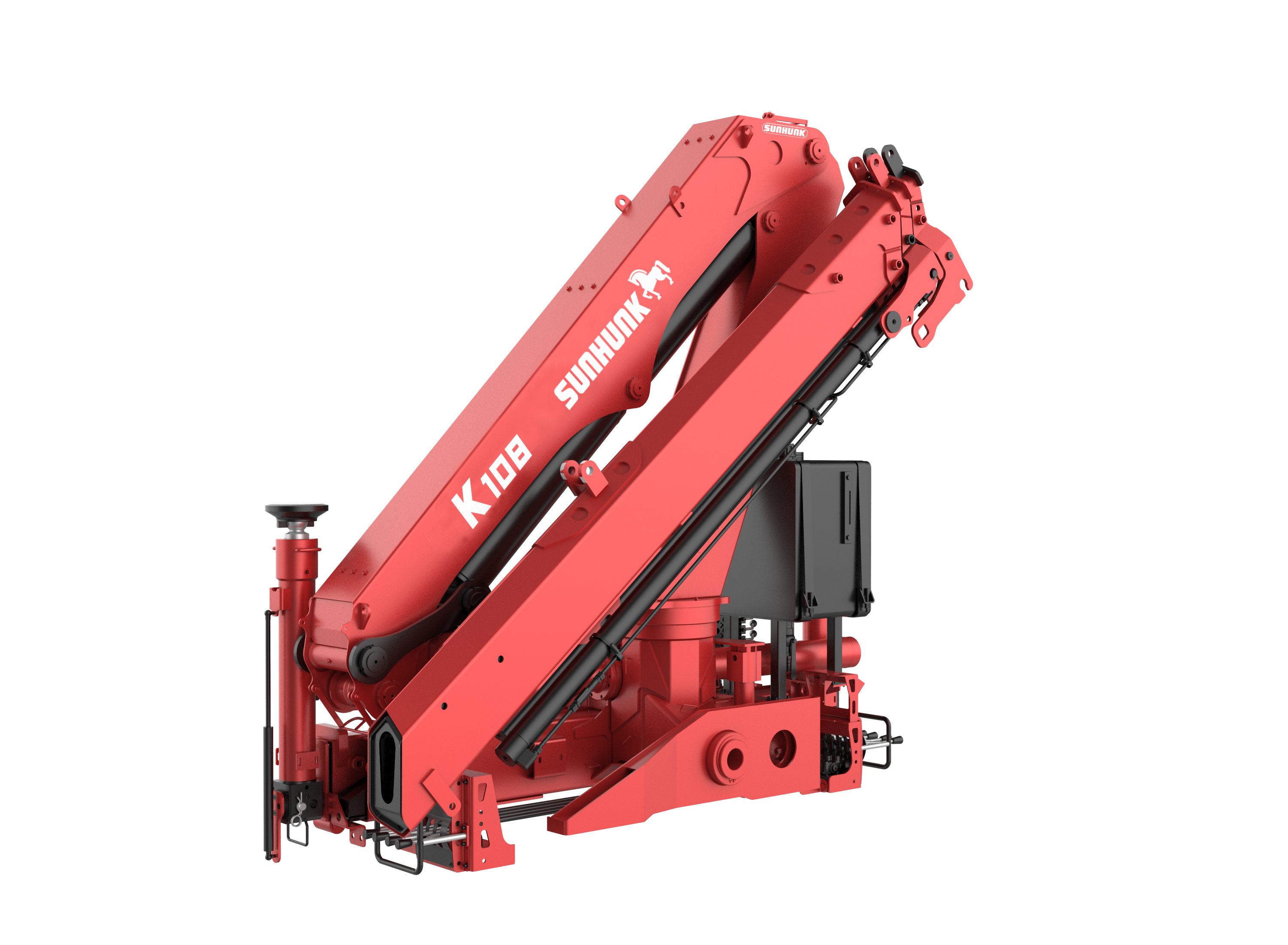

K108
Knuckle Boom Crane
Rated load
5000kg
Rated lifting capacity
10.8t.m
Max. working range
8.15m
Applicable Working Conditions
Inquiry
  • Characteristic
  • Parameter
  • Case
Lightweight and Portable, Efficient Operation


♦ Two extendable boom sections, with a maximum working range of 8.15 meters.


♦ The main body plate of the crane is made of high-strength steel, ensuring structural strength while the weight of the crane is only 1600kg.


♦ Customized hydraulic key components to enhance product competitiveness.


♦ Optional four-section extendable boom to meet personalized customization needs.


♦ Complies with domestic and international standards and regulations.


♦ The hydraulic valve lock uses high-quality brands for higher reliability.


♦ Manual flip vertical cylinder for simpler and more flexible operation, ensuring stability during operations.


♦ Equipped with high-pressure filter to effectively control hydraulic oil cleanliness and increase continuous operating ability.


♦ Rack and pinion swivel structure for smoother and more powerful swiveling.

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
5000kg
10.8t.m
8.15m
10.77
3
85
360
4830
40
1600
30
Engineering Cases
Brick lifting
Brick lifting
Guangxi brick factory, user Mr. Zhuang from K430 telescopic arm, has added clamps for loading and unloading aerated bricks. The distance to the back of the truck is around 8.5 meters, and the bricks weigh 4 tons. Advantage: 20-30 minutes faster than using a forklift for loading and unloading per truck.
Working condition for going upstairs
Working condition for going upstairs
For the working condition of going upstairs, the SUNHUNK folding arm product supports load extension and can be easily adapted to various equipment working conditions for going upstairs with the help of remote control/auxiliary arm. This allows for easy handling of various equipment and materials when going upstairs.
Negative angle operation of folding arm
Negative angle operation of folding arm
For the task of lifting equipment to the interior of a building from the road, where there is a sinking at the first floor location, which makes it impossible for a straight arm crane to lift, the SUNHUNK folding arm has a negative angle lifting capability of 15 degrees. This allows for easy lifting of the equipment into the interior of the building.
Factory Equipment Lifting
Factory Equipment Lifting
Mr. Chen from Zhengzhou, Henan used our 728 to complete the installation of the equipment within the confined space of the factory. The equipment weighs around 6 tons. Advantage: A straight arm crane cannot handle this job due to the confined space.
