Products > Truck Mounted Crane > High Performance Crane > K1280

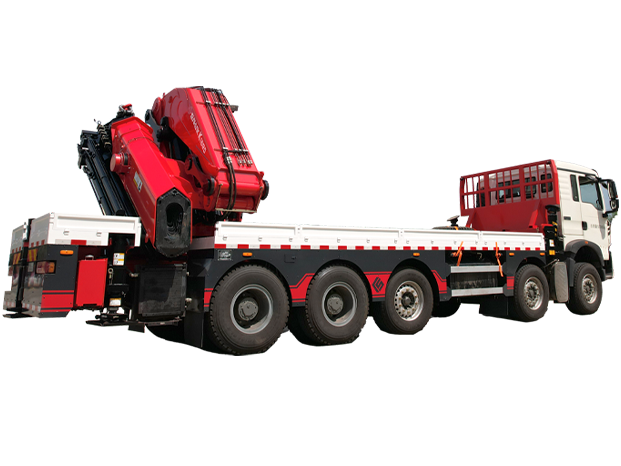

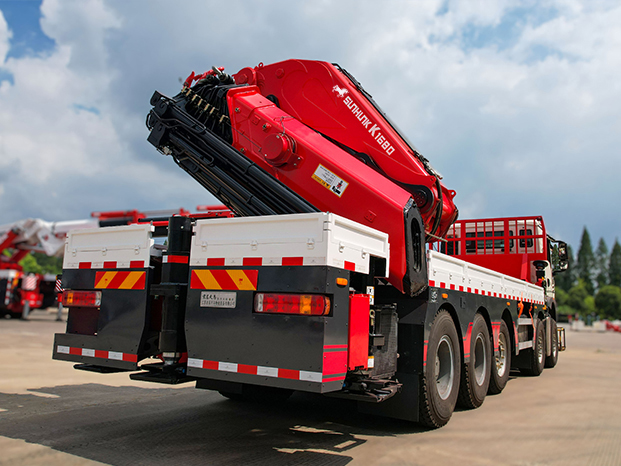

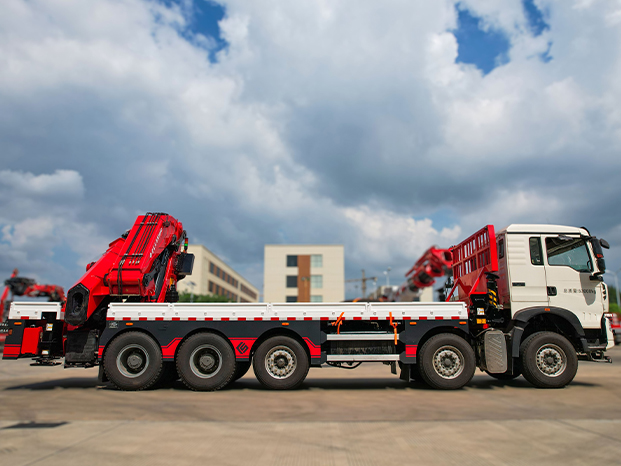

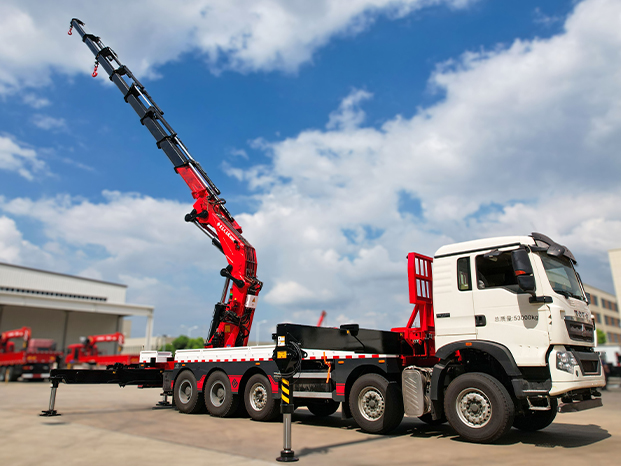

K1280
High Performance Crane
Rated load
60000kg
Rated lifting capacity
120t.m
Max. working range
18.7m
Inquiry
  • Characteristic
  • Parameter
  • Case
Professional customization, preferred in the industry.


♦ Multiple optional configurations are available to easily meet individual customization needs.


♦ With reference to international standards, good expandability is ensured.


♦ The structure is compact and uses high-strength steel, resulting in a lighter overall weight.


♦ Advanced hydraulic system improves the speed of the boom's extension and achieves anti-vibration, multi-action linkage, and proportional action functions of the boom.

Product Parameters
Key Parameter
Rated load
Rated lifting capacity

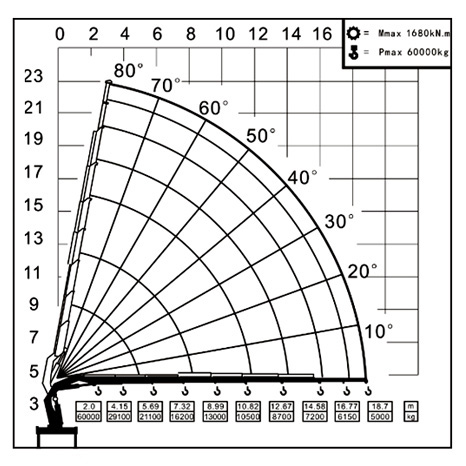

Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
60000kg
120t.m
18.7m
22.2
8
80
360
8170
108
18000
32
Engineering Cases
Narrow Cave Rescue
Narrow Cave Rescue
In a narrow cave rescue operation, a truck crane is unable to enter the narrow entrance of the cave to carry out the rescue operation. The SUNHUNK 4500, with a height of only 3.5 meters and powerful lifting capacity, is capable of easily completing the rescue mission in this situation.
Workshop crane installation
Workshop crane installation
In a workshop crane installation, due to the limited height of the workshop, a truck crane is unable to lift the load. The owner then arranges two large-tonnage SUNHUNK cranes to work together and complete this lifting task.
