Products > Truck Mounted Crane > Knuckle Boom Crane > K928

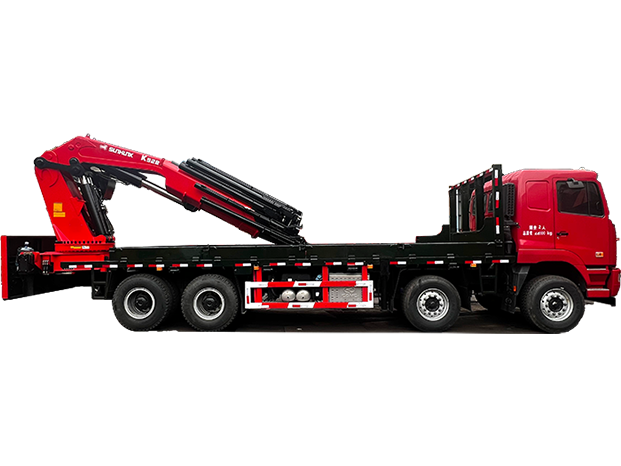

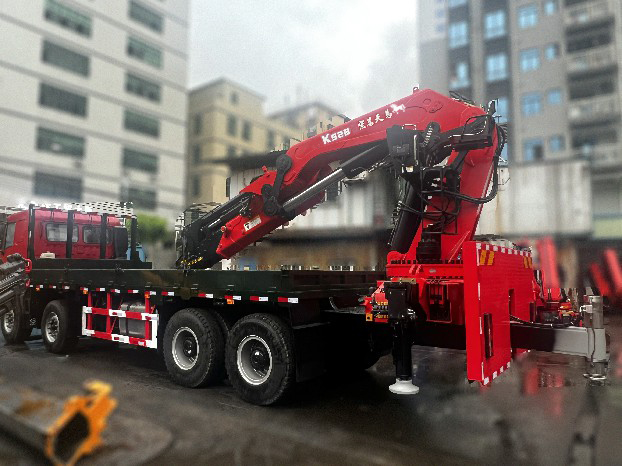

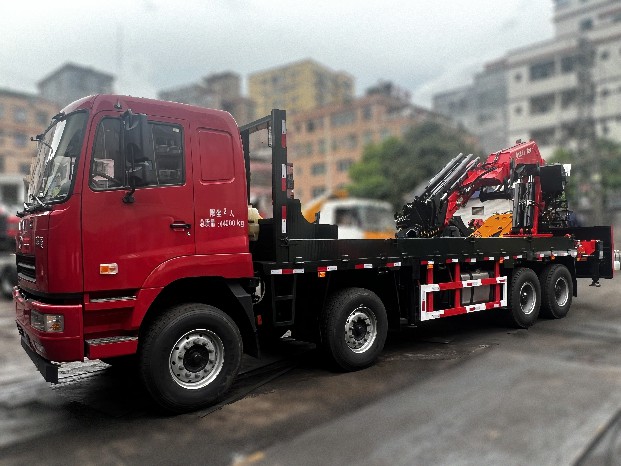

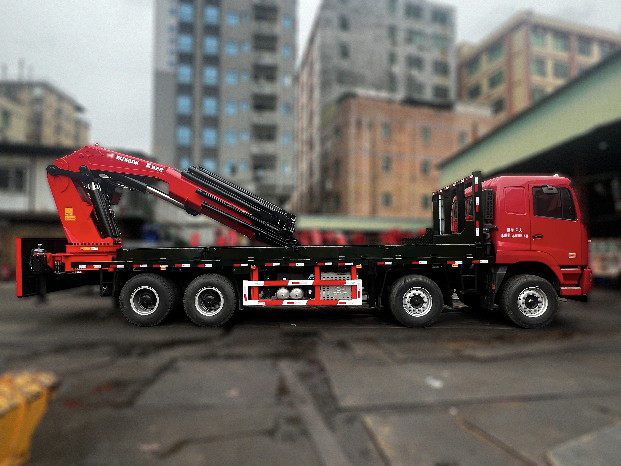

K928
Knuckle Boom Crane
Rated load
45000kg
Rated lifting capacity
90t.m
Max. working range
20.1m
Inquiry
  • Characteristic
  • Parameter
  • Case
Professional Moving, Industry Customization


♦ Multiple optional configurations to meet personalized customization needs.


♦ Designed according to international standards, with good expandability and versatility.


♦ Compact structure, applied high-strength steel, resulting in lighter overall weight.


♦ optional wireless remote control system

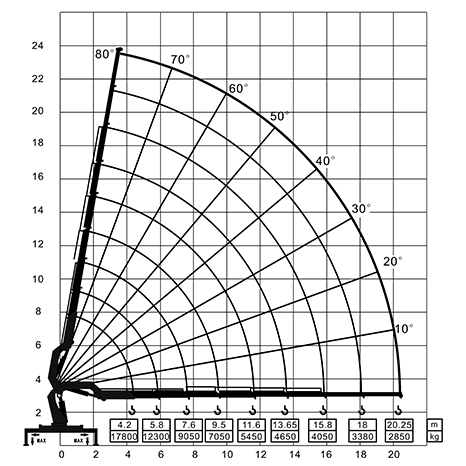

Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height（m）
Number of boom sections（sections）
Maximum angle of elevation（°）
Swing angle（°）
Support leg spread（mm）
System displacement（L/min）
Crane self-weight（kg）
System rated pressure（mpa）
Parameter Value
45000kg
90t.m
20.1m
23.6
8
80
360
80~100
9387
30
Engineering Cases
High-voltage line railway construction
High-voltage line railway construction
During the railway installation process, it is necessary to lift the railway modules from the side to the designated location under high-voltage lines. The 4500 fully extended boom is 23.4 meters long, and it can lift 12 tons, which perfectly meets the working conditions.
Factory Equipment Lifting
Factory Equipment Lifting
Mr. Chen from Zhengzhou, Henan used our 728 to complete the installation of the equipment within the confined space of the factory. The equipment weighs around 6 tons. Advantage: A straight arm crane cannot handle this job due to the confined space.
