Products > Dump Truck > Semi trailer Dump truck > KB-TC1-CK

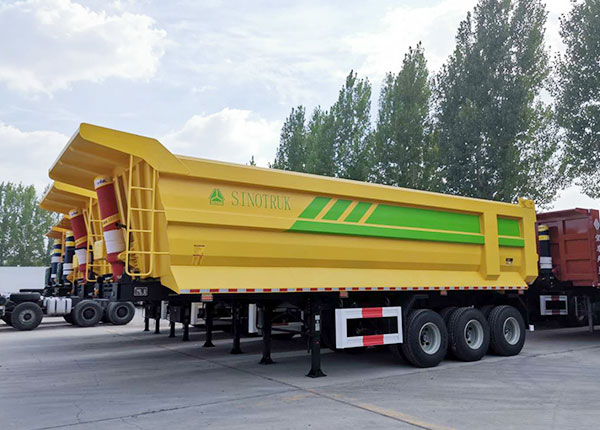

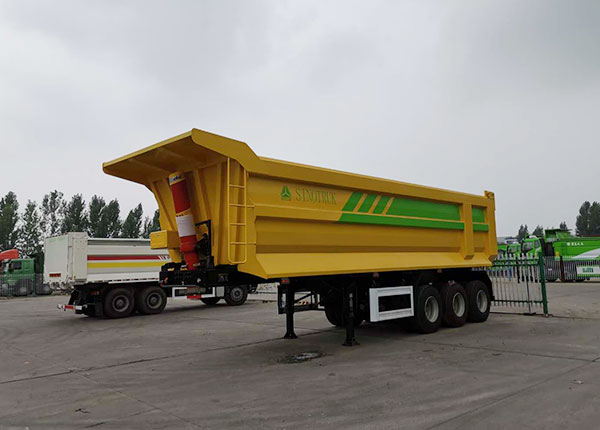

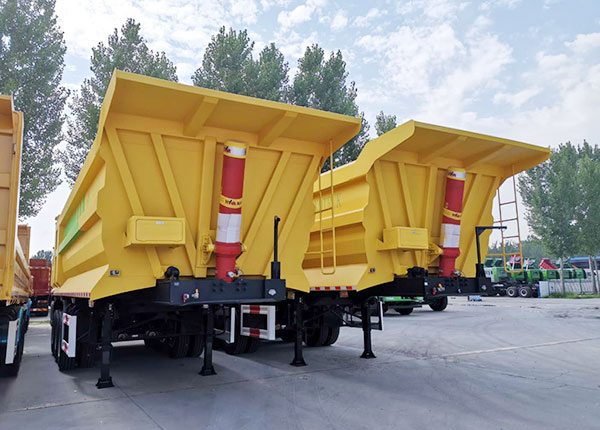

KB-TC1-CK
Semi trailer Dump truck
Carriage specification(mm)
9200*2700*1700
Material specification(mm)
10*8
Material type
K450*K450*K450
Applicable Working Conditions
  • Characteristic
  • Parameter
  • Case
Light: Light weight and no deformation

♦ Light structure: 2 longitudinal beams + high-strength steel for the whole vehicle, resistant to torsion and deformation;

♦ Light hydraulic system: “X” power hydraulic system, lighter;

♦ Light accessories: Aluminum alloy protection and toolbox structure;


Speed: Lifting steadily and unloading fast

♦ Fast lifting: “X” power hydraulic system is faster, more stable and more synchronous;

♦ Fast unloading: BFS600 stainless steel bottom plate is adopted for a faster unloading;

♦ Fast service: Service system of Fast, Satisfied and Whole-hearted Service by Sunhunk;


Powerful: Strong structure, good craftsmanship, sturdy and durable

♦ Powerful body: Keel frame+ stamping forming, lifting can be made without deformation;

♦ Powerful craftsmanship: Three times of adjustment and three times of positioning, three times of fine adjustment of the braking system + three times of fine adjustments of axle positioning, the guarantee is made with the ingenious craftsmanship;

♦ Powerful stability: Sunhunk Tianma walking system is more stable and reliable;

♦ Powerful materials: Super wear-resistant steel, super high-strength steel, with an excellent quality;


Intelligent: Intelligent assistance, safe and reliable

♦ Alert: The alignment system of the main trailer, the roll risk can be predicted in advance;

♦ Sensitive: Intelligent driving assistance system, avoiding the risk of blind spots and making it safer;

♦ Intelligence: Locking device of self-opening side door;


Product Parameters
Key Parameter
Structure type
Carriage specification(mm)
Material specification(mm)
Material type
Hydraulic Cylinder(mm)
Working condition
For the road
Transportation medium
Auxiliary equipment
Parameter Value
KB-TC1-CK
9200*2700*1700
10*8
K450*K450*K450
5-214*7130
Mining area transportation
Soft foundation pavement
ores, Iron sand
centralized lubrication system, guide skateboard
