Products > Truck Mounted Crane > Stiff Boom Crane > S1606

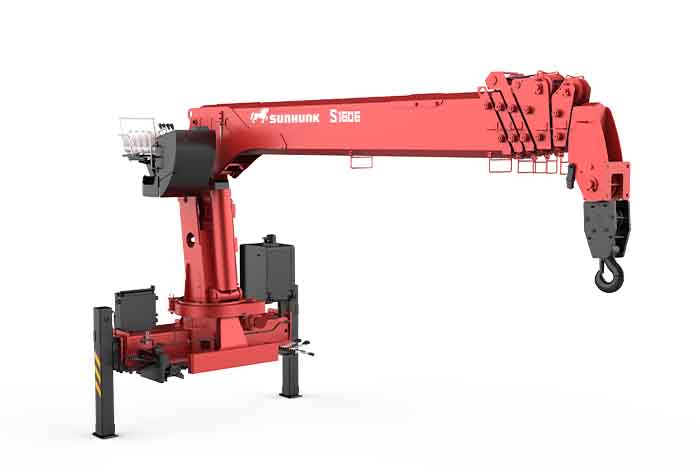

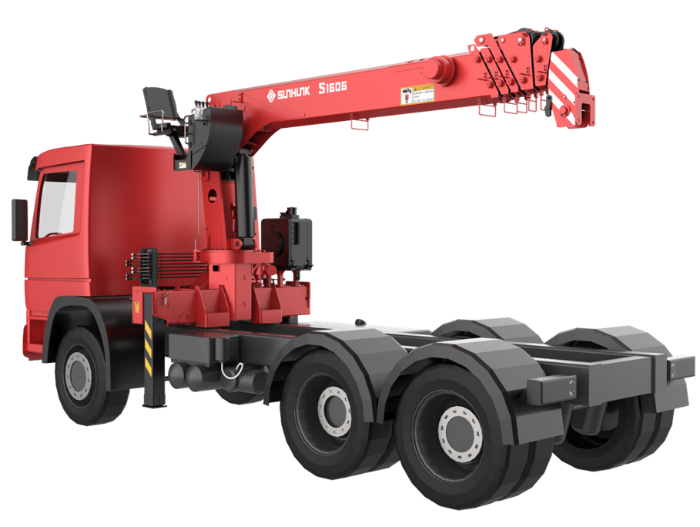

S1606
Stiff Boom Crane
Rated load
6400kg
Rated lifting capacity
16t.m
Max. working range
18.8m
  • Characteristic
  • Parameter
SUNHUNK Straight Boom Cranes

1、The key structural components are welded with Q690 high-strength steel plate, which has high strength and light weight.


2、The boom is an enhanced hexagon structure with stable telescoping and a lifting capacity 20% stronger than conventional hexagon structures.


3、The boom telescoping mechanism is imported with a three-stage cylinder and rigging telescoping, sequential extension, and the first two telescoping arms are driven by independent cylinders. The medium and short arms have strong load-bearing telescoping capabilities.


4、The maximum operating range is 18.8 meters, which is the largest in the industry for the same tonnage and has strong cross-obstacle capabilities.

5、The standard configuration includes a torque limiter (which can be overridden) for higher safety.


6、The main moving parts and electrical and hydraulic components can work in low temperatures (-40°C), with stronger adaptability.


7、The standard configuration includes high-pressure filters to improve the cleanliness of hydraulic oil and extend its service life.


Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
6400kg
16t.m
18.8m
20.65
5
75
360
63
3300
23
