Products > Truck Mounted Crane > Stiff Boom Crane > S2106

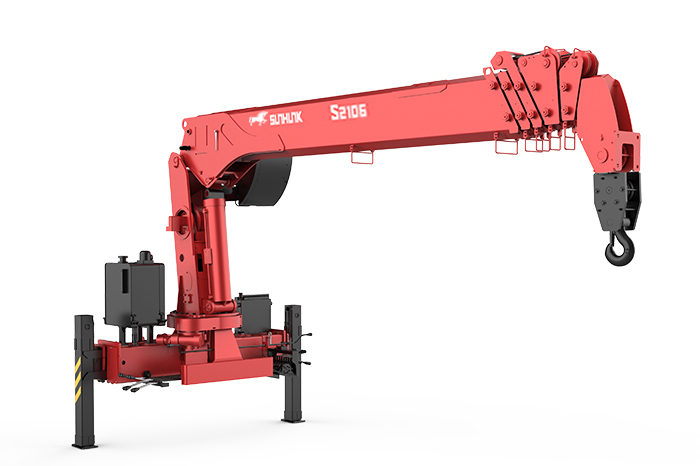

S2106
Stiff Boom Crane
Rated load
7600kg
Rated lifting capacity
19t.m
Max. working range
20.3m
  • Characteristic
  • Parameter
SUNHUNK Straight Boom Cranes

1、The key structural components are welded with Q690 high-strength steel plate, which has high strength and light weight.


2、The slewing reducer has a rated torque of 4220 N.m, which is the highest torque among its peers, providing stronger operational capability.


3、The boom is an enhanced hexagon structure with stable telescoping and a lifting capacity 20% stronger than conventional hexagon structures.


4、The boom telescoping mechanism is imported with a three-stage cylinder and rigging telescoping, sequential extension, and the first two telescoping arms are driven by independent cylinders. The medium and short arms have strong load-bearing telescoping capabilities.


5、The maximum operating range is 20.3 meters, which is the largest in the industry for the same tonnage and has strong cross-obstacle capabilities.


6、Double-stage legs, with a span of 5.8 meters, provide higher stability for the entire vehicle.


7、The main moving parts and electrical and hydraulic components can work in low temperatures (-40°C), with stronger adaptability.


Product Parameters
Key Parameter
Rated load
Rated lifting capacity
Max. working range
Maximum lifting height(m)
Number of boom sections(sections)
Maximum angle of elevation(°)
Swing angle(°)
Support leg spread(mm)
System displacement(L/min)
Crane self-weight(kg)
System rated pressure(mpa)
Parameter Value
7600kg
19t.m
20.3m
22.5
5
80
360
63
3500
23
