Products > Truck Mounted Crane > Accessory customization > J10 Flying arm

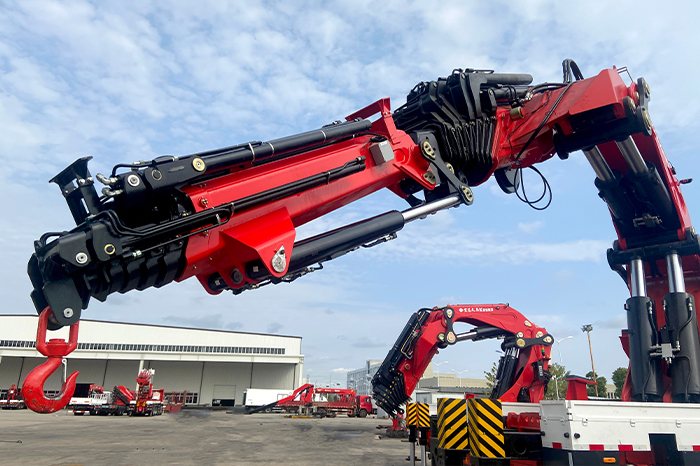

J10 Flying arm
Accessory customization
Rated lifting moment(kN.m)
160
Rated lifting capacity
7900
Maximun working range(m)
11.1
  • Characteristic
  • Parameter
J10 Flying arm


1. New generation lightweight platform, high starting point;




2. Equipped with multiple connecting arms, compatible with various tonnage cranes;




3. Assembly is simple and fast, without the need for auxiliary equipment;




4. Four link variable amplitude mechanism with a negative angle of 15 °, wide application range, and flexible operation;




5. Hexagonal single board bending technology for crane arm, more sturdy and durable;




6. The boom has fast telescopic speed and high operational efficiency;


Product Parameters
Key Parameter
Rated lifting moment(kN.m)
Rated lifting capacity
Boom sections
Maximun working range(m)
Boom raising angle(°)
Operating pressure(MPa)
Rated flow of system(L/min)
Dead weight(kg)
Parameter Value
160
7900
6
11.1
10~195
33
40
1600
