Products > Truck Mounted Crane > High Performance Crane > H4680

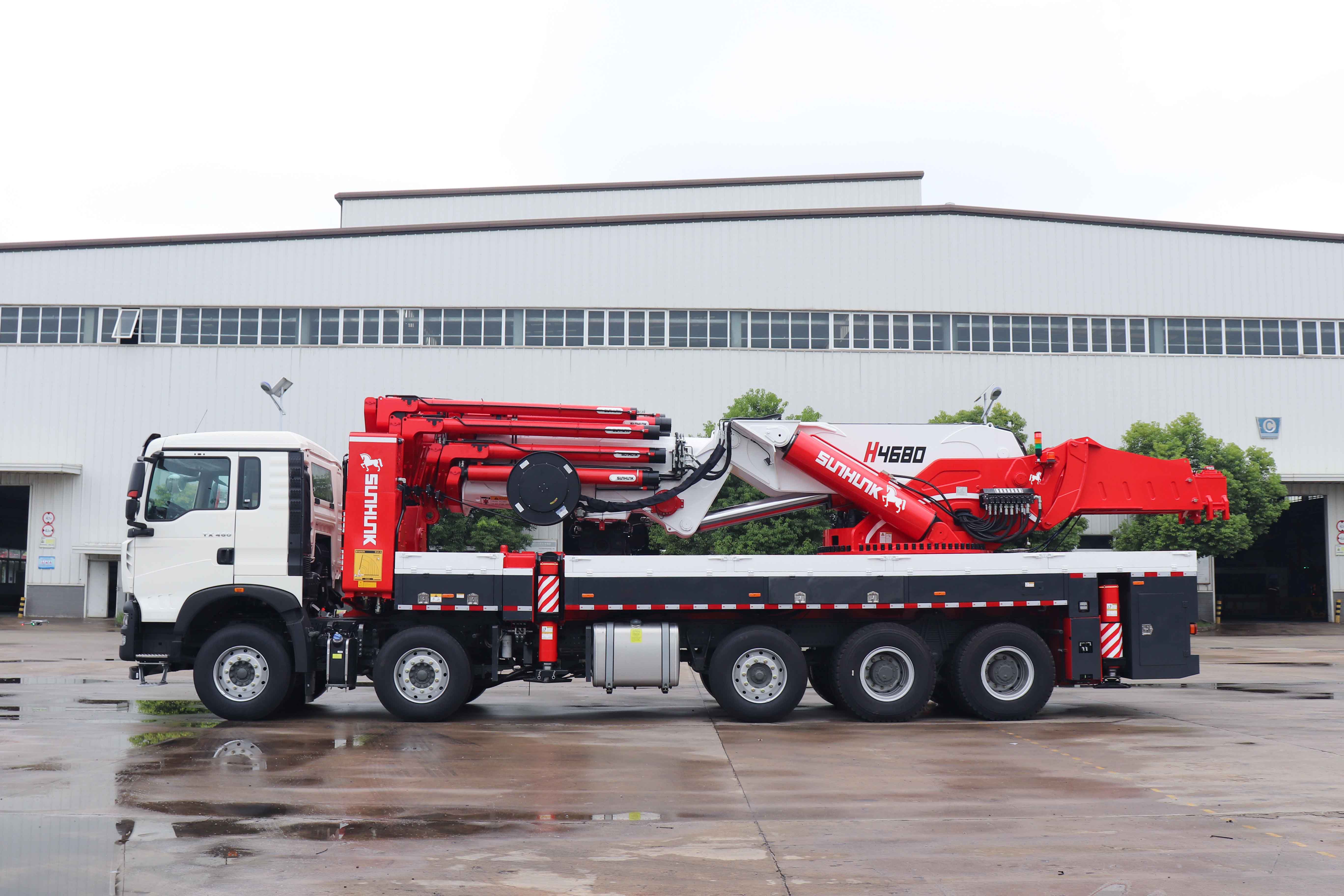

H4680
High Performance Crane
Max. Lifting Capacity
150000kg
Rated Lifting Moment
468t.m
Max. Working Radius
24.1m
Inquiry
  • Characteristic
  • Parameter

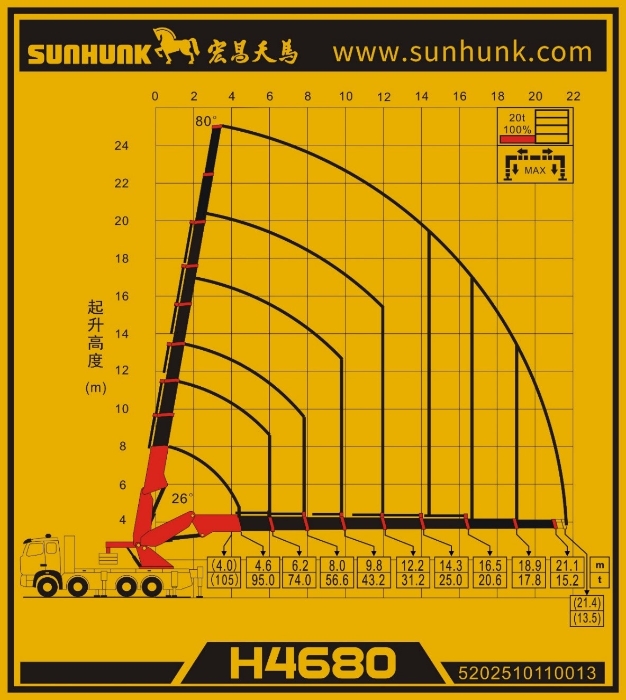

HIGH PERORMANCE CRANE-4680

  1. Strong lifting capacity

    Strong thrust capacity, maximum lifting capacity of 105 tons, 3-section boom lifting capacity of 80 tons.

  2. Window entry tool

    Built-in 7-8 extension oil cylinder, arm head height occupation is reduced by 500mm.

  3. Balanced layout

    The rear axle does not exceed the axle load, has strong steering grip, and the rear axle does not blowout.


Product Parameters
Key Parameter
Max. Lifting Capacity
Rated Lifting Moment
Max. Working Radius
Max. Lifting Height
Boom Sections
Max. Elevation Angle
Slewing Angle
Outrigger Span
System Flow Rate
Crane Dead Weight
Rated System Pressure
Parameter Value
150000kg
468t.m
24.1m
27.2m
8
80°
Continuous
7850/7850mm
145+50L/min
46400kg
33MPa
