In Europe, where construction sites face space constraints and complex working environments, traditional truckmounted cranes often struggle due to their bulky size and limited flexibility. SUNHUNK’s new crane, unveiled at the Bauma Munich Expo, has captured significant attention with its compact design, exceptional load capacity, and adaptability—positioning it as a gamechanging solution.

 1. Compact Design for Unrestricted Access

 Overall dimensions: Height of just 3.17 meters and length of 10 meters, allowing easy navigation through lowceiling facilities, heightrestricted bridges, and Europe’s narrow streets.

 Smaller turning radius compared to conventional cranes, enabling agile maneuvering in tight job sites and minimizing logistical challenges.

 2. HeavyDuty Performance for Enhanced Efficiency

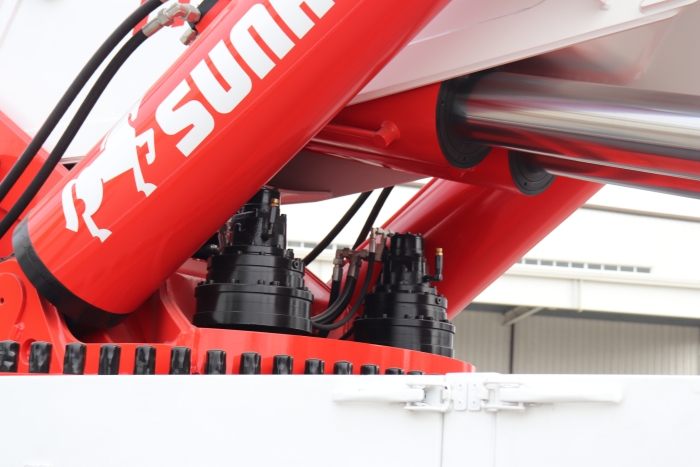

 Equipped with two hightorque Europeanmade slewing reducers, plus a preinstalled mounting position for a third reducer, ensuring stability and durability under heavy loads.

 Maximum lifting capacity of 80 tons, ideal for demanding tasks like wind turbine installation, steel structure handling, and construction material transport.

 3. Versatility for Complex Applications

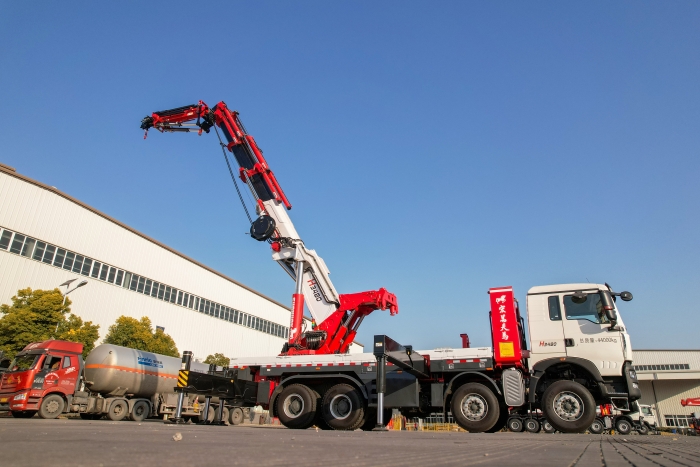

 Standard 8section hydraulic telescopic boom with a maximum working radius of 21.3 meters, tackling longdistance lifting with ease.

 Optional builtin design for the 7th and 8th boom sections, reducing the boom head size by 1/3 to enhance maneuverability in confined spaces and prevent collision risks.

 4. Stability and Safety First

 Largespan twostage hydraulic outriggers with spans of 8,190mm / 7,858mm, providing a rocksolid foundation to prevent tipping.

 Compliant with EU safety standards (EN 13000), featuring overload protection, emergency braking systems, and other safeguards to protect operators and worksites.

“In Europe, customers demand equipment that is efficient, safe, adaptable, and fully compliant—this is the core of SUNHUNK’s design philosophy.”

—SUNHUNK Technical Director

Visit us at Booth FN921/6 to experience this ‘small but mighty’ crane firsthand!

Our engineers will demonstrate its operation and address all technical inquiries.
