In the construction machinery arena, truck-mounted cranes are core equipment in the lifting industry and always a market focus.

As an all-scenario lifting expert, SUNHUNK has developed a series of heavy-duty star products that provide full-working-condition solutions for customers.

Each model is a market-proven “profit-making tool”.

This collection deeply analyzes the core advantages of SUNHUNK’s five star products to help you find the perfect match!

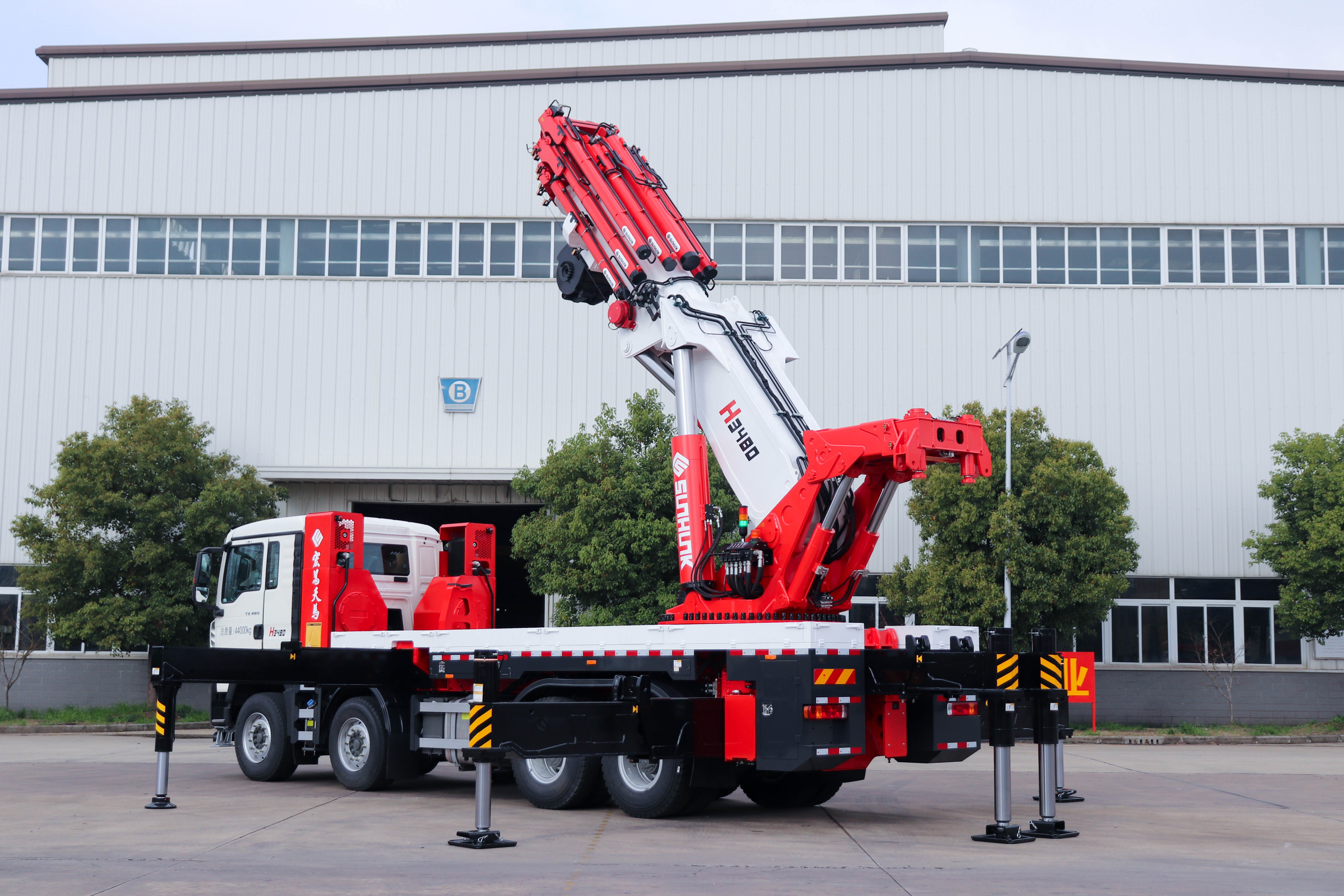

H3480 Compact 4-Axle — Flexible, Agile, All-Round Powerhouse

The H3480 is a benchmark model independently developed by SUNHUNK, with a tough appearance and flexible operation, earning it the title of “4-axle small steel cannon”.

• Height: 3.2m, Length: 10m, small turning radius

• Outrigger span: up to 8190/7858mm

• Lifting performance: 80t at 4.3m; 9t at full extended boom 21.3m

• 7th & 8th boom cylinders built-in, boom head to hook height reduced to 1.3m for easy window access

Highly recognized by the market and customers, it won the “Top 10 Construction Machinery Industry • Star Intelligent Equipment Award” in 2024.

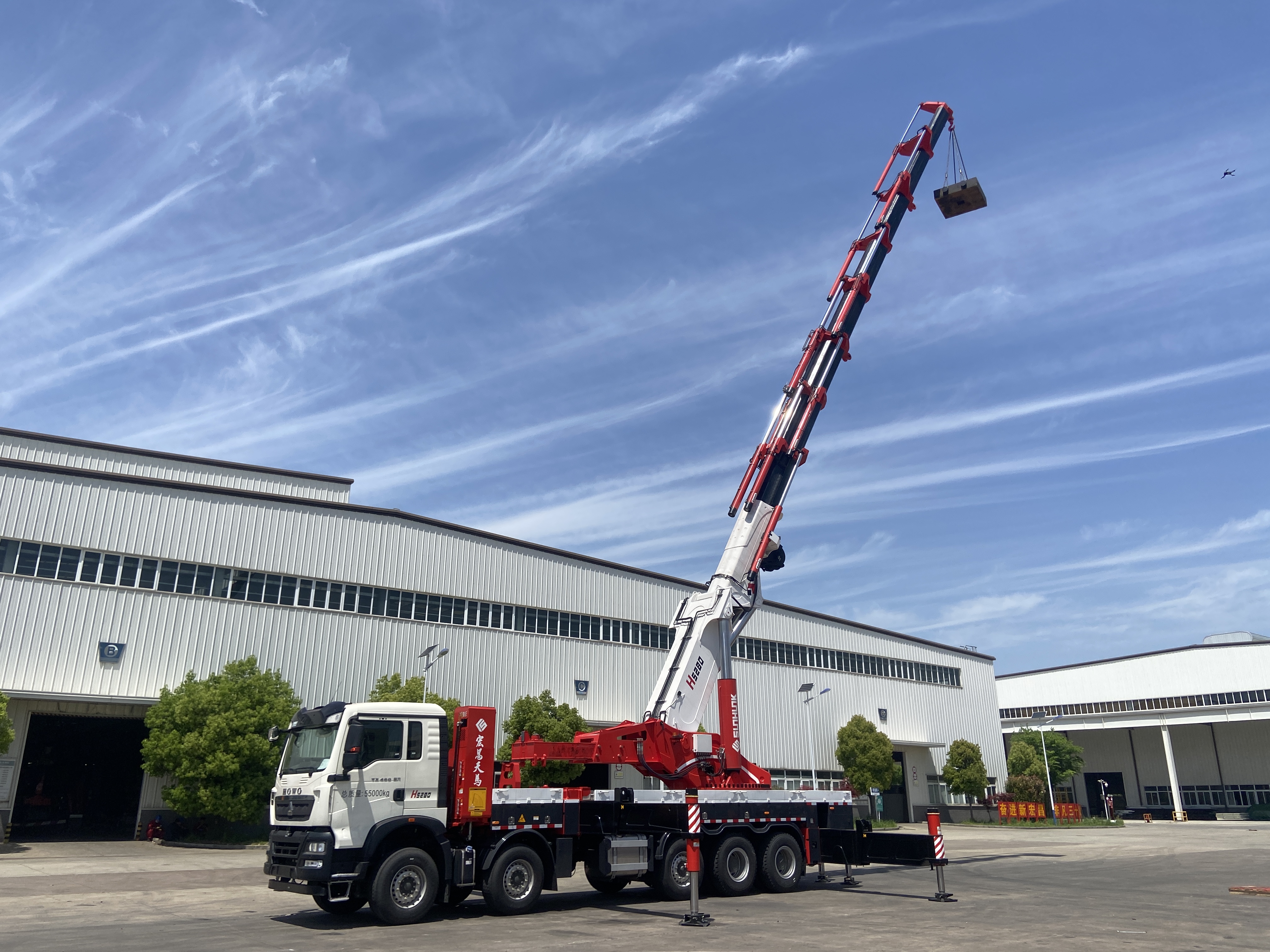

H5280 Full-Range Operation — SUNHUNK’s Longest Heavy-Duty Semi-Articulated Boom

SUNHUNK’s longest heavy-duty model H5280 features a 27m ultra-long main boom.

With J40 fly jib, full extended length reaches 45.5m, height up to 48m, ideal for high and long-distance lifting.

• Max lifting capacity: 130t; max side lifting: 110t; 9.5t at 27m full horizontal boom

• High-torque triple swing reducers for greater torque capacity and safer operation

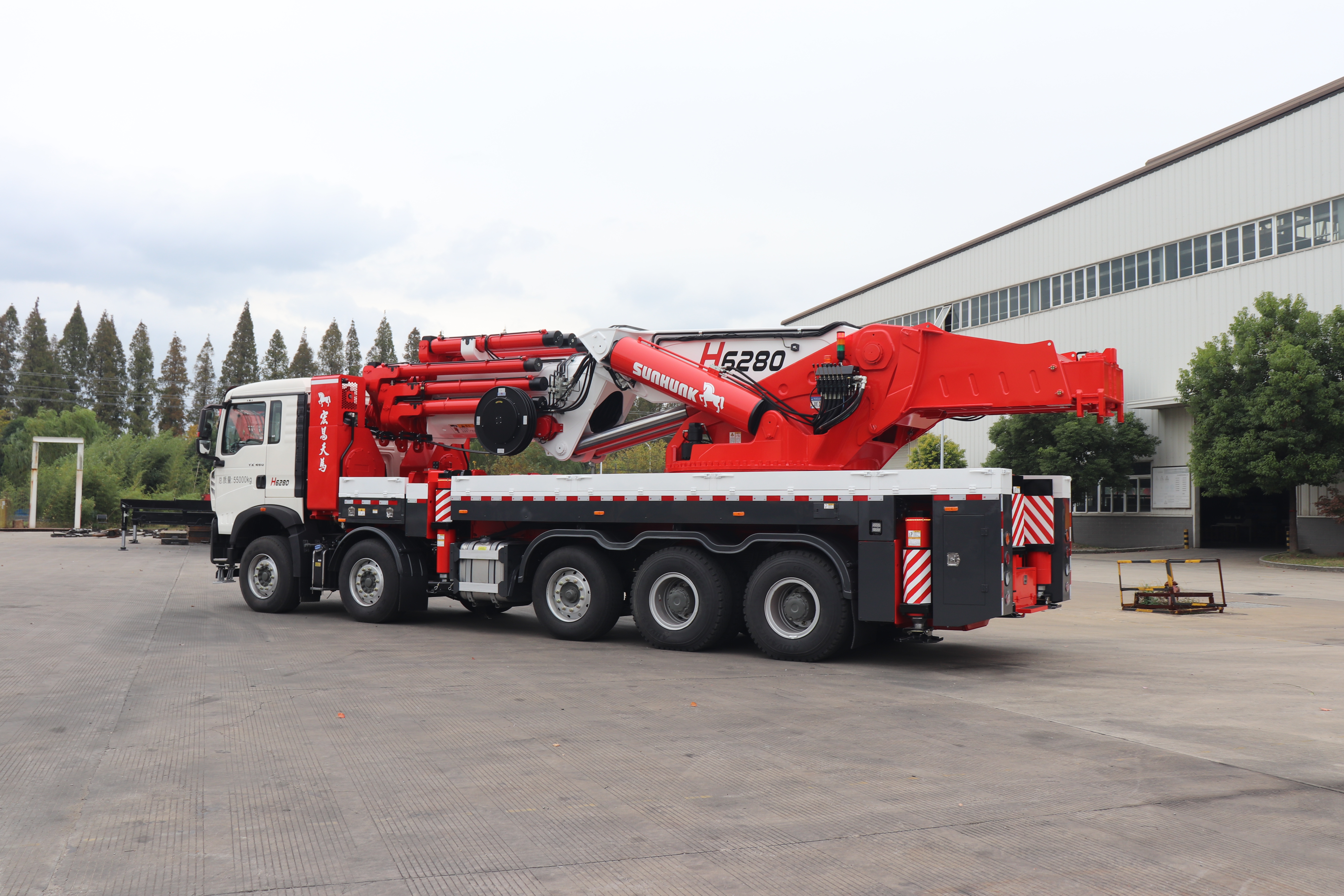

H6280 Short-Wheelbase 5-Axle — Light Lifting for Heavy Loads, 100-Ton High & Long Lifting Champion

SUNHUNK’s best-selling 100-ton champion H6280 integrates reliability, economy, safety and adaptability.

• Dimensions: 11.3m(L) × 2.55m(W) × 3.4m(H)

• Can carry 1t tools without overweight even without counterweight

• Lifting performance: max 150t; 115t at 4.9m; max side lifting 100t

• Dual variable pump + gear pump system for high efficiency

• Sinotruk Howo 5-axle China Ⅵ chassis, 55t announcement for highway legal travel

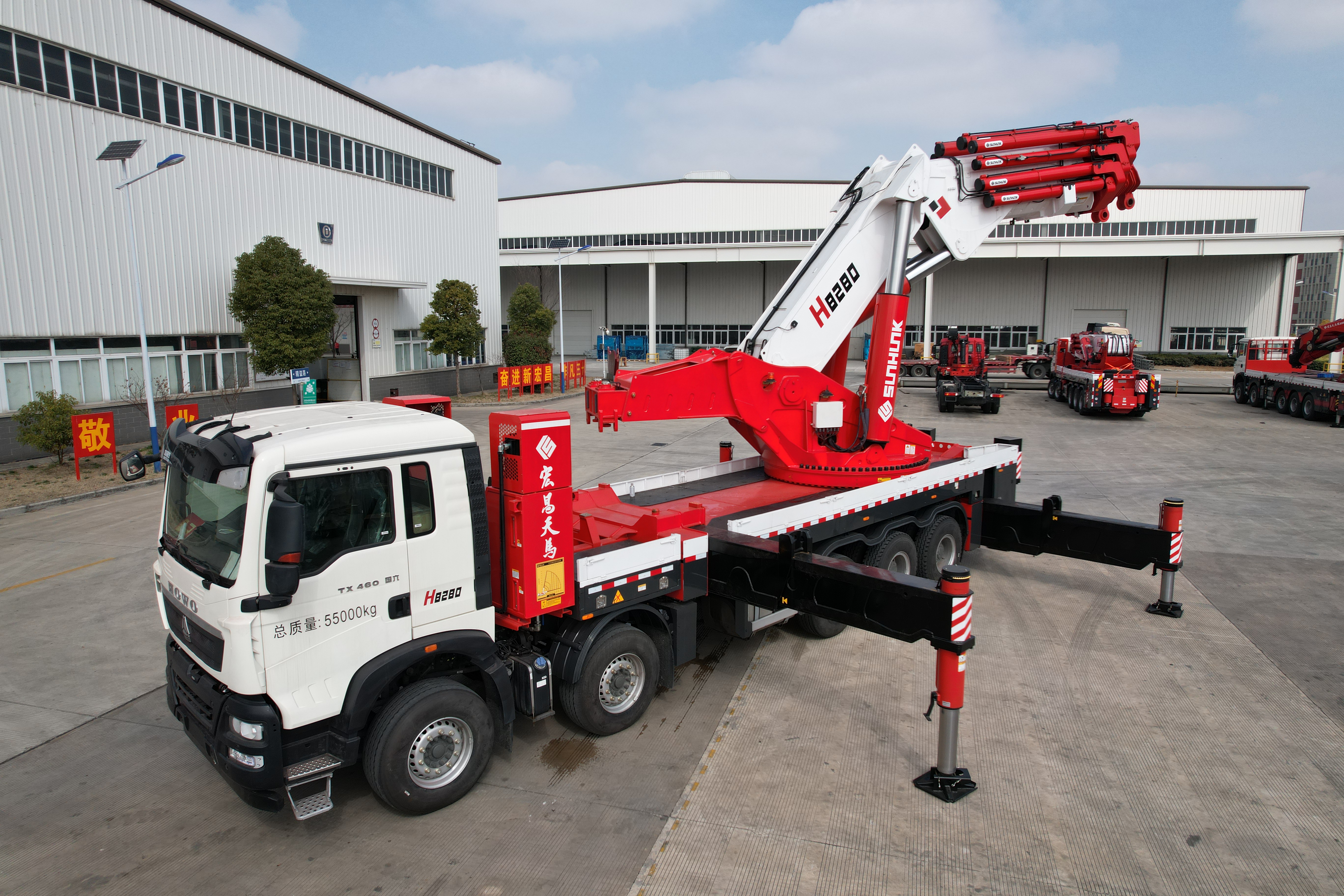

H8280 Ultra-Heavy Lifting — SUNHUNK’s Strongest Load Capacity

SUNHUNK’s first 828T·m extra-heavy duty compliant truck crane H8280.

• 3-pump confluence technology for high efficiency

• Triple swing reducers for outstanding stability

• Integrated box-girder design supports 360° lifting

• Lifting performance: max tail lifting 185t; 125t side lifting at 7m; 85t with 4-section dual push

• Capable of independently installing press machines under 2000t

• Weight without counterweight/winch: 55t; 5th & 6th boom quick dismount for legal travel with 3t tools

K2680 All-Round Building Equipment Lifting — SUNHUNK’s Largest Fully Articulated Crane

A dual-purpose model for lifting and cargo transport, SUNHUNK’s largest fully articulated K2680 adapts to diverse working conditions, handling 30–45t equipment and covering 60% of market scenarios.

• Lifting performance: 70t at 3.5m; 10t at 23m with fly jib; 5t at full 23m 10-section boom

• Optional 10-section hydraulic telescopic boom with built-in cylinder on 10th section for easy high-floor and indoor equipment installation

Choose SUNHUNK — Choose efficiency, reliability and profitability!
